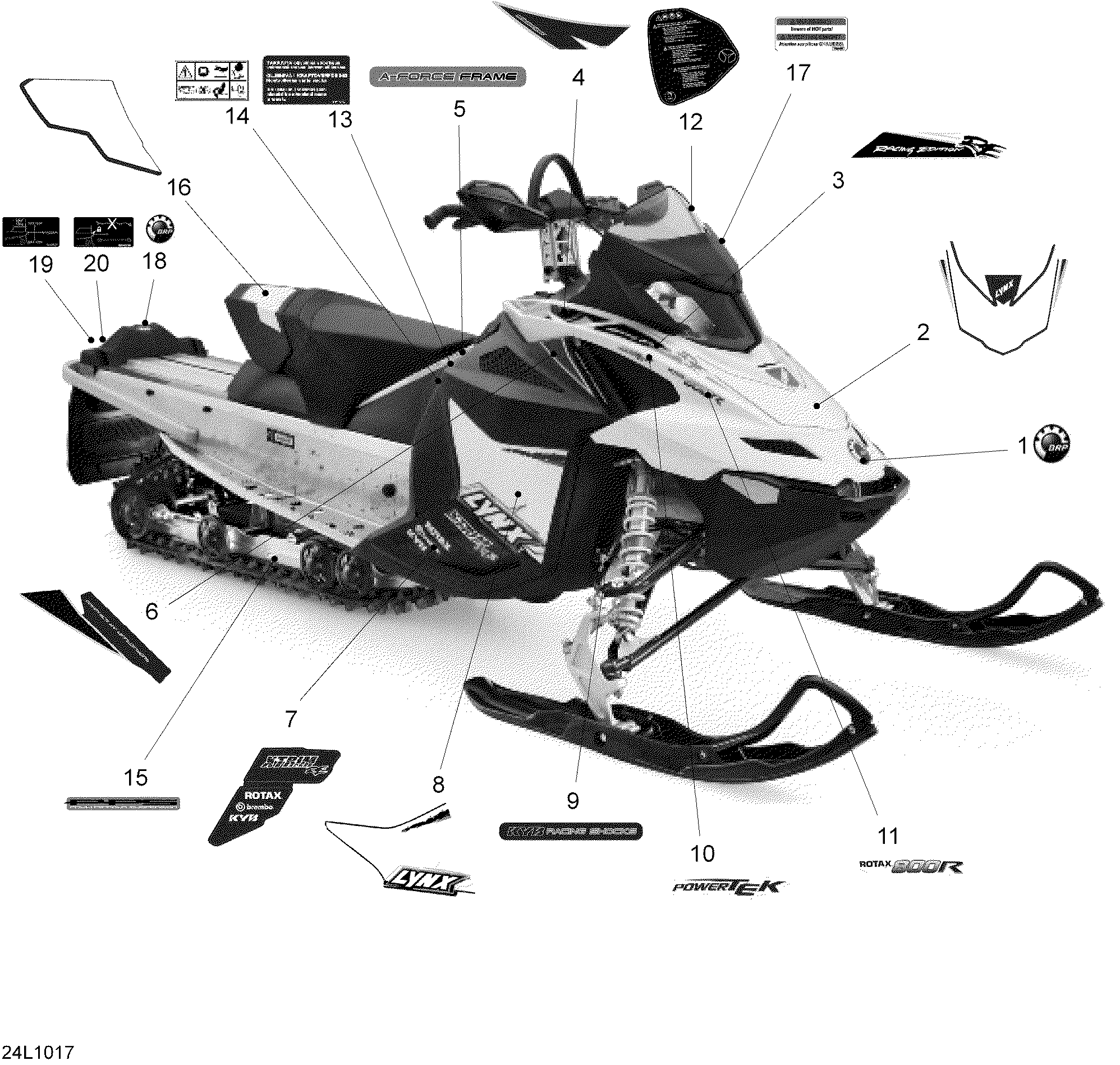

09- Decals для BRP Lynx Xtrim 800R PowerTEK - 2010
-
№АртикулНазвание
-
1219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
2516004183 Decal, Hood, ReDecal, Hood, Re
-
3516004184 Decal, Hood Left, ReDecal, Hood Left, Re
-
3516004185 Decal, Hood Right, ReDecal, Hood Right, Re
-
4516004186 Decal, Consol Left, Re-XcDecal, Consol Left, Re-Xc
-
4516004187 Decal, Consol Right, Re-XcDecal, Consol Right, Re-Xc
-
5516003824 Decal, A-Force Frame Tech. Re-XcDecal, A-Force Frame Tech. Re-Xc
-
6516004181 Decal, Sidepanel Right Up, ReDecal, Sidepanel Right Up, Re
-
6516004182 Decal, Sidepanel Left Up, ReDecal, Sidepanel Left Up, Re
-
7516004272 Decal, Sidepanel Left Down, XtrimDecal, Sidepanel Left Down, Xtrim
-
7516004273 Decal, Sidepanel Right Down, XtrimDecal, Sidepanel Right Down, Xtrim
-
8516004179 Decal, Sidepanel Left Up, ReDecal, Sidepanel Left Up, Re
-
8516004175 Decal, Sidepanel Right Up, ReDecal, Sidepanel Right Up, Re
-
9516004170 Decal, Kyb- Racing ShocksDecal, Kyb- Racing Shocks
-
10516004169 Decal, PowertekDecal, Powertek
-
11516004166 Decalque Capot *Hood DecalDecalque Capot *Hood Decal
-
12516004189 Label En/Fi/SweLabel En/Fi/Swe
-
135447012 Checking Label, Oil Fi/Se/EngChecking Label, Oil Fi/Se/Eng
-
14516003919 Warning DecalWarning Decal
-
15605454883 Pps- DecalPps- Decal
-
16516004268 Decal, Cargobox Left, Xtrim 800Decal, Cargobox Left, Xtrim 800
-
16516004269 Decal, Cargobox Right, Xtrim 800Decal, Cargobox Right, Xtrim 800
-
17516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
18219902544 BRP Logo, 48 mmBRP Logo, 48 mm
-
195447931 Decal, Weight/Pulling ForceDecal, Weight/Pulling Force
-
20605448799 Pulling Bar DecalPulling Bar Decal
