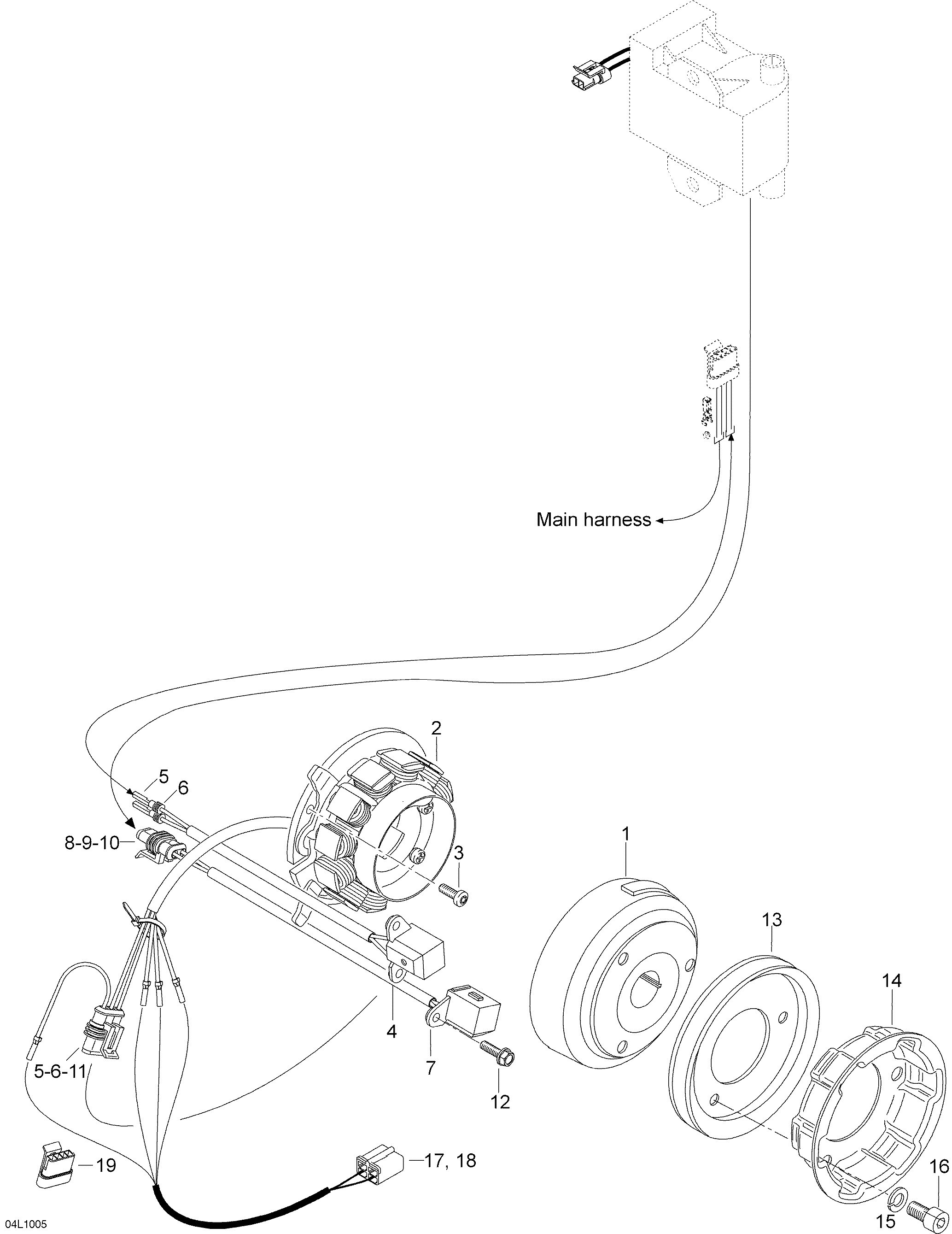

03- Magneto для BRP Lynx YETI Pro 550 - 2010
-
№АртикулНазвание
-
1420889376 FlywheelFlywheel
-
2420889369 Stator Plate AStator Plate A
-
3420641521 ScrewScrew
-
4420665162 Pick-Up. Includes 4 to 6Pick-Up. Includes 4 to 6
-
5278001014 Female TerminalFemale Terminal
-
6278001013 Wire SealWire Seal
-
7420665160 Pick-Up. Includes 7 to 10Pick-Up. Includes 7 to 10
-
8409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
9278001014 Female TerminalFemale Terminal
-
10278001013 Wire SealWire Seal
-
11409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
12420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
13420980486 V-Belt PulleyV-Belt Pulley
-
14420852414 Rope SheaveRope Sheave
-
15420845311 Lock WasherLock Washer
-
16420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
17278001473 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
18278001474 Female Lock, 4 CircuitsFemale Lock, 4 Circuits
-
1942618 Male connector housing (4 circuit)Male connector housing (4 circuit)
