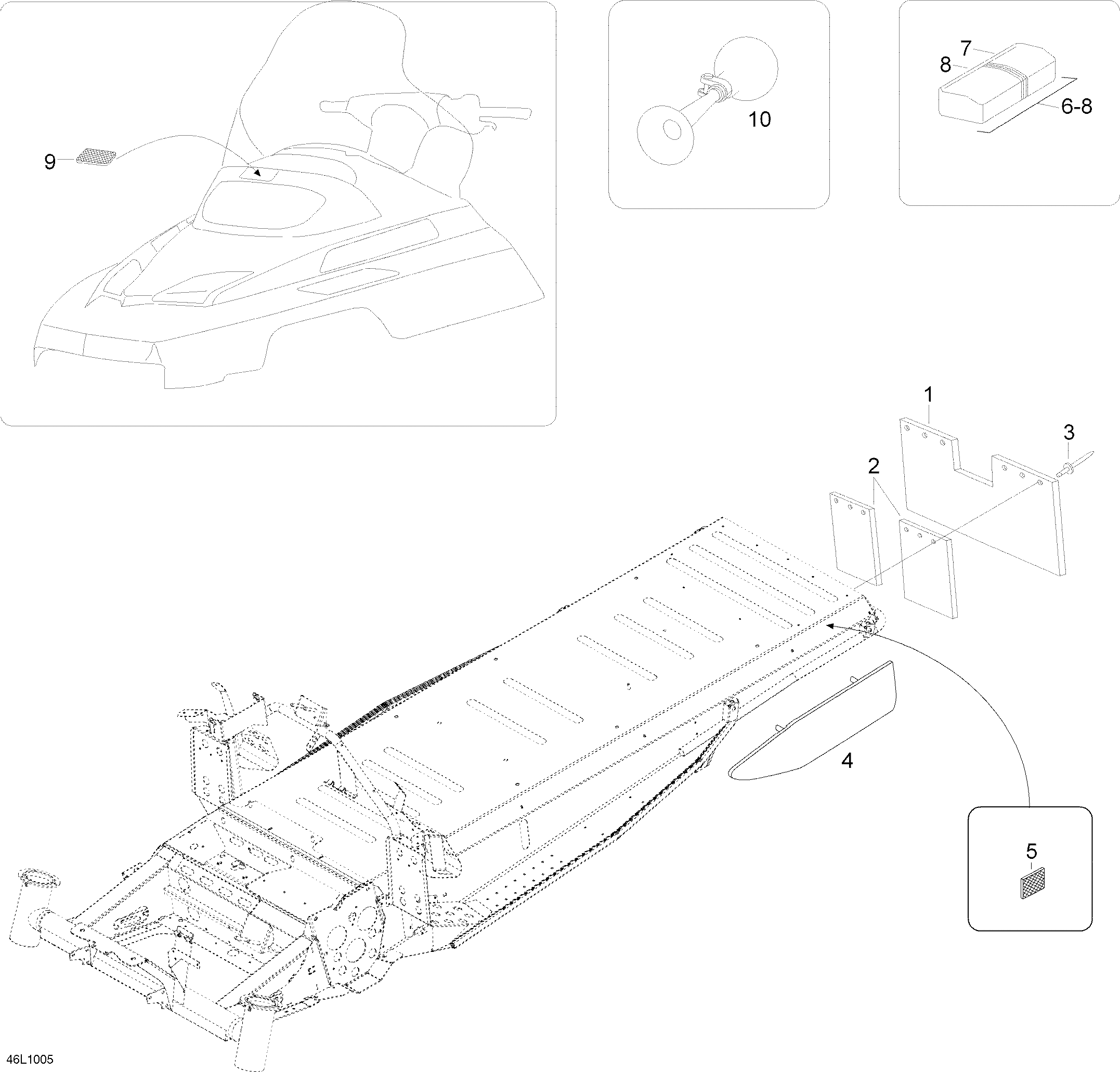

09- Utilities для BRP Lynx YETI Pro 550 - 2010
-
№АртикулНазвание
-
1605354719 Snow guardSnow guard
-
2605355316 SupportSupport
-
336037 RivetRivet
-
4605354746 LH Side Snow GuardLH Side Snow Guard
-
4605354747 RH Side Snow GuardRH Side Snow Guard
-
521121 Reflector (Yellow)Reflector (Yellow)
-
6605350525 Tool KitTool Kit
-
921118 Reflector (Bright)Reflector (Bright)
-
10549011291 HornHorn
Все узлы модели:
- 01- Crankcase
- 01- Crankshaft
- 01- Cylinder And Cylinder Head
- 01- Engine And Engine Support
- 01- Exhaust System
- 01-Fanhousing
- 02- Air Silencer
- 02- Carburetor
- 02- Fuel System
- 02- Oil Pump
- 02- Oil System
- 03- Magneto
- 04- Electric Starter
- 04- Electric Starter
- 04- Rewind Starter
- 05- Drive Axle And Track
- 05- Drive Pulley
- 05- Driven Pulley
- 05- Pulley System
- 05- Transmission
- 06- Brake
- 07- Front Suspension And Ski
- 07- Steering System
- 08- Rear Suspension
- 09- Bottom Pan
- 09- Decals
- 09- Frame
- 09- Hood
- 09- Rack
- 09- Seat
- • 09- Utilities
- 10- Electrical Accessories
- 10- Steering Harness
