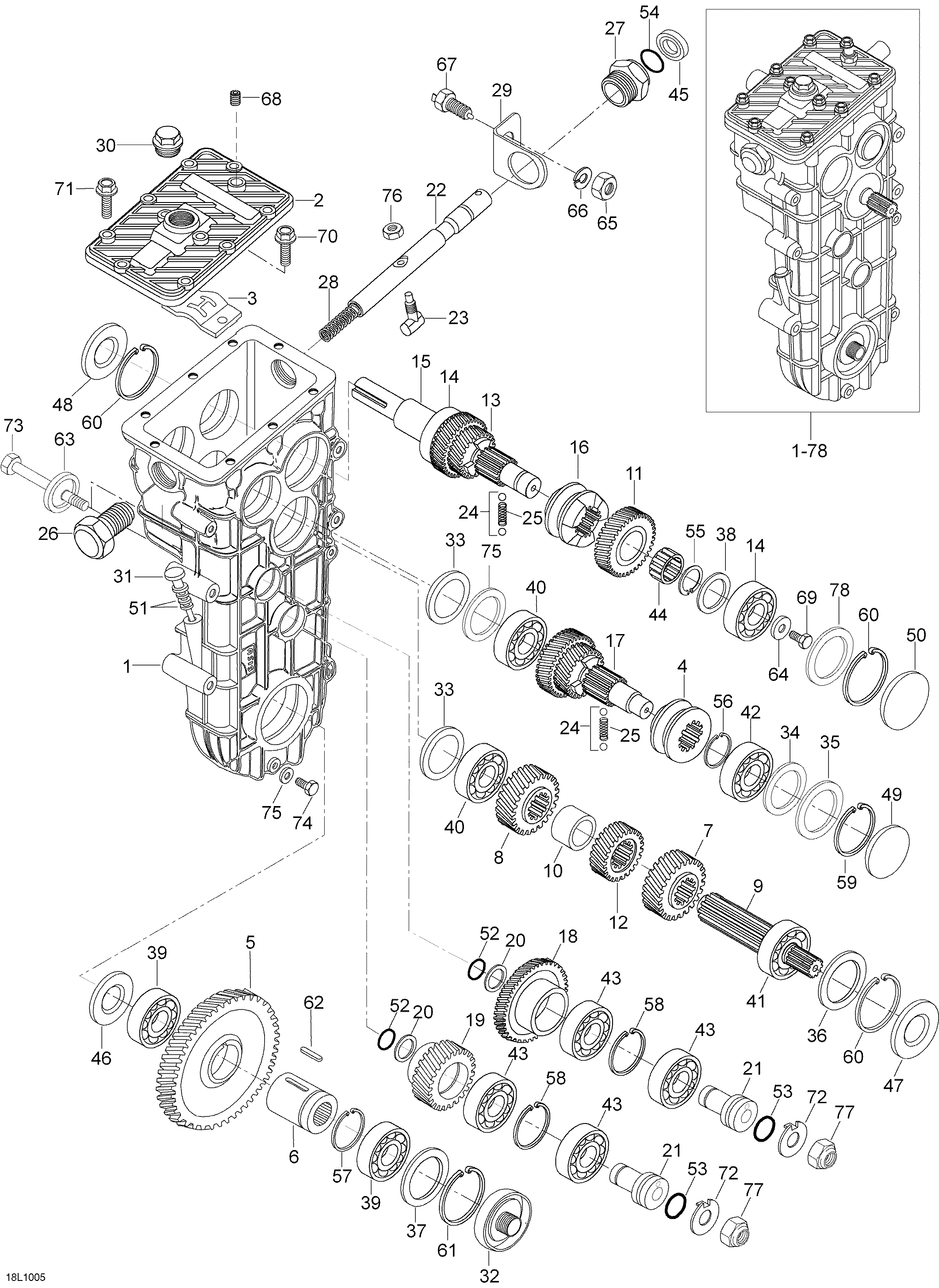

05- Transmission для BRP Lynx YETI Pro 550 - 2010
-
№АртикулНазвание
-
-605612003 Gear Box. Includes 1 to 77Gear Box. Includes 1 to 77
-
1875156138 HousingHousing
-
2875156043 CoverCover
-
3875156111 H-schemeH-scheme
-
4875156005 Wheel clutchWheel clutch
-
5875156057 Gear Z=59Gear Z=59
-
6875156218 ShaftShaft
-
7875156136 Sprocket (27 Tooth)Sprocket (27 Tooth)
-
8875156054 Sprocket (34 Tooth)Sprocket (34 Tooth)
-
9875156069 ShaftShaft
-
10875156088 SleeveSleeve
-
11875156135 Sprocket (29 Tooth)Sprocket (29 Tooth)
-
12875156060 Sprocket (24 Tooth)Sprocket (24 Tooth)
-
13875156155 Counter shaft. Includes 13 to 15Counter shaft. Includes 13 to 15
-
14610063050 Bearing 6305Bearing 6305
-
15875156153 SleeveSleeve
-
16875156005 Clutch wheelClutch wheel
-
17875156068 Reverse shaftReverse shaft
-
18875156059 Gear Z=33Gear Z=33
-
19875156058 Sprocket (26 Tooth)Sprocket (26 Tooth)
-
20875156328 RingRing
-
21619230005 ShaftShaft
-
22875156072 ShaftShaft
-
23875156073 PinPin
-
24616810064 BallBall
-
25875156105 SpringSpring
-
26875156076 SleeveSleeve
-
27875156077 SleeveSleeve
-
28875156078 SpringSpring
-
295346698 BracketBracket
-
30875156098 PlugPlug
-
31619230008 DipstickDipstick
-
32614100068 CoverCover
-
33875152953 Adjustment shimAdjustment shim
-
34617394352 Adjustment shimAdjustment shim
-
35617394252 Adjustment shimAdjustment shim
-
36617395065 Adjustment shimAdjustment shim
-
37617395568 Adjustment shimAdjustment shim
-
38616092542 WasherWasher
-
396008 BearingBearing
-
40610063044 Bearing 6304Bearing 6304
-
41610063050 Bearing 6305Bearing 6305
-
426304 Bearing 6303Bearing 6303
-
43612030303 BearingBearing
-
44611002529 Needle bearingNeedle bearing
-
45614102031 Oil sealOil seal
-
46614102852 Oil sealOil seal
-
47614102562 Oil sealOil seal
-
48614103562 Oil sealOil seal
-
49614100052 PlugPlug
-
50614100062 PlugPlug
-
51614600725 O-ringO-ring
-
52614601224 O-ringO-ring
-
53614602431 O-ringO-ring
-
54614601523 O-ringO-ring
-
55617450025 CirclipCirclip
-
56617450028 CirclipCirclip
-
57617300040 CirclipCirclip
-
58617330047 CirclipCirclip
-
5931002 CirclipCirclip
-
60617330062 CirclipCirclip
-
61617330068 CirclipCirclip
-
62603345080 KeyKey
-
63619230004 WasherWasher
-
64875156112 WasherWasher
-
6533021 Nut M12Nut M12
-
66500451202 Lock washer 12 mmLock washer 12 mm
-
67654100225 SenderSender
-
68640025012S PlugPlug
-
6940036 Hex. screw M8 X 20Hex. screw M8 X 20
-
70534801362 Hex. screw M8 x 16Hex. screw M8 x 16
-
71537001402 Hex. screw M8 x 25Hex. screw M8 x 25
-
72875156327 Locking plateLocking plate
-
73619230003 ScrewScrew
-
74528801342 Hex. Screw M8 X 10Hex. Screw M8 X 10
-
75615580812 Seal ringSeal ring
-
76510611002 Nut M10Nut M10
-
77510600802 Nut M8Nut M8
-
78617395067 Adjustment shimAdjustment shim
