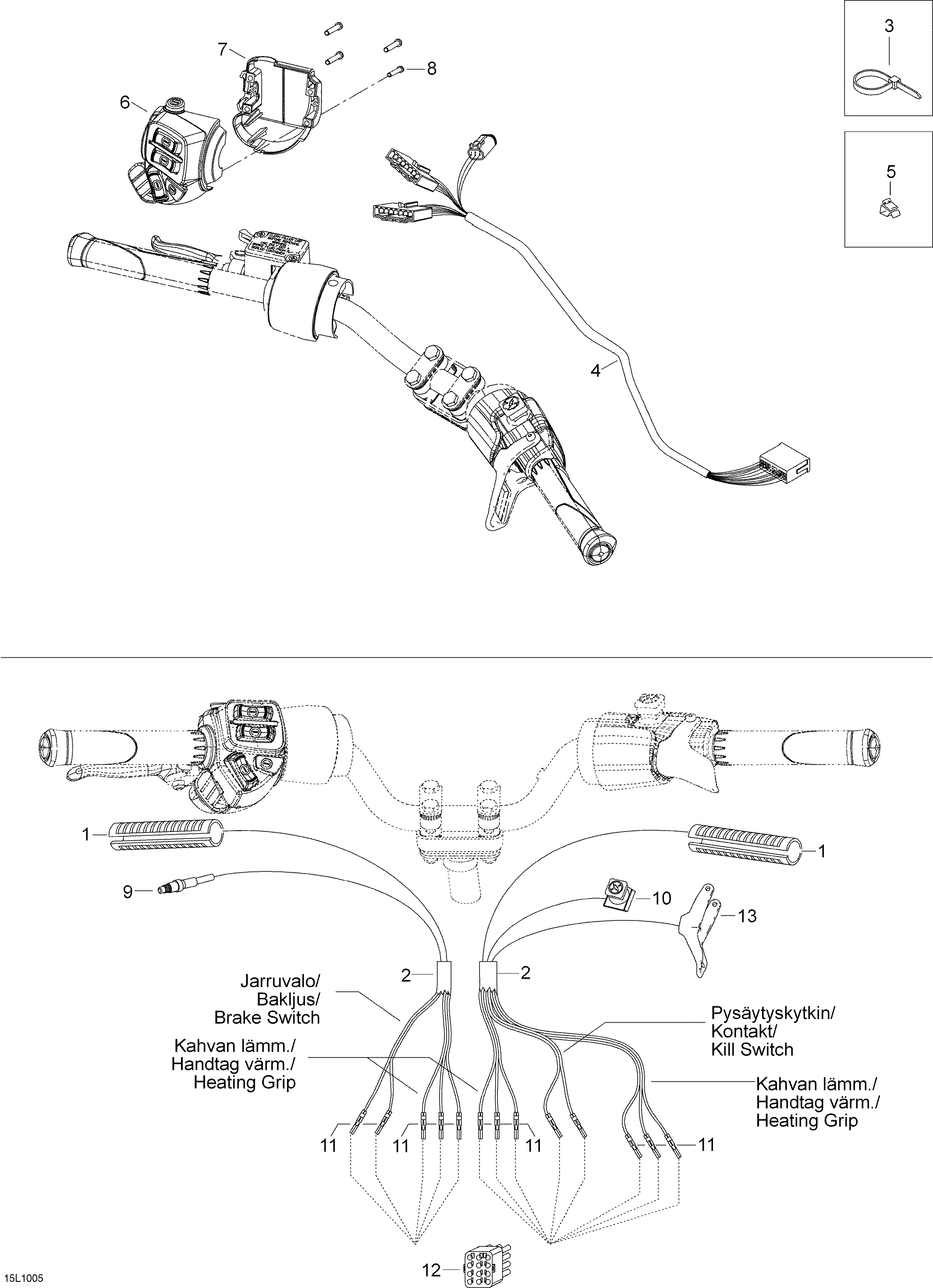

10- Steering Harness для BRP Lynx YETI Pro 550 - 2010
-
№АртикулНазвание
-
1515176139 Heater ElementHeater Element
-
239023 TubingTubing
-
3414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4605353266 Steering harnessSteering harness
-
5414227300 ClipClip
-
6515175771 Switch HousingSwitch Housing
-
7515175926 Housing Switch PlateHousing Switch Plate
-
840903 Plastofast-screw 3.5 x 25Plastofast-screw 3.5 x 25
-
9507032366 MicroswitchMicroswitch
-
10605356055 Kill switchKill switch
-
11605642628 ConnectorConnector
-
1242617 Male connector housing (15-circuit)Male connector housing (15-circuit)
-
13512060214 Handle AssyHandle Assy
