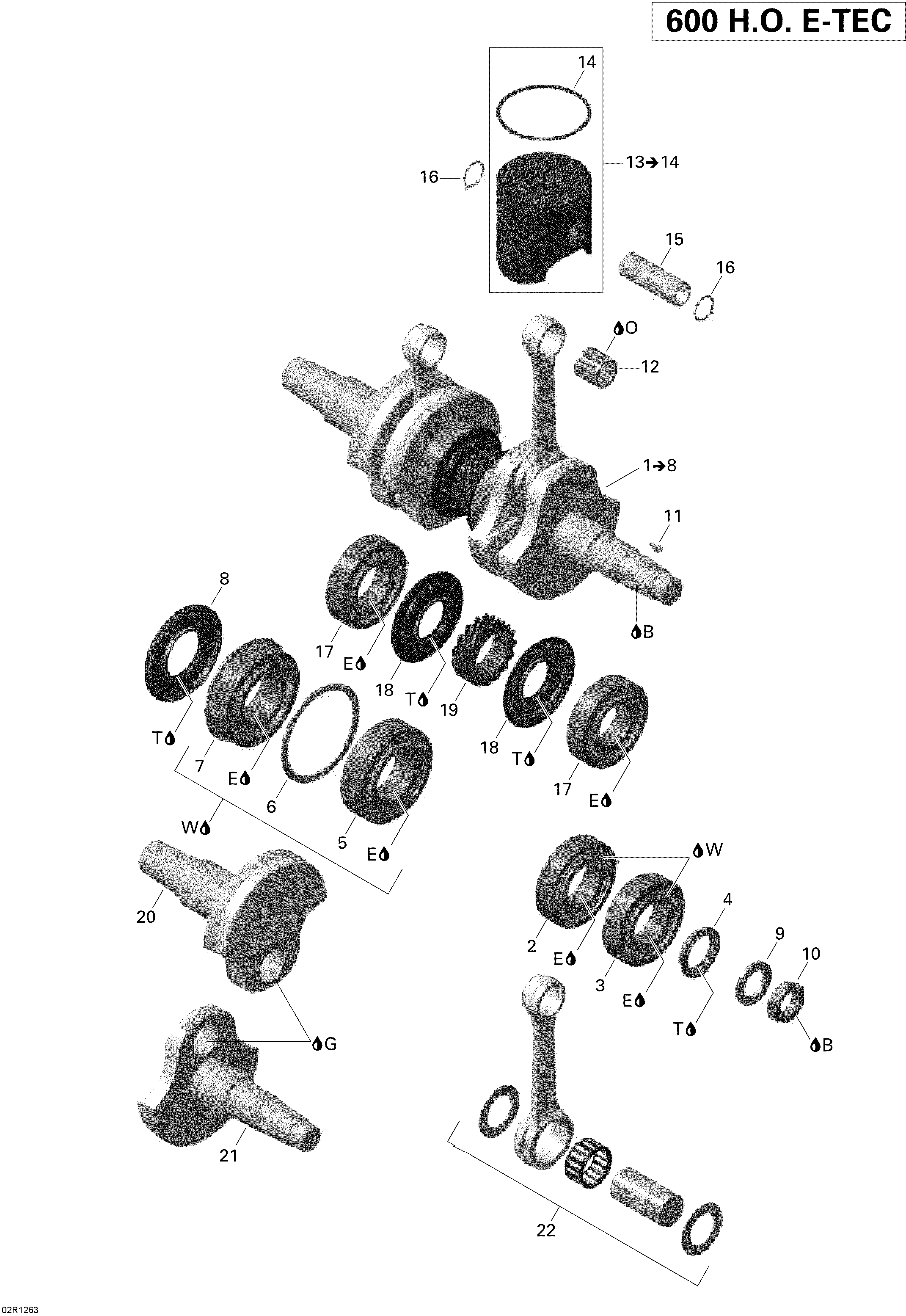

01- Crankshaft And Pistons для BRP Lynx 49 Ranger 600 E-TEC - 2012

№

Артикул

Название
1

420890954 Crankshaft Ass'y. Includes 1 to 8

Crankshaft Ass'y. Includes 1 to 8

0 ₽
2

420832633 Ball Bearing

Ball Bearing

15 800 ₽
3

420832575 Ball Bearing

Ball Bearing

8 480 ₽
4

420931793 Oil Seal

Oil Seal

0 ₽
5

420832602 Ball Bearing

Ball Bearing

8 950 ₽
6

420926190 Washer

Washer

3 990 ₽
7

420832702 Ball Bearing

Ball Bearing

15 160 ₽
8

420931284 Oil Seal

Oil Seal

14 210 ₽
9

420945759 Lock Washer, 22 mm

Lock Washer, 22 mm

660 ₽
10

420842239 Hex. Nut, M22 X 1.5

Hex. Nut, M22 X 1.5

1 610 ₽
11

420246015 Woodruff Key

Woodruff Key

1 040 ₽
12

420832445 Needle Bearing

Needle Bearing

5 090 ₽
13

420892386 Piston Ass'y With Rings, 71.89 mm. Includes 13 to 14

Piston Ass'y With Rings, 71.89 mm. Includes 13 to 14

0 ₽
14

420815295 Semi-Trapez Ring

Semi-Trapez Ring

17 160 ₽
15

420916412 Piston Pin

Piston Pin

5 280 ₽
16

420845106 Piston Circlip

Piston Circlip

2 410 ₽
17

420832575 Ball Bearing

Ball Bearing

8 480 ₽
18

420931455 Oil Seal

Oil Seal

5 240 ₽
19

420834355 Central Gear

Central Gear

9 030 ₽
22

420890958 Rod Repair Kit, PTO Side

Rod Repair Kit, PTO Side

52 160 ₽
22

420890959 Rod Repair Kit, MAG Side

Rod Repair Kit, MAG Side

52 160 ₽
B

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
E

293800070 Loctite 767, Antiseize Lubricant, 8 oz

Loctite 767, Antiseize Lubricant, 8 oz

3 130 ₽
G

413711400 Loctite 648, 10 ml

Loctite 648, 10 ml

3 420 ₽
T

420899271 Petamo Grease, GHY133N, 400 g

Petamo Grease, GHY133N, 400 g

8 190 ₽
W

293550021 Isoflex Grease, TOPAS NB52, 50 g

Isoflex Grease, TOPAS NB52, 50 g

6 860 ₽
