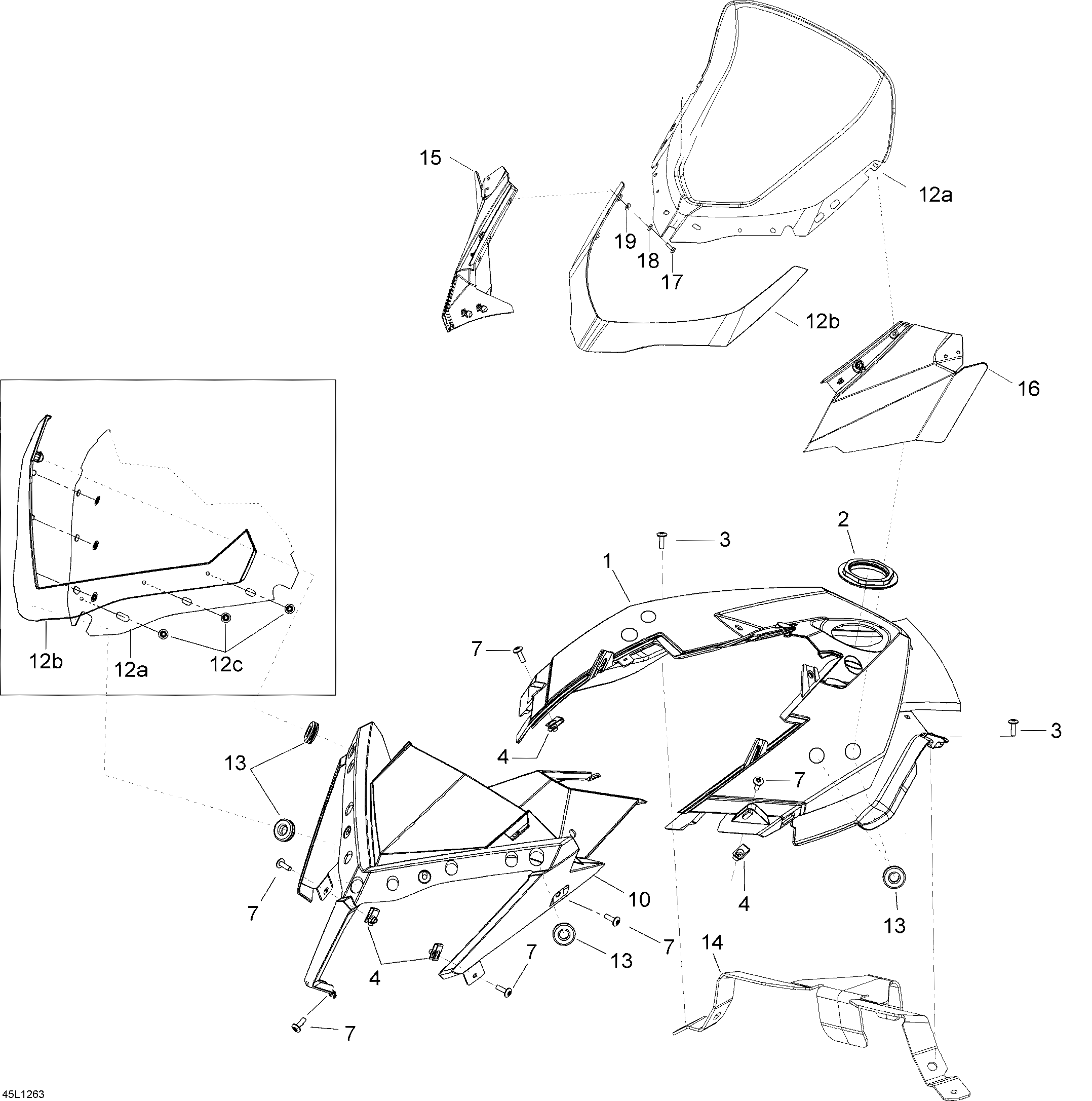

09- Windshield And Console для BRP Lynx 49 Ranger 600 E-TEC - 2012
-
№АртикулНазвание
-
1517304647 Console (White)Console (White)
-
2517302575 Console NutConsole Nut
-
3293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
4250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
7250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
8232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
9224061201 Flat WasherFlat Washer
-
10517304576 Gauge SupportGauge Support
-
12a517304614 WindshieldWindshield
-
12b517303607 Windshield SupportWindshield Support
-
12c732610072 Push NutPush Nut
-
13517303756 GrommetGrommet
-
14517304230 Console support plateConsole support plate
-
15517305135 Deflector air R.HDeflector air R.H
-
16517305136 Deflector air L.HDeflector air L.H
-
17250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
18250200025 Washer M5Washer M5
-
19250200024 Rubber Washer 5 mmRubber Washer 5 mm
