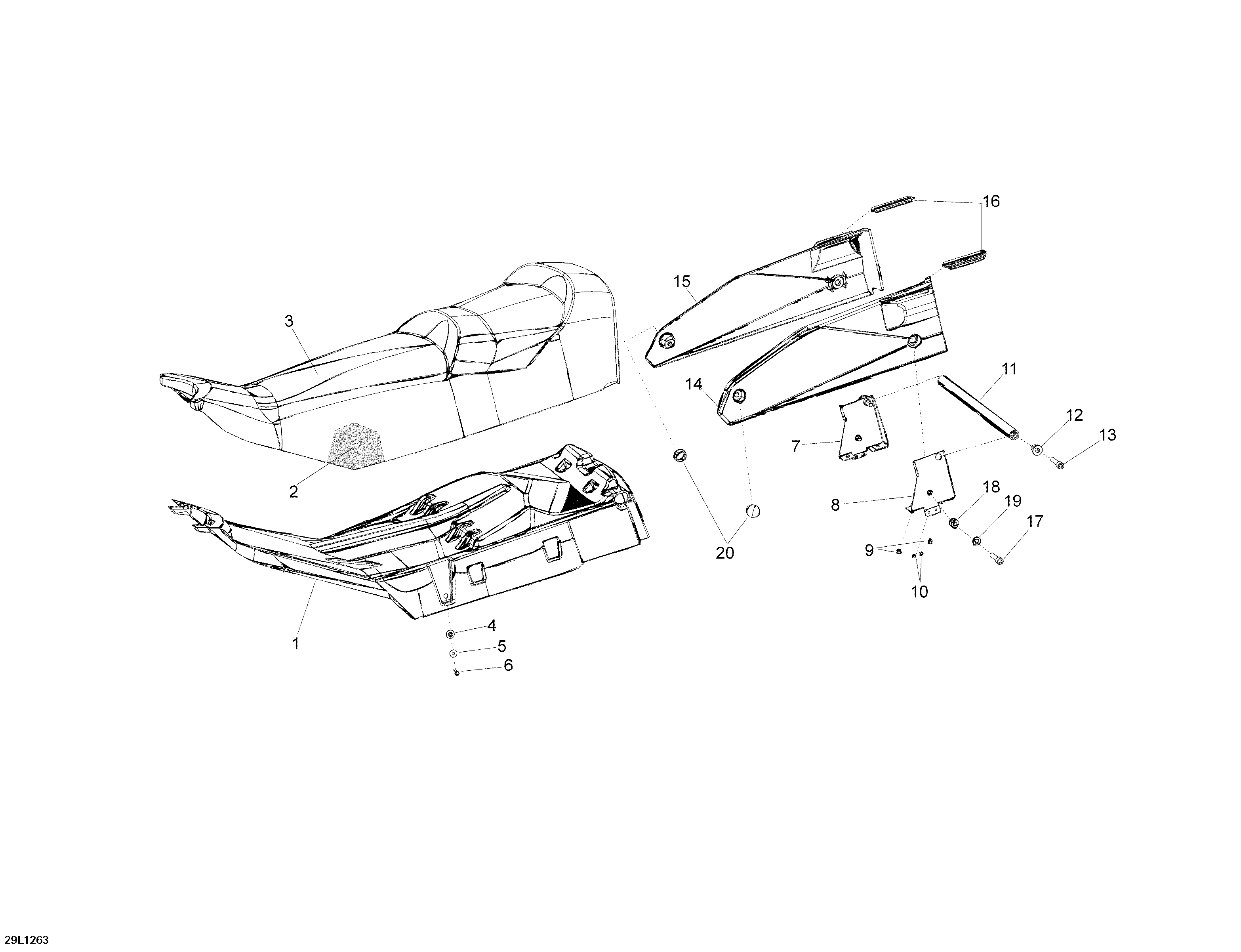

09- Seat для BRP Lynx 49 Ranger 600 E-TEC - 2012
-
№АртикулНазвание
-
1510005276 Base seatBase seat
-
2510005277 FoamFoam
-
3510005528 CoverCover
-
4510005402 BushingBushing
-
5234062410 Flat Washer 6 mmFlat Washer 6 mm
-
6205062544 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
7510005285 Support plate RHSupport plate RH
-
8510005286 Support plate LHSupport plate LH
-
9293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
10390909200 Avex RivetAvex Rivet
-
11510005284 AxleAxle
-
12510005287 BushingBushing
-
13205504044 Allen Screw M10 x 40 (Scotch Grip)Allen Screw M10 x 40 (Scotch Grip)
-
14510005331 Seat side cover L.HSeat side cover L.H
-
15510005332 Seat side cover R.HSeat side cover R.H
-
16510005394 CoverCover
-
17205403096 Screw socket BN.HD.ISO.7380Screw socket BN.HD.ISO.7380
-
18510005460 BushingBushing
-
19250200123 Flat washerFlat washer
-
20414916600 Nylon CapNylon Cap
