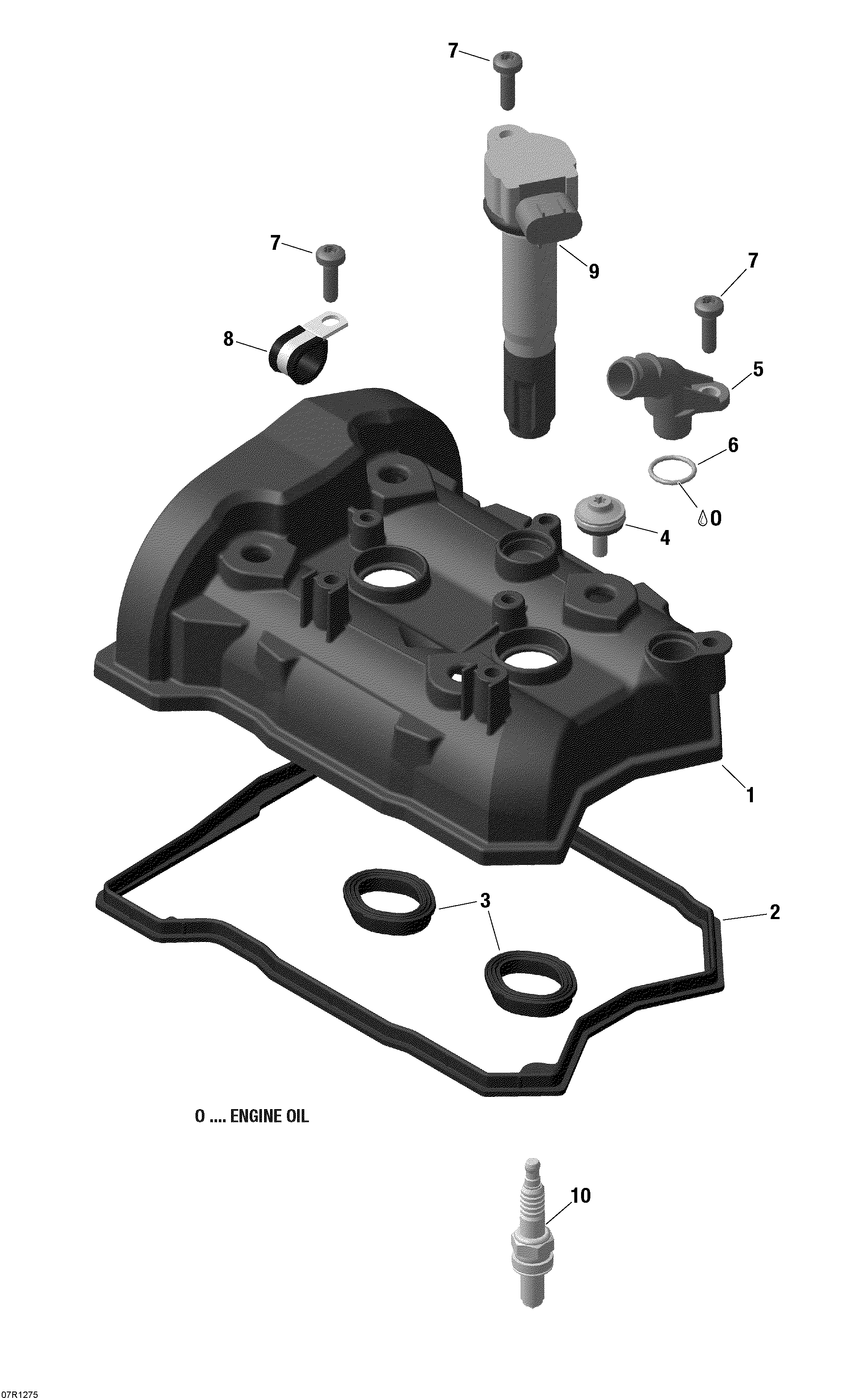

01- Valve Cover для BRP Lynx Rave 600 ACE - 2012
-
№АртикулНазвание
-
1420911040 Valve CoverValve Cover
-
2420431620 Gasket. INCLUDED IN GASKET KITGasket. INCLUDED IN GASKET KIT
-
3420431750 Gasket. INCLUDED IN GASKET KITGasket. INCLUDED IN GASKET KIT
-
4420440495 Torx Distance Screw M6. TIGHTENING TORQUE 10NM +/- 12%Torx Distance Screw M6. TIGHTENING TORQUE 10NM +/- 12%
-
5420611240 ConnectorConnector
-
6420631260 O-Ring. INCLUDED IN GASKET KITO-Ring. INCLUDED IN GASKET KIT
-
7420441381 Flanged Torx Screw M6 X 20. TIGHTENING TORQUE 10NM +/- 12%Flanged Torx Screw M6 X 20. TIGHTENING TORQUE 10NM +/- 12%
-
8420851492 Cable ClampCable Clamp
-
9420666140 Ignition CoilIgnition Coil
-
10415129670 Spark plug. TIGHTENING TORQUE 15NM +/- 12%Spark plug. TIGHTENING TORQUE 15NM +/- 12%
-
O293600112 Synthetic Oil 4T 12X1 L.Synthetic Oil 4T 12X1 L.
