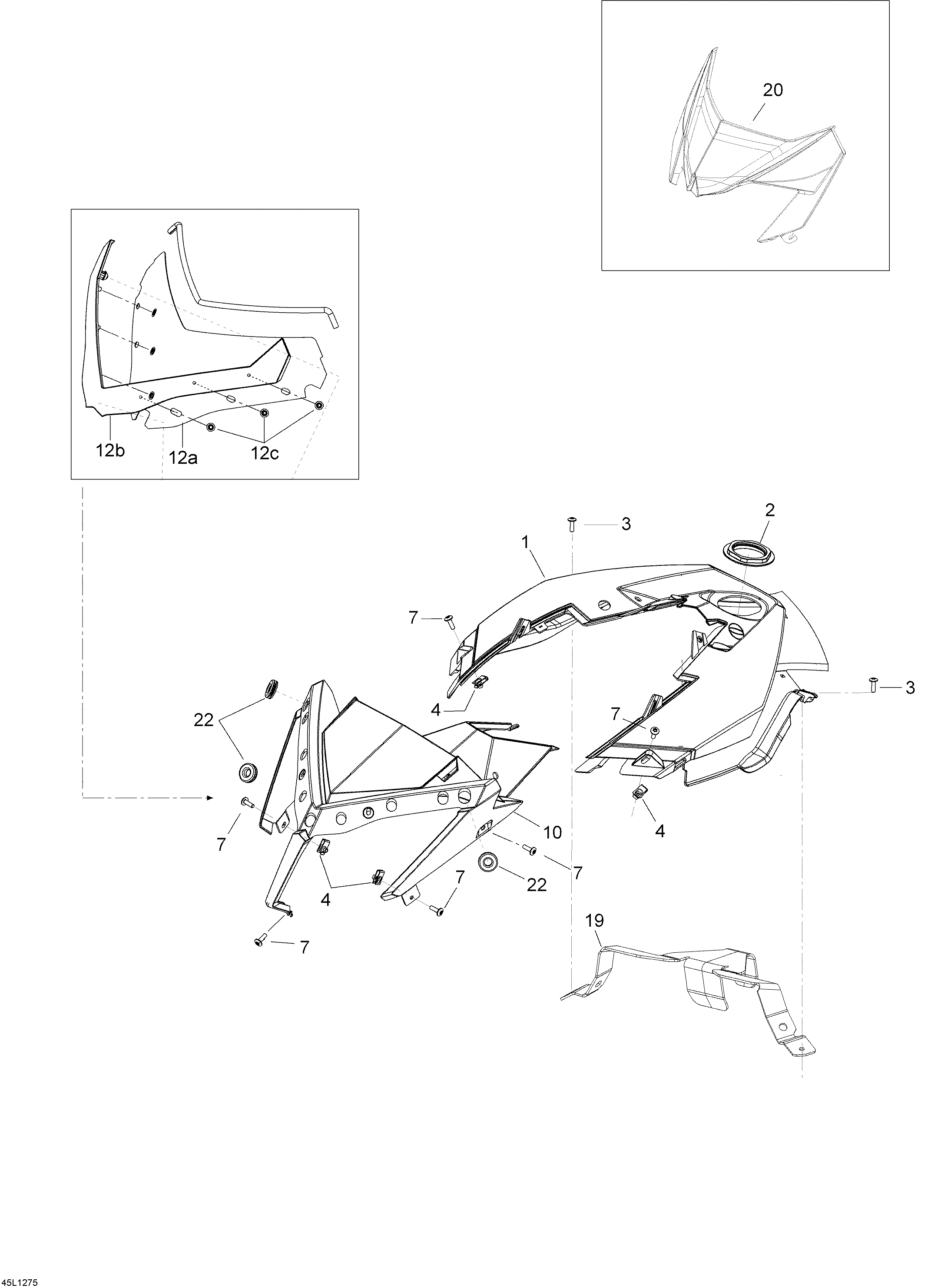

09- Windshield And Console для BRP Lynx Rave 600 ACE - 2012
![](/wa-data/public/shop/sheme/bombardier/lynx/6684c37e-6629-489b-9665-4b76c27fc426.png)
-
№АртикулНазвание
-
1517304645 Console, whiteConsole, white
-
2517302575 Console NutConsole Nut
-
3293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
4250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
7250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
833010 Elastic Stop Nut M6Elastic Stop Nut M6
-
9224061201 Flat WasherFlat Washer
-
10517304575 Gauge SupportGauge Support
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12a517304293 WindshieldWindshield
-
12b860200089 Windshield Support KitWindshield Support Kit
-
12c732610072 Push NutPush Nut
-
19517304230 Support plate for consoleSupport plate for console
-
20517303979 Headlamp coverHeadlamp cover
-
21517303608 Medium WindshieldMedium Windshield
-
22517303756 GrommetGrommet
