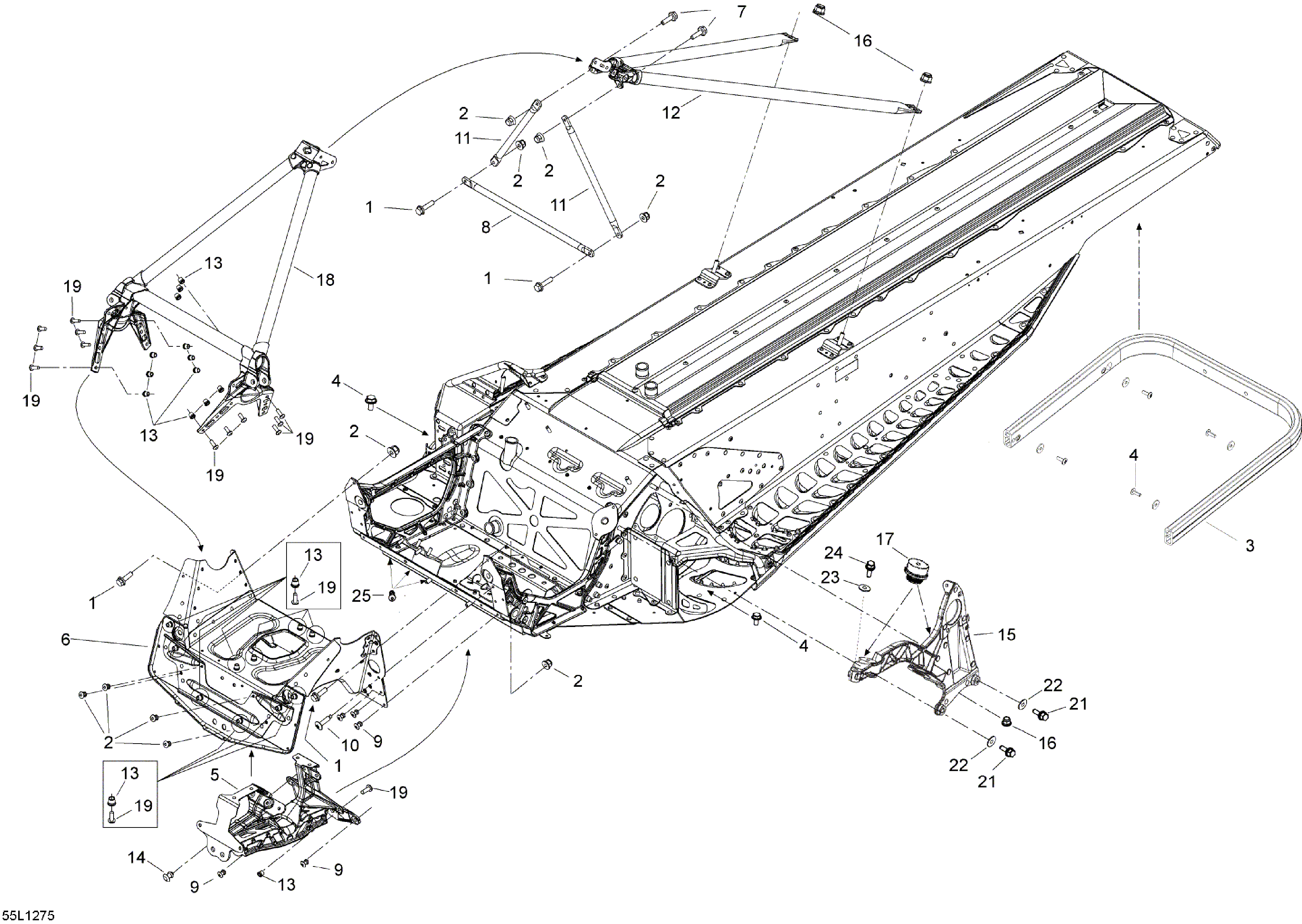

09- Frame And Components для BRP Lynx Rave 600 ACE - 2012
-
№АртикулНазвание
-
1207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
2233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3518324980 Rear BumperRear Bumper
-
4250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
5518325925 Front Suspension SupportFront Suspension Support
-
6518327049 Cross member (S-module)Cross member (S-module)
-
7207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
8518326355 Center Column SupportCenter Column Support
-
9293150144 Stavex RivetStavex Rivet
-
10210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
11518326848 Upper Column SupportUpper Column Support
-
12518326685 Rear MemberRear Member
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14293150147 Hemlock RivetHemlock Rivet
-
15518326142 Brace Ass.Brace Ass.
-
16233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
17512060295 Rubber MountRubber Mount
-
18518326555 Front MemberFront Member
-
19207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
20224061201 Flat WasherFlat Washer
-
21205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
22234281474 Conical Spring Washer M8Conical Spring Washer M8
-
23234281474 Conical Spring Washer M8Conical Spring Washer M8
-
24207584034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
25293730042 DartDart
