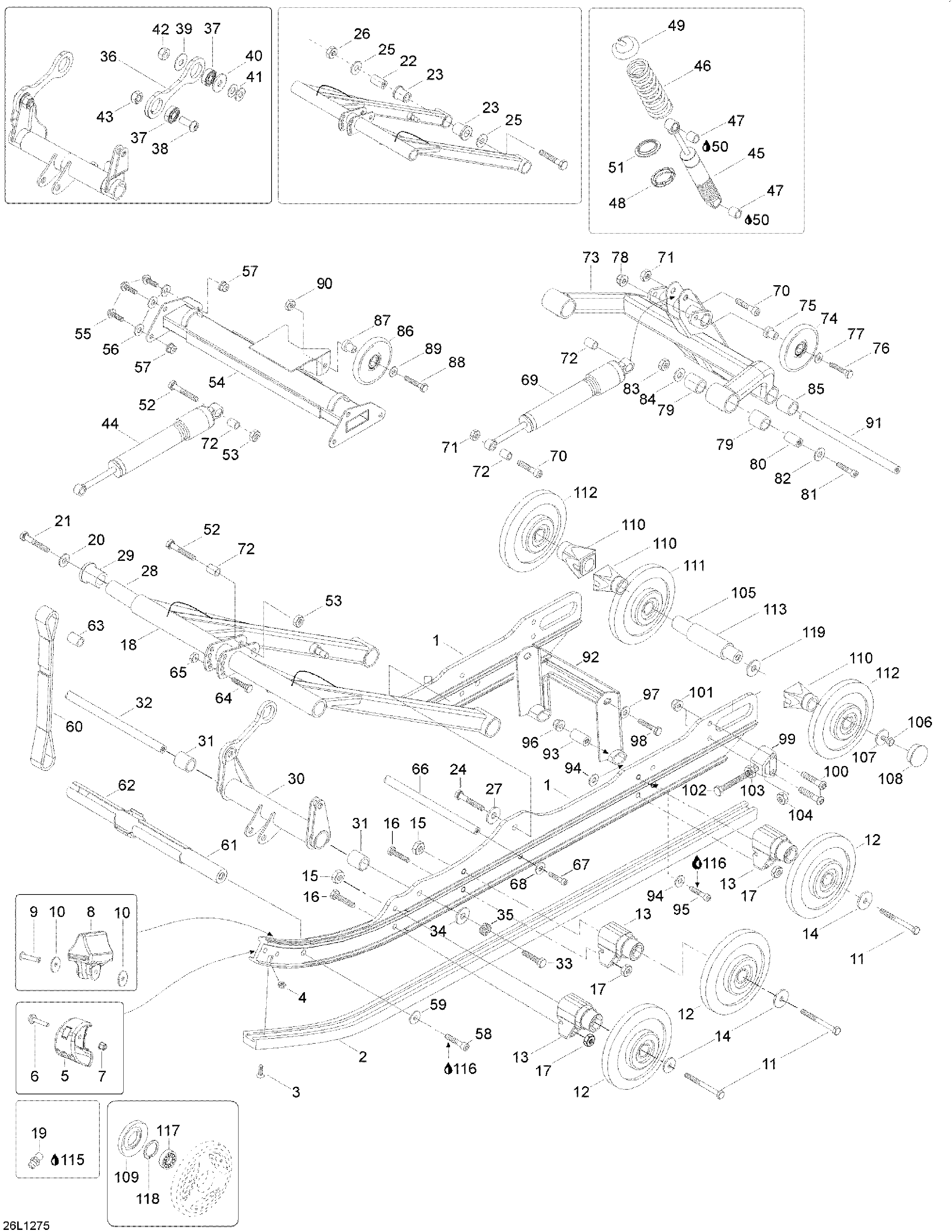

08- Rear Suspension для BRP Lynx Rave 600 ACE - 2012
-
№АртикулНазвание
-
1503191978 RunnerRunner
-
2503192189 Slide ShoeSlide Shoe
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192299 Runner ProtectorRunner Protector
-
6207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
7233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
8503192106 Rubber StopperRubber Stopper
-
9293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
10503191273 WasherWasher
-
11250000475 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
12503191942 Idler Wheel, 141mmIdler Wheel, 141mm
-
13503193082 Casted SupportCasted Support
-
14503191820 Wheel Cup M6Wheel Cup M6
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16250000522 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18503192557 Front ArmFront Arm
-
1934011 Grease NippleGrease Nipple
-
20250200005 Conical Spring Washer M12Conical Spring Washer M12
-
21250000555 Hex. Screw M12 x 60Hex. Screw M12 x 60
-
22605354157 ShaftShaft
-
2331065 BushingBushing
-
2440021 Hex. Screw M10 x 70Hex. Screw M10 x 70
-
25605355801 WasherWasher
-
2633012 Elastic Stop Nut M10Elastic Stop Nut M10
-
27503183300 WasherWasher
-
28503192046 ShaftShaft
-
2931024 CushionCushion
-
30503192518 Swing WeldSwing Weld
-
3131024 CushionCushion
-
32605355800 ShaftShaft
-
33205505547 Screw M10 x 55Screw M10 x 55
-
34512056700 Lock WasherLock Washer
-
3520068 Lock Washer D10Lock Washer D10
-
36605254159 Connecting RodConnecting Rod
-
37605631003 Ball BearingBall Bearing
-
38205402546 Socket Screw BN.HD.ISO.7380Socket Screw BN.HD.ISO.7380
-
3925004 Spring CupSpring Cup
-
40234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
41234001410 Flat Washer 10 mmFlat Washer 10 mm
-
42233401414 Lock Spring nut M10 x 1.5Lock Spring nut M10 x 1.5
-
43232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
45503192389 Shock, Front ArmShock, Front Arm
-
45503192385 Shock, Rear ArmShock, Rear Arm
-
46605625010 SpringSpring
-
46605625009 Spring, Rear Arm 65Nm. 280mm.Spring, Rear Arm 65Nm. 280mm.
-
4731094 CushionCushion
-
48230078 Adjusting CamAdjusting Cam
-
49230076 Spring SeatSpring Seat
-
5032161 Loctite 641, 50mlLoctite 641, 50ml
-
51230049 Spring GuideSpring Guide
-
52207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
53232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
54503192566 Middle BeamMiddle Beam
-
55207182544 Hex. Screw M8 X 25Hex. Screw M8 X 25
-
56605620002 Washer A8.4Washer A8.4
-
57233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
58205505044 Socket Head Screw M10 x 50Socket Head Screw M10 x 50
-
5920005 Washer M10Washer M10
-
60605355116 Limiter StrapLimiter Strap
-
61605353958 ShaftShaft
-
62605355096 LimiterLimiter
-
63605455335 SleeveSleeve
-
64207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
65232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
665343471 ShaftShaft
-
67205505044 Socket Head Screw M10 x 50Socket Head Screw M10 x 50
-
68234001410 Flat Washer 10 mmFlat Washer 10 mm
-
7040134 Socket Head Screw M10 x 45Socket Head Screw M10 x 45
-
71232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
725446652 BushingBushing
-
73503192524 Rear Arm WeldRear Arm Weld
-
74503192675 Idler Wheel, 133mmIdler Wheel, 133mm
-
75605454461 SleeveSleeve
-
76207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
7720077 Washer A8,4Washer A8,4
-
78233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7931065 BushingBushing
-
80605354157 ShaftShaft
-
81205006544 Socket Head Screw M10 x 65Socket Head Screw M10 x 65
-
82234002410 Flat Washer 10 mmFlat Washer 10 mm
-
83232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
84605355801 WasherWasher
-
8531024 CushionCushion
-
86572043500 Idler WheelIdler Wheel
-
87605454167 SleeveSleeve
-
88207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
8920077 Washer A8,4Washer A8,4
-
90232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
91605355118 ShaftShaft
-
92503192571 Rear SwingRear Swing
-
93503192341 Rear Swing ShaftRear Swing Shaft
-
94234001410 Flat Washer 10 mmFlat Washer 10 mm
-
95205006044 Socket Head Screw M10 x 60Socket Head Screw M10 x 60
-
96233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
97234001410 Flat Washer 10 mmFlat Washer 10 mm
-
98207204044 Screw M10 x 40Screw M10 x 40
-
995341633 Tensioner HousingTensioner Housing
-
100205484546 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
101233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
102230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
103232006414 Hex. Nut M10Hex. Nut M10
-
104232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
105503190429 Rear AxleRear Axle
-
106207303544 Hex. Screw M10 x 35 (Scotch Grip)Hex. Screw M10 x 35 (Scotch Grip)
-
107503190439 WasherWasher
-
108570063600 Wheel CapWheel Cap
-
109503190434 Labyrinth SealLabyrinth Seal
-
110503190428 Rear Wheel SpacerRear Wheel Spacer
-
111503192140 Wheel 165, BlackWheel 165, Black
-
112503192676 Wheel, 165mmWheel, 165mm
-
113503190430 SpacerSpacer
-
115293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
116293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
117293350055 Ball BearingBall Bearing
-
118371901700 CirclipCirclip
-
119503190432 WasherWasher
