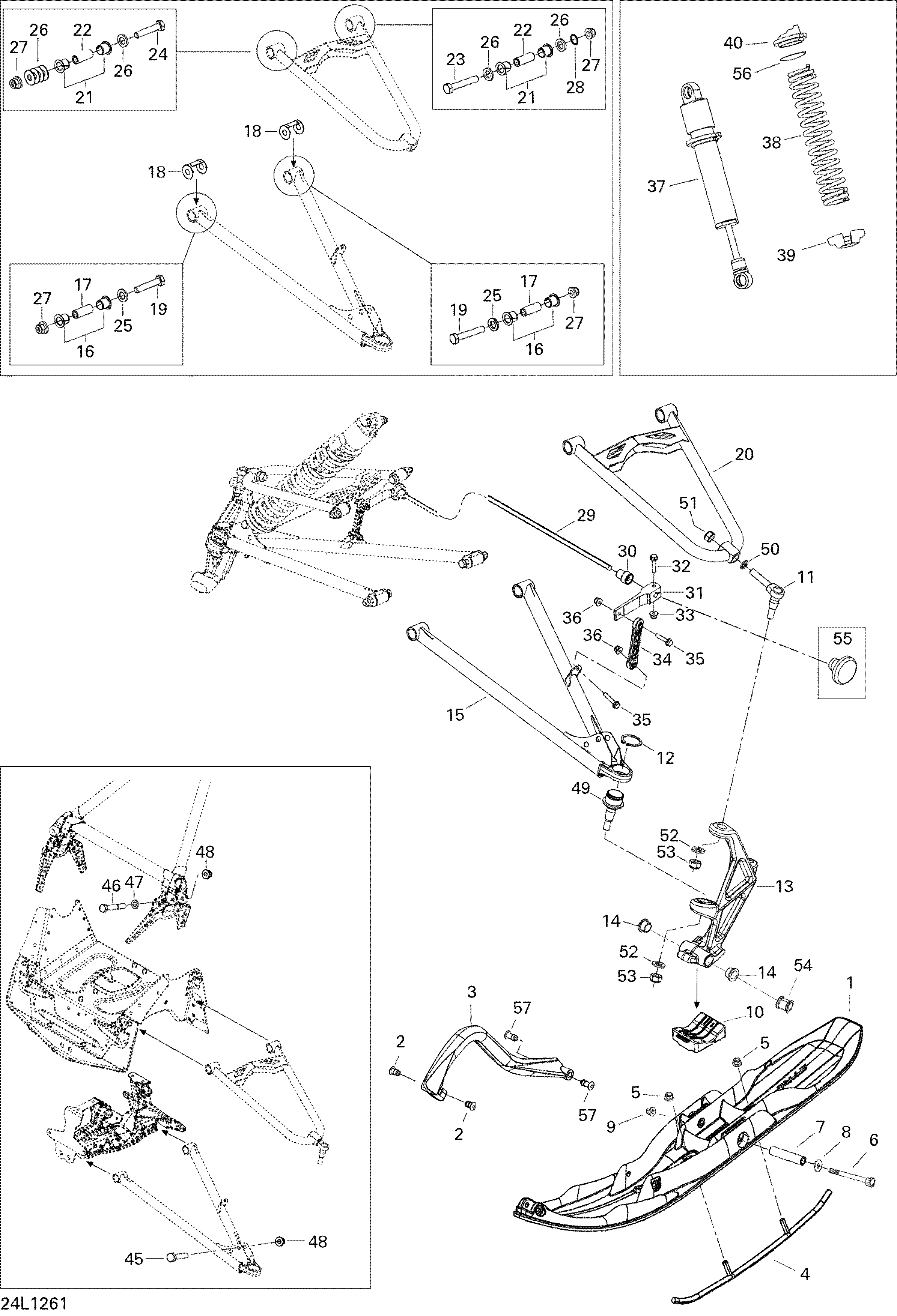

07- Front Suspension And Ski для BRP Lynx Xtrim 550 - 2012
-
№АртикулНазвание
-
1505072673 Plastic-SkiPlastic-Ski
-
2505071812 RetainerRetainer
-
3505072102 Plastic handle, whitePlastic handle, white
-
4605349378 Runner ass'yRunner ass'y
-
533074 Elastic flanged nut M10Elastic flanged nut M10
-
6230003044 Socket head screw M10 x 130Socket head screw M10 x 130
-
7506133300 Spacer / Ski-axleSpacer / Ski-axle
-
8732900049 WasherWasher
-
933012 Elastic stop nut M10Elastic stop nut M10
-
10505072561 Stopper-skiStopper-ski
-
11505072257 Upper Ball JointUpper Ball Joint
-
12293370035 CirclipCirclip
-
13505073011 LH Ski LegLH Ski Leg
-
13505073012 RH Ski LegRH Ski Leg
-
14505072690 Cushion / BushingCushion / Bushing
-
15505072497 RH Lower ArmRH Lower Arm
-
15505072498 LH Lower ArmLH Lower Arm
-
16503191766 CushionCushion
-
17505072401 Aluminum BushingAluminum Bushing
-
18505072634 Wear PlateWear Plate
-
19250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
20505072375 Upper ArmUpper Arm
-
21503191555 Swivel BushingSwivel Bushing
-
22505072143 Aluminum BushingAluminum Bushing
-
23250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
24250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
25503189564 WasherWasher
-
26505072392 WasherWasher
-
27250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
28505072448 O-RingO-Ring
-
37505072821 HPG Front ShockHPG Front Shock
-
38505072882 Spring 16Nm. 300mm.Spring 16Nm. 300mm.
-
39706200881 Spring StopperSpring Stopper
-
40505070150 Adjuster camAdjuster cam
-
45207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
46207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
47503189564 WasherWasher
-
48233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
49505072682 Lower Ball JointLower Ball Joint
-
50503189276 WasherWasher
-
51250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
52234021410 Flat Washer 12 mmFlat Washer 12 mm
-
53250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
54505071999 SpacerSpacer
-
55572091300 CapCap
-
56503191872 Spring guideSpring guide
-
57505072133 RetainerRetainer
