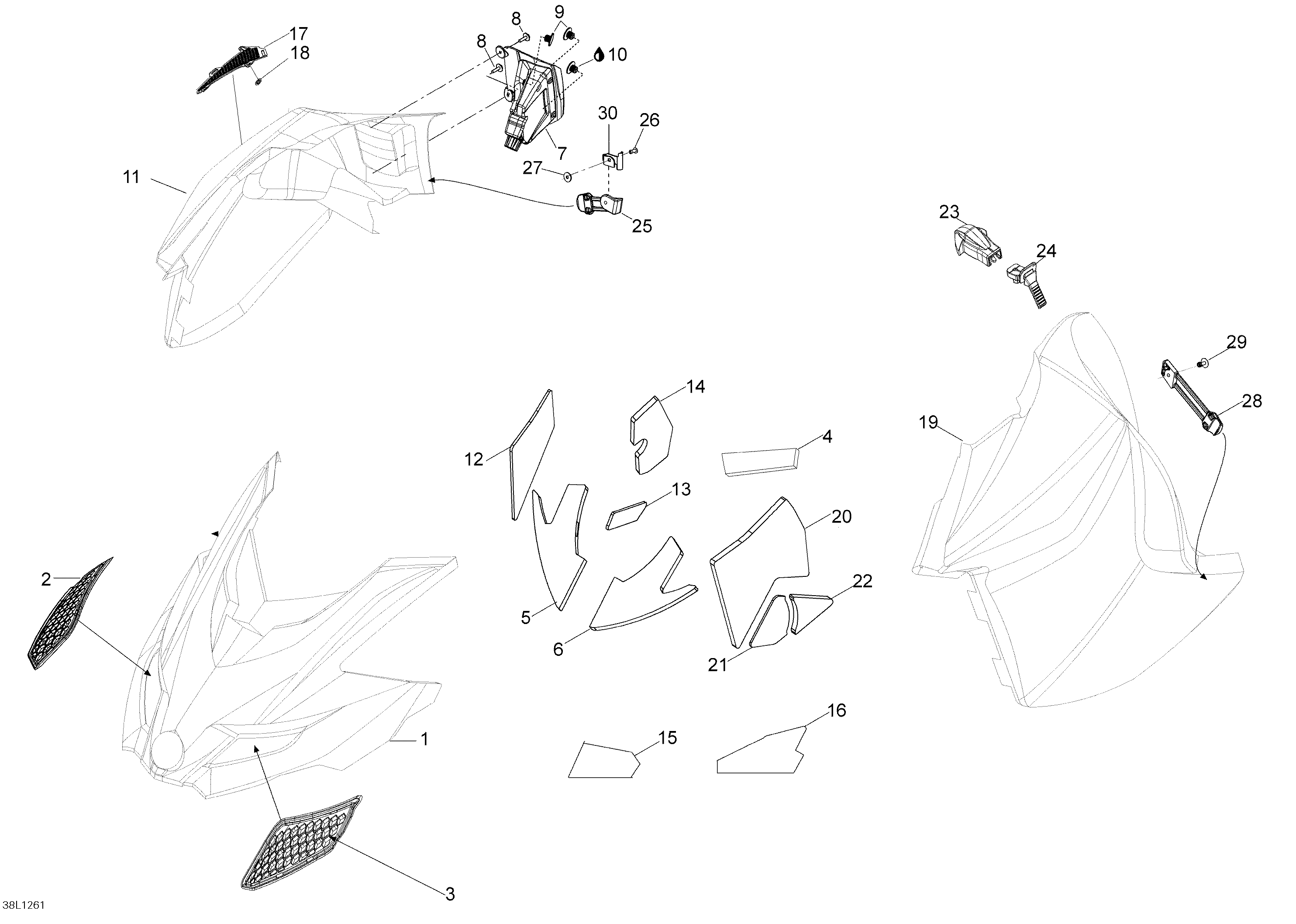

09- Hood для BRP Lynx Xtrim 550 - 2012
-
№АртикулНазвание
-
1517303962 HoodHood
-
2517304141 R.H. Hood grillR.H. Hood grill
-
3517304008 L.H. Hood grillL.H. Hood grill
-
4517304266 FoamFoam
-
5517304263 Foam RHFoam RH
-
6517304321 Foam LHFoam LH
-
7517304322 R.H. ConsoleR.H. Console
-
8250000113 ScrewScrew
-
9275500241 Cap, blackCap, black
-
10413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
11517304981 Side Panel R.H.Side Panel R.H.
-
12517304220 FoamFoam
-
13517304306 FoamFoam
-
14517304339 FoamFoam
-
15517304264 Aluminium FoilAluminium Foil
-
16517304265 Aluminium FoilAluminium Foil
-
17517304007 GrillGrill
-
18517302785 ClipClip
-
19517304990 Side Panel L.H.Side Panel L.H.
-
20517304219 FoamFoam
-
21517304305 FoamFoam
-
22517304340 FoamFoam
-
23860200239 End pieceEnd piece
-
24517303981 Latch panel UpperLatch panel Upper
-
25517303612 Latch Panel R.H. lowerLatch Panel R.H. lower
-
26390402300 RivetRivet
-
27517124300 WasherWasher
-
28517303808 Latch panelLatch panel
-
29293150108 RivetRivet
-
30517304221 Latch supportLatch support
