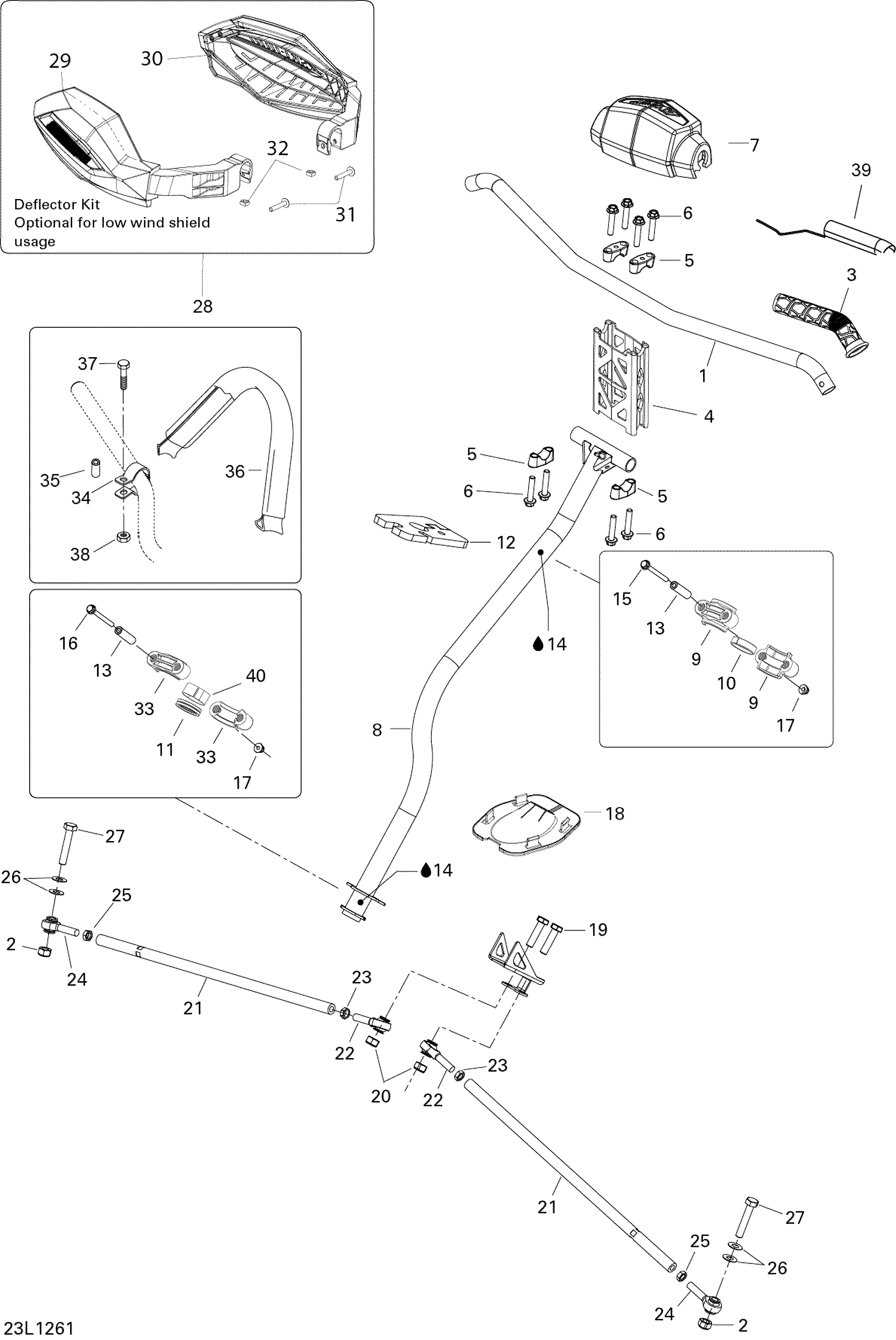

07- Steering System для BRP Lynx Xtrim 550 - 2012
-
№АртикулНазвание
-
1506152399 Handle Bar paintedHandle Bar painted
-
2232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
3506152483 GripGrip
-
4506152457 Extension 130mmExtension 130mm
-
5506152395 Steering SupportSteering Support
-
6250000285 Hex Flanged Screw M8 x 40Hex Flanged Screw M8 x 40
-
7506152265 Steering PadSteering Pad
-
8506152473 Main Tube PaintMain Tube Paint
-
9506152508 Half-Housing UpperHalf-Housing Upper
-
10506152509 VIBRAT. GASKET upperVIBRAT. GASKET upper
-
11506152518 VIBRAT. GASKET lowerVIBRAT. GASKET lower
-
12506152521 CushionCushion
-
13506152297 Housing BushingHousing Bushing
-
14293550033 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
15207667086 Hex Flanged Screw M6 x 70Hex Flanged Screw M6 x 70
-
16207667086 Hex Flanged Screw M6 x 70Hex Flanged Screw M6 x 70
-
17233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
18506152163 PlatePlate
-
19207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
20232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
21506152498 Tie RodTie Rod
-
22506152081 Ball JointBall Joint
-
23250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
24506152019 Ball JointBall Joint
-
25732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
26506152194 WasherWasher
-
27207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
28517305053 Deflector pack (Optional)Deflector pack (Optional)
-
29517305054 RH deflectorRH deflector
-
30517305055 LH deflectorLH deflector
-
31250000501 Truss screw M6 x 35Truss screw M6 x 35
-
32250000498 Square nut M6Square nut M6
-
33506152217 Half housing lowerHalf housing lower
-
34506152536 Plate supportPlate support
-
35506152156 BushingBushing
-
36506152115 Strap AssyStrap Assy
-
37207662084 Screw DIN.6921Screw DIN.6921
-
38233261494 Nut FlangeNut Flange
-
39506152467 Heated filmHeated film
-
40506152440 Retainer ringRetainer ring
