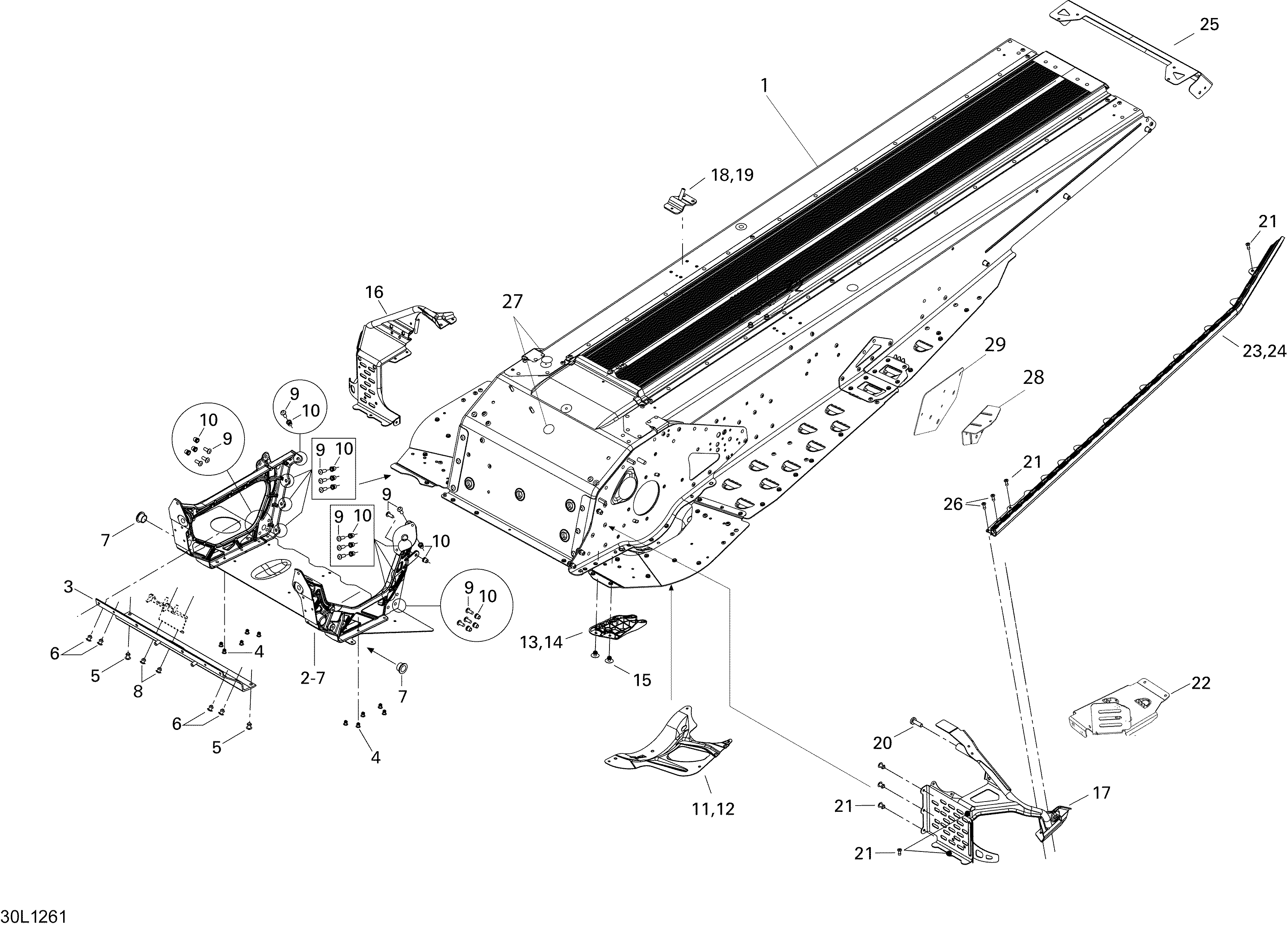

09- Frame для BRP Lynx Xtrim 550 - 2012
-
№АртикулНазвание
-
1518326835 Frame assy. Includes 1 to 39Frame assy. Includes 1 to 39
-
2518326190 E ModuleE Module
-
3518325818 Front MemberFront Member
-
4390909100 Avex RivetAvex Rivet
-
5293150120 Hemlock RivetHemlock Rivet
-
6293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
7505072690 CushionCushion
-
8293150174 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
9207662044 Flanged screw M6 x 20Flanged screw M6 x 20
-
10233261414 Flanged elastic nut M6Flanged elastic nut M6
-
11518324874 RH ReinforcementRH Reinforcement
-
12518324875 LH ReinforcementLH Reinforcement
-
13518325782 RH DeflectorRH Deflector
-
14518325783 LH DeflectorLH Deflector
-
15293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
16518326216 RH StirrupRH Stirrup
-
17518326239 LH StirrupLH Stirrup
-
18518326421 RH Rear BaseRH Rear Base
-
19518326443 LH Rear BaseLH Rear Base
-
20250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
21390909200 Avex RivetAvex Rivet
-
22518326416 Footrest L.H.Footrest L.H.
-
22518326415 Footrest R.H.Footrest R.H.
-
23518327068 LH RollerLH Roller
-
24518327069 RH RollerRH Roller
-
25518326227 Rear CapRear Cap
-
26390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
27518325560 Adhesive patchAdhesive patch
