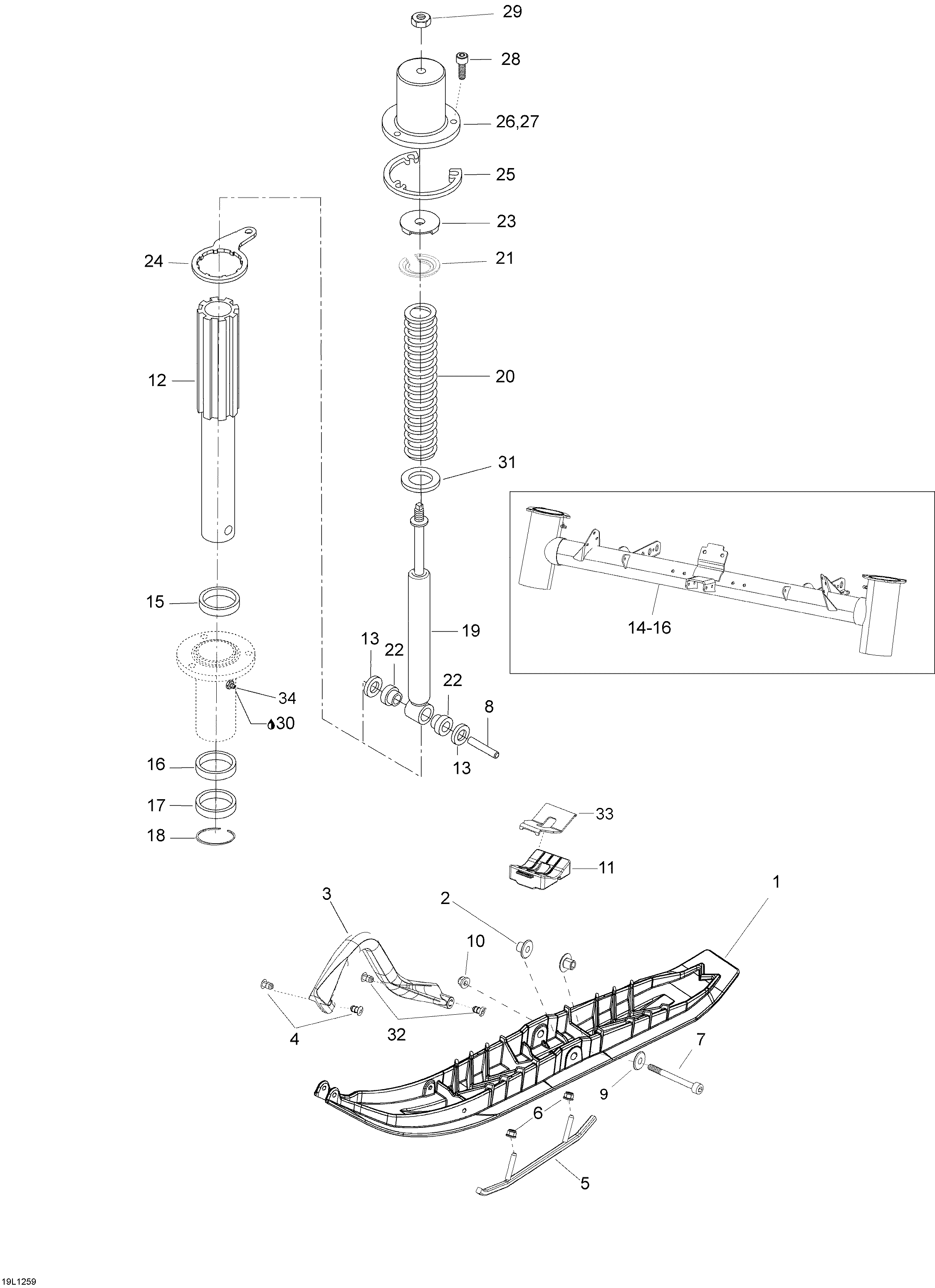

07- Front Suspension And Ski для BRP Lynx 69 YETI 600 ACE - 2012
-
№АртикулНазвание
-
1505073034 SkiSki
-
2505071781 CushionCushion
-
3505070963 Handle, BlackHandle, Black
-
4505071812 RetainerRetainer
-
5605352643 Carbide KitCarbide Kit
-
6233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
740225 ALLEN SCREW M10X140 8.8ZNALLEN SCREW M10X140 8.8ZN
-
8506133300 SpacerSpacer
-
9732900049 WasherWasher
-
10233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
11505072912 RUBBER DAMPERRUBBER DAMPER
-
12505072778 Ski LegSki Leg
-
13505072579 SpacerSpacer
-
14-16505072984 Ass'y Module S2Ass'y Module S2
-
15414803100 Upper CushionUpper Cushion
-
16414803200 Lower CushionLower Cushion
-
17505072696 Seal OilSeal Oil
-
18505072698 CirclipCirclip
-
19505073046 ShockShock
-
20505072557 SpringSpring
-
21505072619 Spring StopperSpring Stopper
-
22572034500 CushionCushion
-
23605354835 Rubber BumberRubber Bumber
-
24505073054 Arm-SteeringArm-Steering
-
25505072581 SpacerSpacer
-
26505072874 Suspension Cover LHSuspension Cover LH
-
27505072875 Suspension Cover RHSuspension Cover RH
-
28205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
29233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
30293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
31505072578 WasherWasher
-
32505072133 RetainerRetainer
-
33505072799 Support PlateSupport Plate
-
34408200700 Grease FittingGrease Fitting
