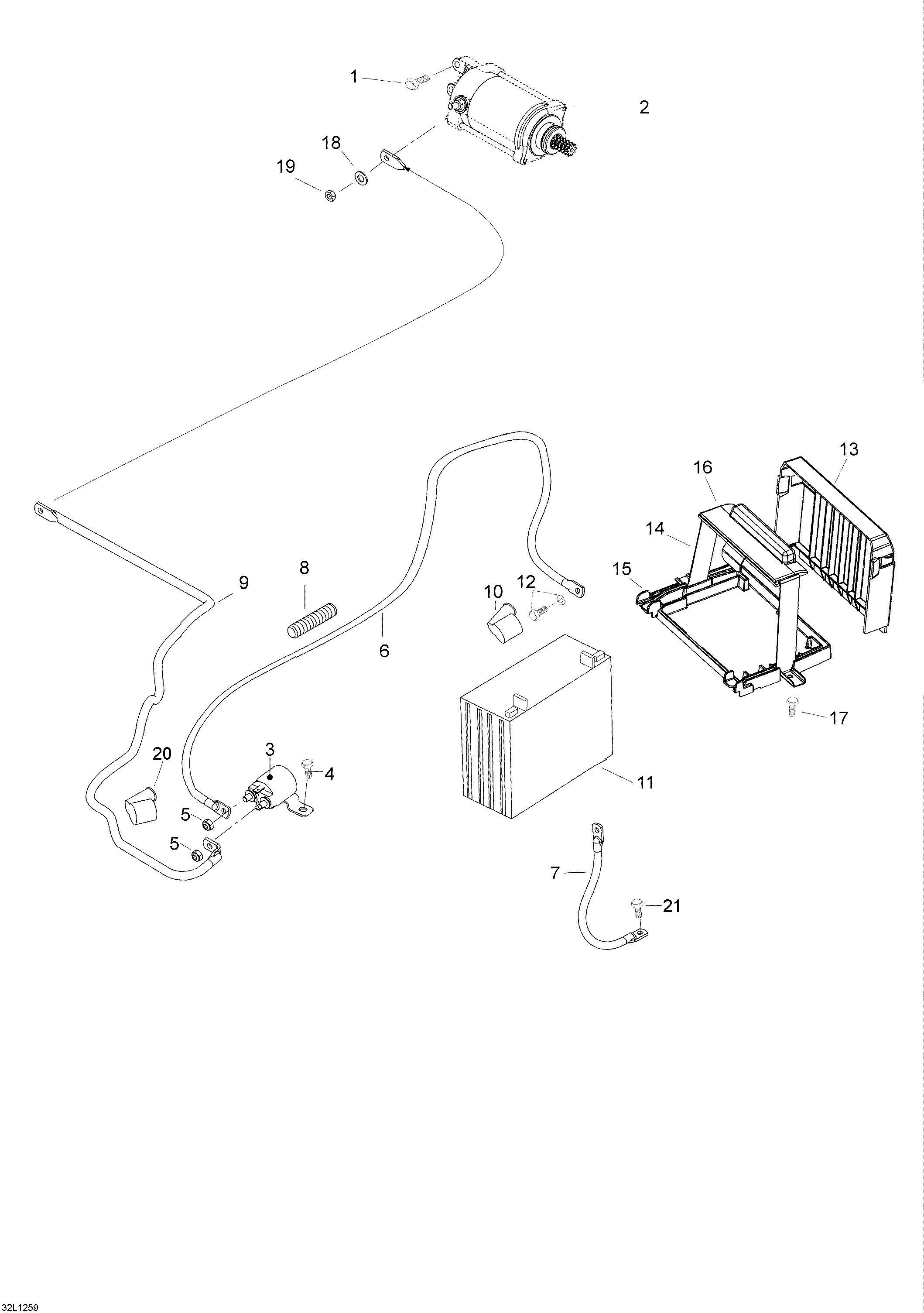

10- Electric Starter And Battery для BRP Lynx 69 YETI 600 ACE - 2012
-
№АртикулНазвание
-
1420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
2420892423 Starter Ass'yStarter Ass'y
-
3515176011 Starter RelayStarter Relay
-
4207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
5232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
6515176778 Battery WireBattery Wire
-
7515176777 Ground WireGround Wire
-
828015 TubingTubing
-
9515176945 Battery WireBattery Wire
-
10710000495 Protector CapProtector Cap
-
11515176151 BatteryBattery
-
12295500849 Battery Fastener KitBattery Fastener Kit
-
13510005079 Battery CoverBattery Cover
-
14510005143 Battery StrapBattery Strap
-
15515176804 Battery SupportBattery Support
-
16510005146 Strap CoverStrap Cover
-
17207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
18234061410 Flat Washer 6 mmFlat Washer 6 mm
-
19232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
20570151000 Protection CapProtection Cap
-
21207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
