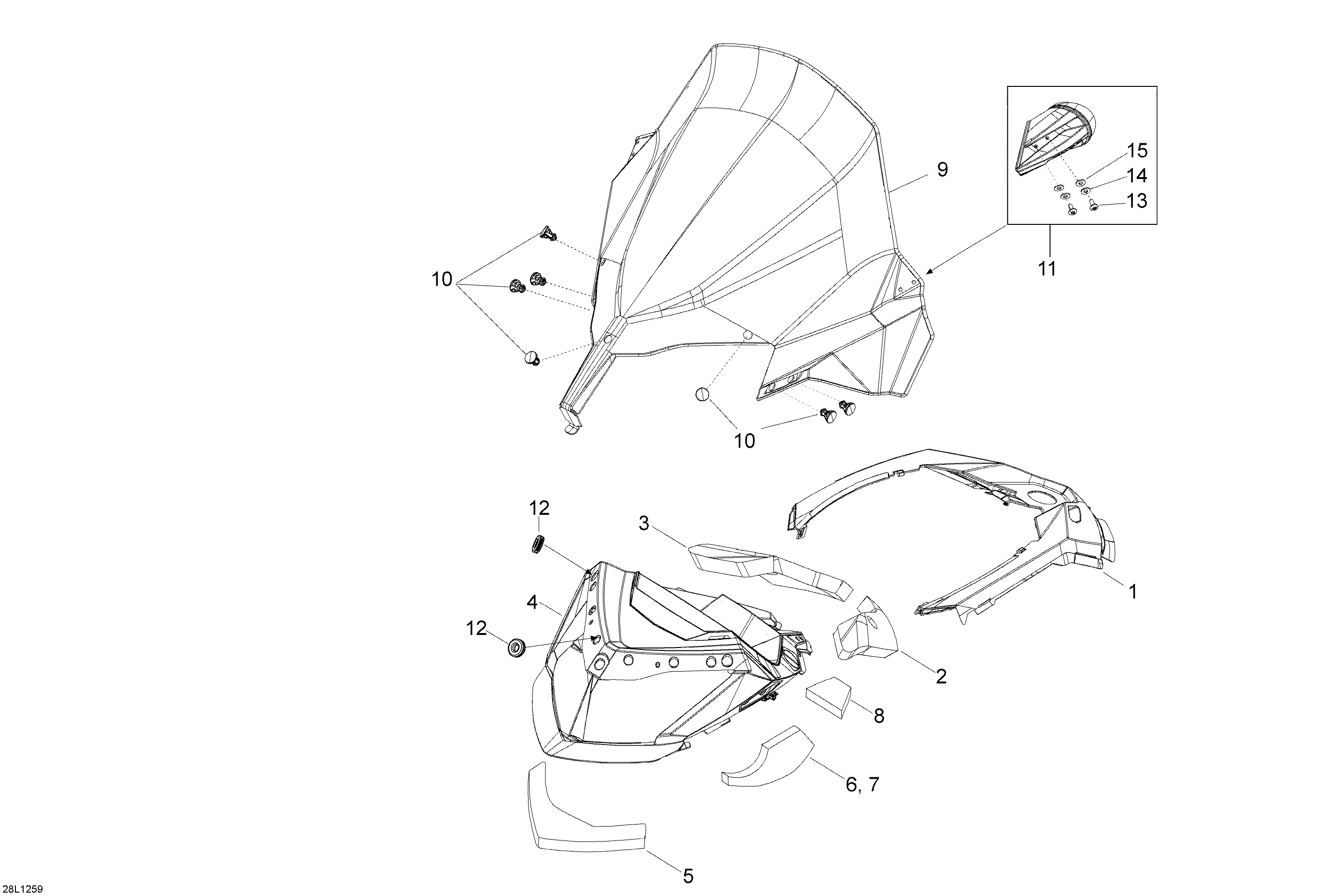

09- Windshield And Console для BRP Lynx 69 YETI 600 ACE - 2012
-
№АртикулНазвание
-
1517304820 ConsoleConsole
-
2517304317 InsulatorInsulator
-
3517304318 InsulatorInsulator
-
4517304272 Indicator SupportIndicator Support
-
5517304314 InsulatorInsulator
-
6517304315 InsulatorInsulator
-
7517304316 InsulatorInsulator
-
8517304319 InsulatorInsulator
-
9860200555 Windshield Ass'yWindshield Ass'y
-
10517304744 ButtonButton
-
11517304628 Mirror RH/LHMirror RH/LH
-
12517303756 GrommetGrommet
-
13250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
1420117 Washer 6X18 Black AnozidedWasher 6X18 Black Anozided
-
15250200024 Rubber Washer 5 mmRubber Washer 5 mm
