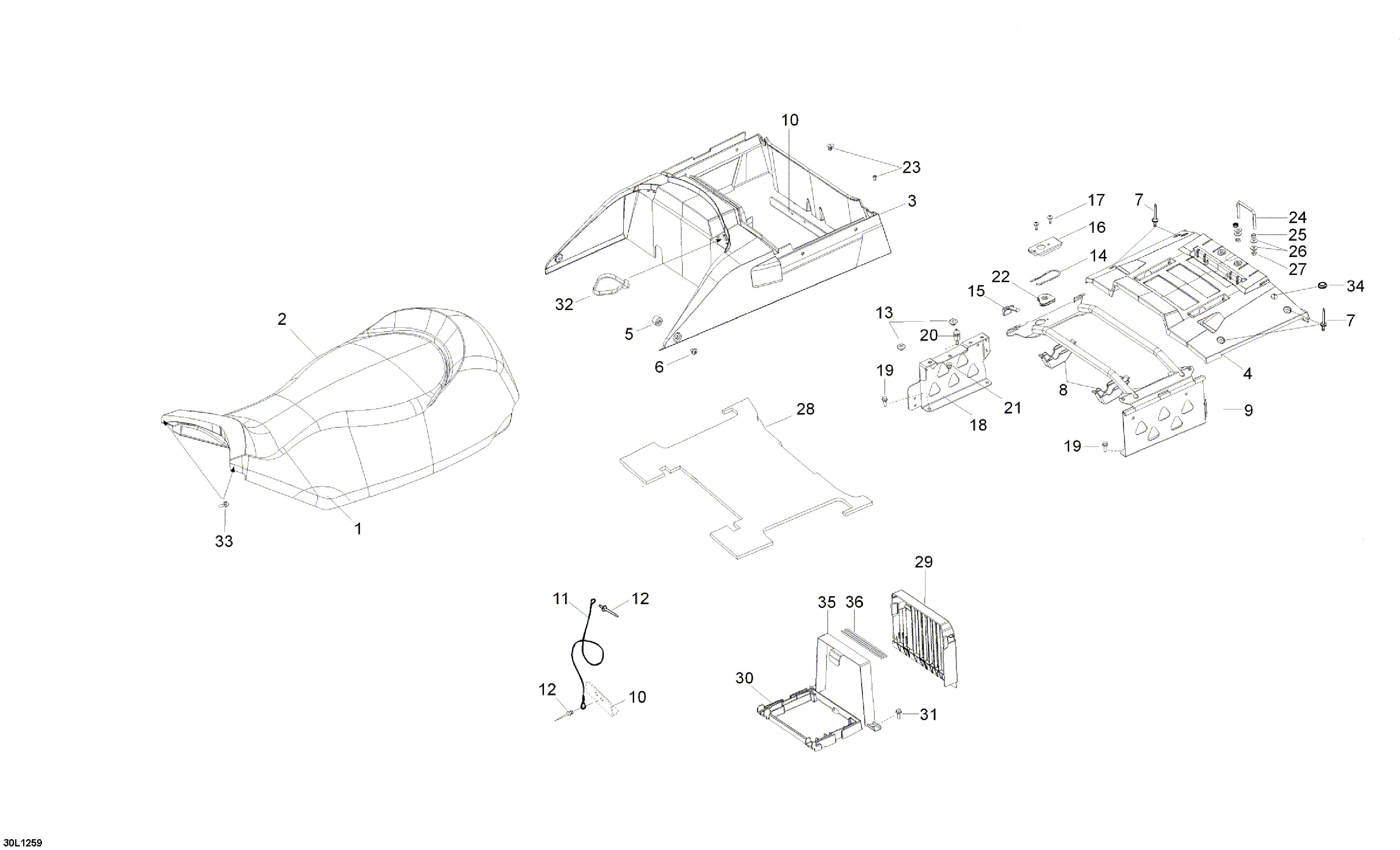

09- Seat для BRP Lynx 69 YETI 600 ACE - 2012
-
№АртикулНазвание
-
1510005316 Seat Foam (GRAND)Seat Foam (GRAND)
-
2510005327 Front Cover SeatFront Cover Seat
-
3510004874 Storage Box XUStorage Box XU
-
4510005604 Cover Storage Box XU 12Cover Storage Box XU 12
-
5510005147 BushingBushing
-
6250000389 Screw M6 X 12Screw M6 X 12
-
7293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
8510004999 CoverCover
-
9510004951 Fastening Tube PaintFastening Tube Paint
-
10510005156 Cable Support PlateCable Support Plate
-
11546777 Retainer CableRetainer Cable
-
12390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
13605452114 PlugPlug
-
14269700017 Latch SpringLatch Spring
-
15510005072 PullerPuller
-
16510005112 Lock Pin CoverLock Pin Cover
-
17732600030 ScrewScrew
-
18510004998 Locking Plate (Frame)Locking Plate (Frame)
-
19207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
20605452035 Lock PinLock Pin
-
21233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
22510005044 Lock Pin GuideLock Pin Guide
-
23293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
24510004876 Fastener PinFastener Pin
-
25250000135 Hex. Nut M6Hex. Nut M6
-
2620117 WasherWasher
-
27232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
28510005043 FoamFoam
-
29510005079 Battery CoverBattery Cover
-
30515176804 Battery SupportBattery Support
-
31207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
32605627000 Tie RapTie Rap
-
33732600030 ScrewScrew
-
34572051500 CapCap
-
35510005250 Battery StrapBattery Strap
-
36605356094 Strap CoverStrap Cover
