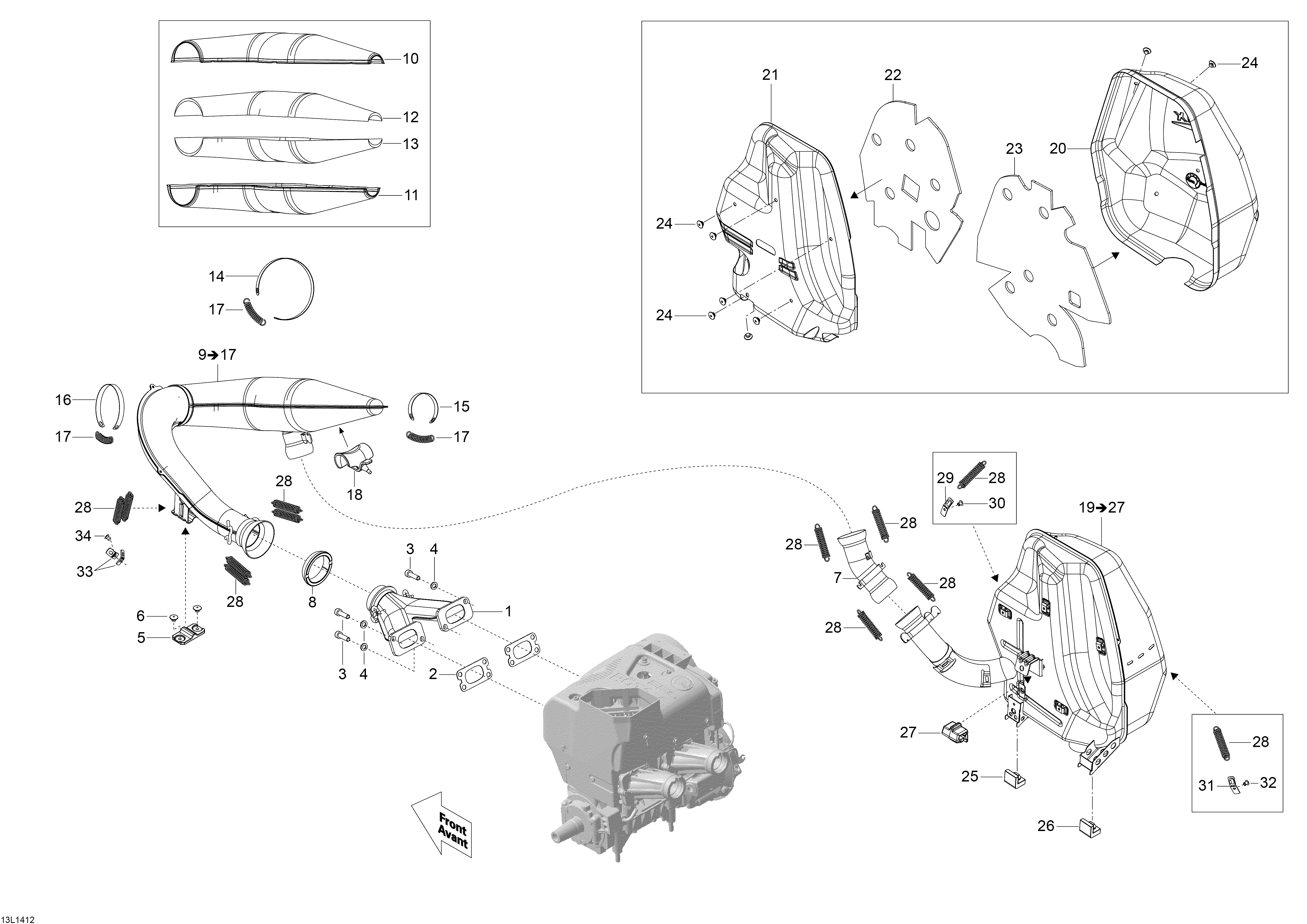

01- Exhaust System для BRP Lynx Rave 550 - 2014
-
№АртикулНазвание
-
1420673065 Exhaust ManifoldExhaust Manifold
-
2420831849 Gasket 1.0mmGasket 1.0mm
-
3205083044 Socket Head Screw M8 x 30Socket Head Screw M8 x 30
-
4250200111 WasherWasher
-
5514054617 BumperBumper
-
6293150103 Pop Rivet 3/16Pop Rivet 3/16
-
7514054411 Exhaust ElbowExhaust Elbow
-
8514053644 Exhaust GasketExhaust Gasket
-
9514054414 Calibrated Tube Ass'y. Includes 9 To 17Calibrated Tube Ass'y. Includes 9 To 17
-
10514054208 Rear Upper Half EnvelopeRear Upper Half Envelope
-
11514054210 Rear Lower Half EnvellopeRear Lower Half Envellope
-
12514054244 Upper Insulating WoolUpper Insulating Wool
-
13514054243 Lower Insulating WoolLower Insulating Wool
-
14514053502 Retaining StrapRetaining Strap
-
15514053491 Retaining StrapRetaining Strap
-
16514053498 Retaining StrapRetaining Strap
-
17514053643 SpringSpring
-
18514054513 BumperBumper
-
19514054978 Muffler Ass'y. Includes 19 To 27Muffler Ass'y. Includes 19 To 27
-
20514054984 RH DeflectorRH Deflector
-
21514054979 LH DeflectorLH Deflector
-
22514054421 LH Insulating WoolLH Insulating Wool
-
23514054711 RH Insulating WoolRH Insulating Wool
-
24390910000 Pop Rivet 3/16Pop Rivet 3/16
-
25514054274 Lower StopperLower Stopper
-
26514054496 Lower StopperLower Stopper
-
27514054606 Upper StopperUpper Stopper
-
28415107100 SpringSpring
-
29514054974 Spring BracketSpring Bracket
-
30390402200 Avex RivetAvex Rivet
-
31514054974 Spring BracketSpring Bracket
-
32390402200 Pop Rivet 3/16Pop Rivet 3/16
-
33514053436 Spring BracketSpring Bracket
-
34390909100 RivetRivet
