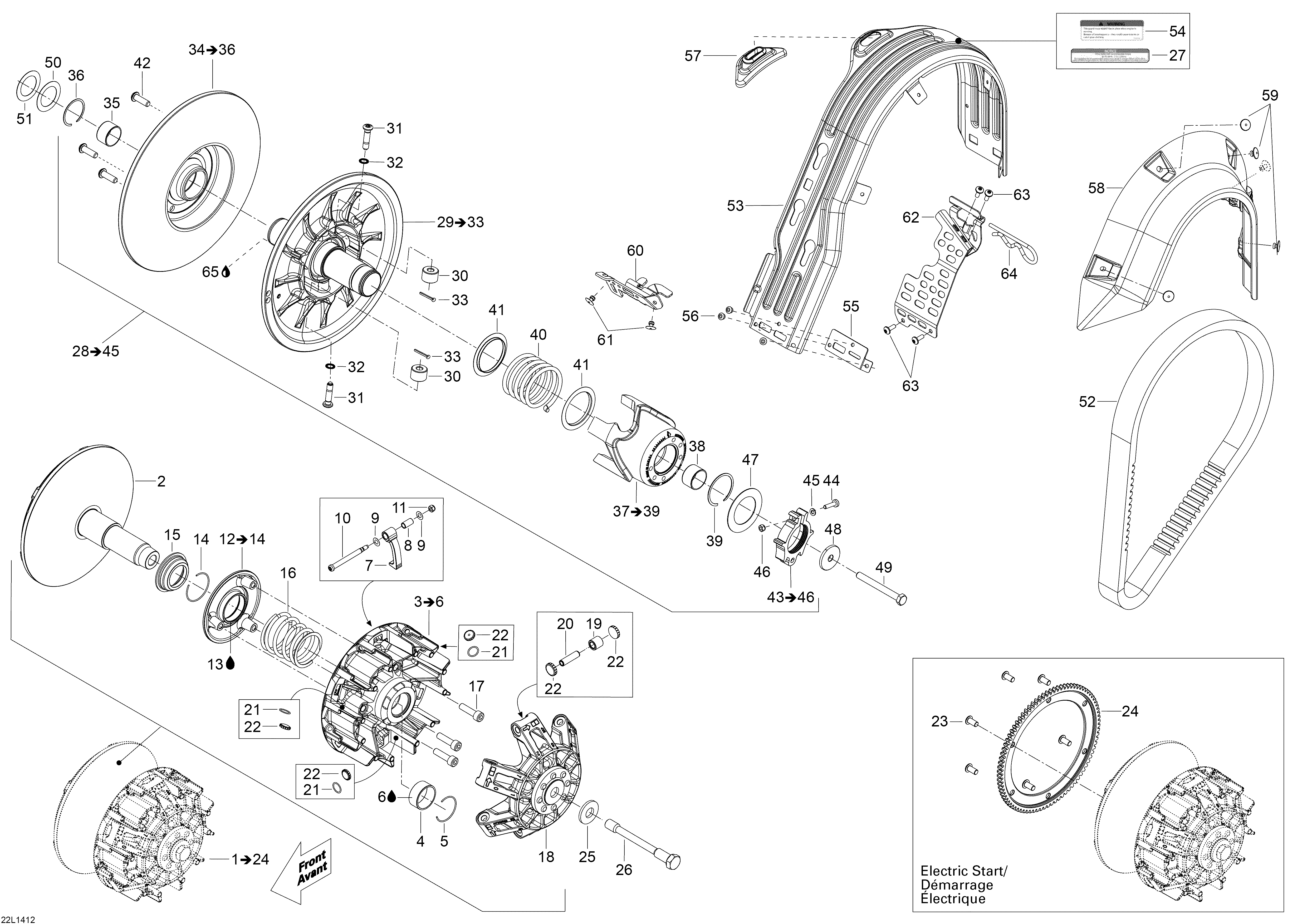

05- Pulley System для BRP Lynx Rave 550 - 2014
-
№АртикулНазвание
-
2417223534 Fixed Flange Ass'yFixed Flange Ass'y
-
3417223606 Sliding Flange Ass'y. Includes 3 To 6Sliding Flange Ass'y. Includes 3 To 6
-
4293350079 BushingBushing
-
5293370065 CirclipCirclip
-
6619600012 Loctite 609, 50 mlLoctite 609, 50 ml
-
7417223605 RampRamp
-
8293350078 BushingBushing
-
9417223255 Thrust WasherThrust Washer
-
10417223694 Axle RampAxle Ramp
-
11232551414 Lock Nut M5Lock Nut M5
-
12417223615 Sliding Adapter Ass'y. Includes 12 To 14Sliding Adapter Ass'y. Includes 12 To 14
-
13619600012 Loctite 609, 50 mlLoctite 609, 50 ml
-
14293370063 CirclipCirclip
-
15417223155 Spring SeatSpring Seat
-
16417223315 Spring (Red / White, 356-756N)Spring (Red / White, 356-756N)
-
17250000473 Hex. Socket Head ScrewHex. Socket Head Screw
-
18417223778 Governor Cup Ass'yGovernor Cup Ass'y
-
19417223767 RollerRoller
-
20417223257 Roller AxleRoller Axle
-
21293300169 O RingO Ring
-
22417223919 Slider ShoeSlider Shoe
-
23250000243 Button Head Torx Screw M8 x 16Button Head Torx Screw M8 x 16
-
24417223476 Ring GearRing Gear
-
25250200006 Spring WasherSpring Washer
-
26417300407 Drive Pulley BoltDrive Pulley Bolt
-
27516005503 Decal, Notice, Drive Pulley BoltDecal, Notice, Drive Pulley Bolt
-
29417127392 Fixed Flange Ass'y. Includes 29 To 33Fixed Flange Ass'y. Includes 29 To 33
-
30417127016 Roller, VespelRoller, Vespel
-
31417127259 StudStud
-
32250200009 Lock WasherLock Washer
-
33250400061 Spring Pin M3 x 18Spring Pin M3 x 18
-
34417127366 Sliding Flange Ass'y. Includes 34 To 36Sliding Flange Ass'y. Includes 34 To 36
-
35417127318 BushingBushing
-
36293370049 CirclipCirclip
-
37417127319 Cam Ass'y (47/44?). Includes 37 To 39Cam Ass'y (47/44?). Includes 37 To 39
-
38417127318 BushingBushing
-
39293370049 CirclipCirclip
-
40417127061 Spring (Brown / Brown, 800N)Spring (Brown / Brown, 800N)
-
41417127116 Swivel AbutmentSwivel Abutment
-
42250000283 Torx Screw M8 x 25, Scotch GripTorx Screw M8 x 25, Scotch Grip
-
43415129604 Pulley Adjuster Ass'y. Includes 43 To 46Pulley Adjuster Ass'y. Includes 43 To 46
-
44205052544 Phillips Screw M5 x 20Phillips Screw M5 x 20
-
45234051410 Flat Washer M5Flat Washer M5
-
46232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
47417127155 WasherWasher
-
48517302322 Strength WasherStrength Washer
-
49207287544 Hex. Cap Screw M8 x 75Hex. Cap Screw M8 x 75
-
50417300265 Spacer. (Adjustment Part, Use If Needed)Spacer. (Adjustment Part, Use If Needed)
-
51504112000 Shim. (Adjustment Part, Use If Needed)Shim. (Adjustment Part, Use If Needed)
-
52414860700 Drive BeltDrive Belt
-
53417300382 Belt GuardBelt Guard
-
54516004649 Security LabelSecurity Label
-
55417300380 ReinforcementReinforcement
-
56390909200 RivetRivet
-
57417300381 GuideGuide
-
58417300356 Side ProtectorSide Protector
-
59293150103 Pop Rivet 3/16Pop Rivet 3/16
-
60417300386 BracketBracket
-
61293150104 Pop Rivet 3/16Pop Rivet 3/16
-
62417300448 Belt Guard BracketBelt Guard Bracket
-
63250000145 Torx Truss M6 x 14Torx Truss M6 x 14
-
64114045200 Hair PinHair Pin
-
65619600013 Loctite 8151 (Antiseize), 400ml SprayLoctite 8151 (Antiseize), 400ml Spray
