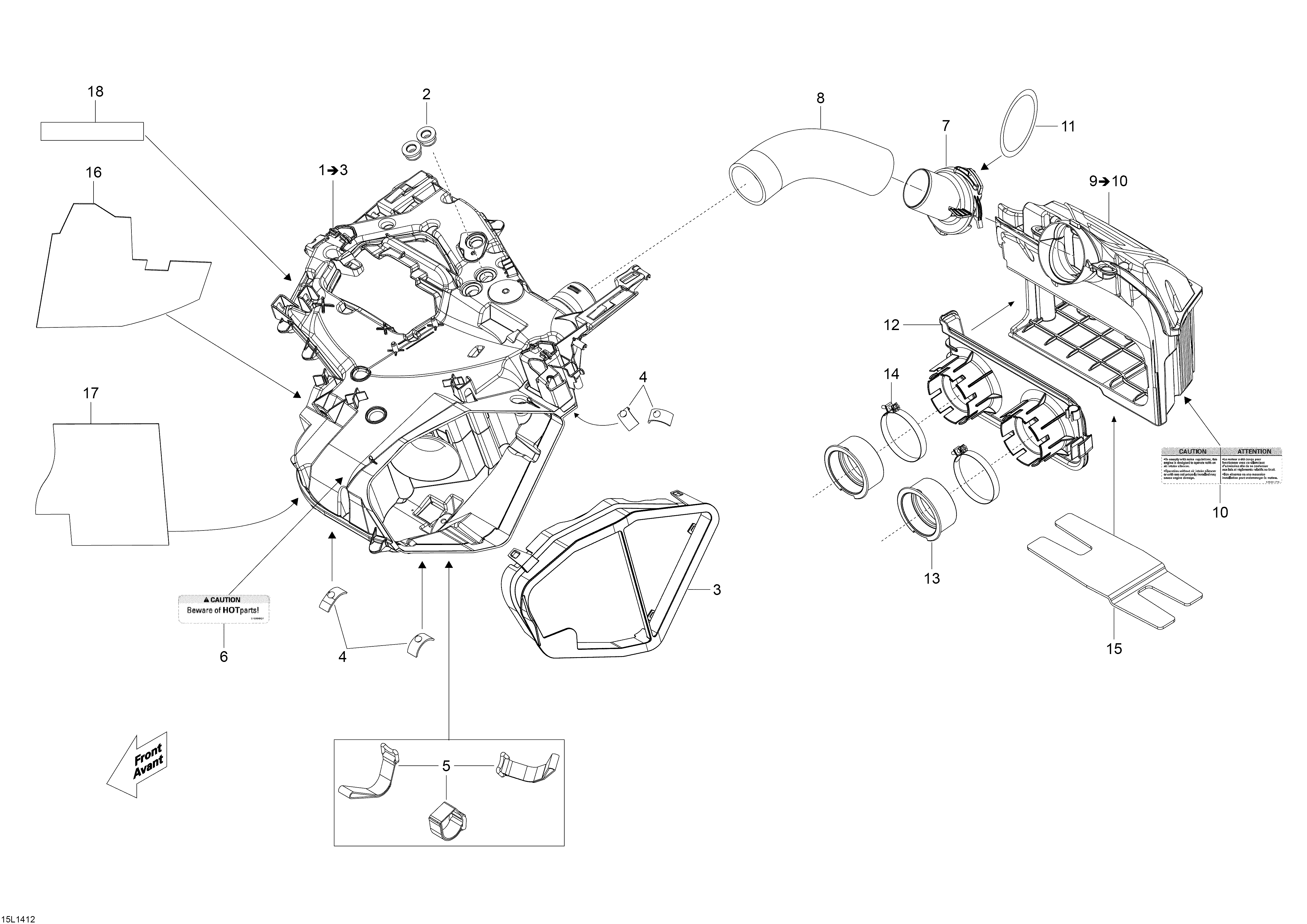

02- Air Intake System для BRP Lynx Rave 550 - 2014
-
№АртикулНазвание
-
1508000712 Secondary Chamber Ass'y. Includes 1 To 3Secondary Chamber Ass'y. Includes 1 To 3
-
2508000574 GrommetGrommet
-
3508000568 Air FilterAir Filter
-
4508000537 Rubber StopperRubber Stopper
-
5508000532 Strip VelcroStrip Velcro
-
6516004651 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
7508000562 LinkLink
-
8508000406 TubeTube
-
9508000680 Primary Chamber Ass'y. Includes 9 To 10Primary Chamber Ass'y. Includes 9 To 10
-
10516003371 Caution Label, Air IntakeCaution Label, Air Intake
-
11293300115 O RingO Ring
-
12508000564 Adapter PlateAdapter Plate
-
13508000594 Air Intake AdapterAir Intake Adapter
-
14508000369 ClampClamp
-
15508000674 Insulated FoamInsulated Foam
-
16508000684 Heat ShieldHeat Shield
-
17508000685 Heat ShieldHeat Shield
-
1844110 Al-Tape (0,25m)Al-Tape (0,25m)
