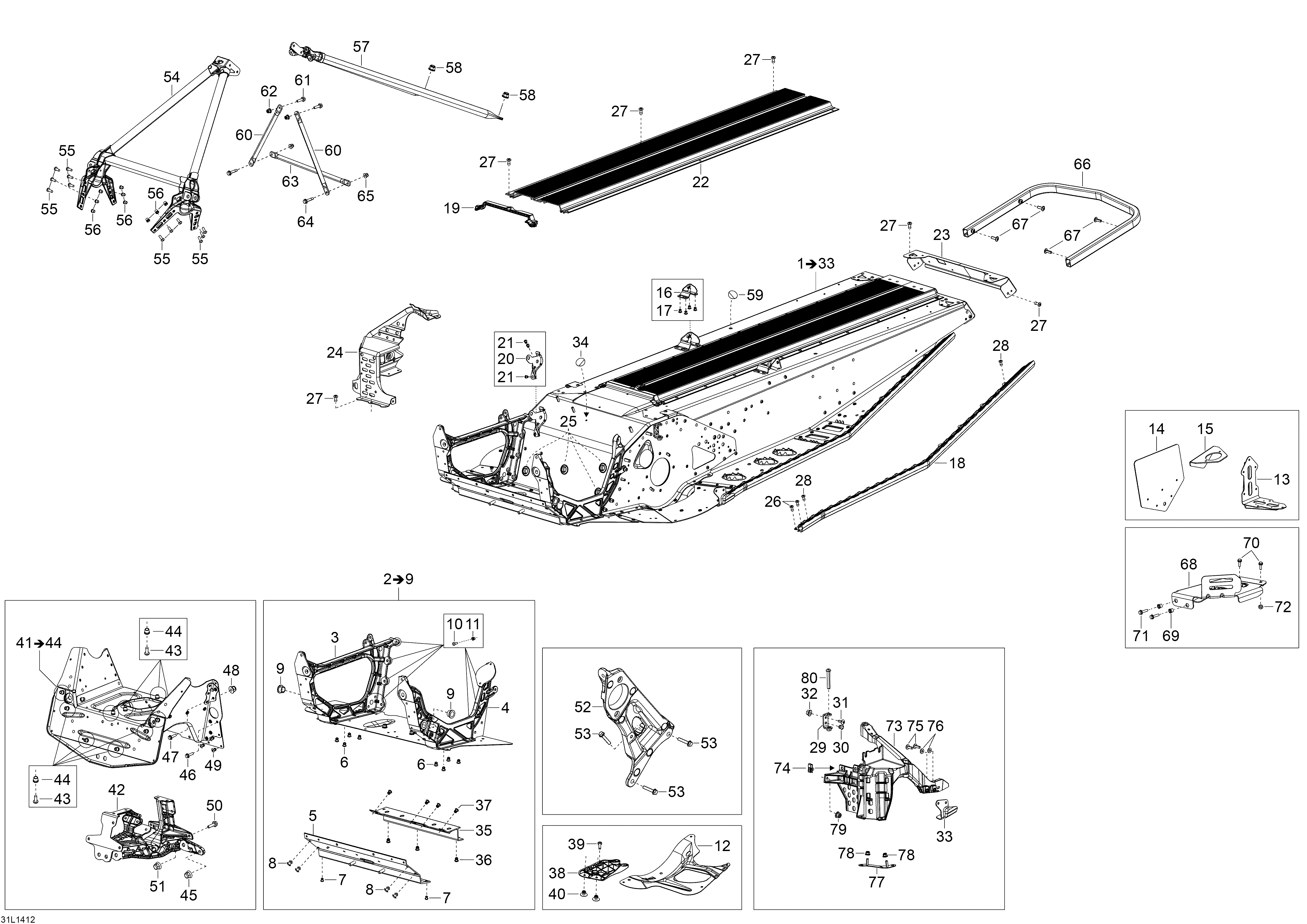

09- Frame для BRP Lynx Rave 550 - 2014
-
№АртикулНазвание
-
1518327220 Frame Ass?y. Includes 1 To 33Frame Ass?y. Includes 1 To 33
-
2518326190 E Module. Includes 2 To 9E Module. Includes 2 To 9
-
3518326795 Member RHMember RH
-
4518325558 Member LHMember LH
-
5518325818 Front MemberFront Member
-
6390909100 RivetRivet
-
7293150120 RivetRivet
-
8293150119 RivetRivet
-
9505072690 BushingBushing
-
10207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
11233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
12518324874 Reinforcement RHReinforcement RH
-
12518324875 Reinforcement LHReinforcement LH
-
13518326038 Angle ReinforcementAngle Reinforcement
-
16518326421 Rear Base RHRear Base RH
-
16518326443 Rear Base LHRear Base LH
-
17293150119 RivetRivet
-
18518325693 Roller LHRoller LH
-
18518325694 Roller RHRoller RH
-
19518326656 SealSeal
-
20518325559 Engine Support RHEngine Support RH
-
21293150096 RivetRivet
-
23518326227 Rear CapRear Cap
-
24518327863 Stirrup RHStirrup RH
-
25293730052 Black PlugBlack Plug
-
26390402300 Pop Rivet 3/16Pop Rivet 3/16
-
27390909200 RivetRivet
-
28390909100 RivetRivet
-
29518326961 AttachAttach
-
30293150147 RivetRivet
-
31250000534 Torx Truss M6 x 16Torx Truss M6 x 16
-
32233061414 Hex. Flange Nut M6Hex. Flange Nut M6
-
33518326960 SupportSupport
-
34518325560 Adhesive PatchAdhesive Patch
-
35518326719 Engine SupportEngine Support
-
36293150163 RivetRivet
-
37390909200 RivetRivet
-
38518325782 Deflector RHDeflector RH
-
38518325783 Deflector LHDeflector LH
-
39207561244 Hex. Flange Screw M6 x 12Hex. Flange Screw M6 x 12
-
40293150104 Pop Rivet 3/16Pop Rivet 3/16
-
41518326763 Cross Member. Includes 41 To 44Cross Member. Includes 41 To 44
-
42518327475 SupportSupport
-
43207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
44233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
45233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
46210262080 Forming Screw M6 x 20Forming Screw M6 x 20
-
47207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
48233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
49293150179 RivetRivet
-
50207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
51233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
52518326651 Pulley SupportPulley Support
-
53233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
54518326975 Front MemberFront Member
-
55207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
56233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
57518326685 Rear MemberRear Member
-
58233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
59518325560 Adhesive PatchAdhesive Patch
-
60518325114 SupportSupport
-
61207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
62233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
63518325115 Upper ColumnUpper Column
-
64207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
65233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
66518324980 Rear BumperRear Bumper
-
67250000402 Torx Truss M6 x 18Torx Truss M6 x 18
-
68518327127 Footrest LHFootrest LH
-
68518326415 Footrest RHFootrest RH
-
69605636003 Clinch Nut M6Clinch Nut M6
-
70207161244 Hex. Cap Screw M6 x 12Hex. Cap Screw M6 x 12
-
71207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
72232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
73518326820 Stirrup LHStirrup LH
-
74250000079 Panel Nut M5Panel Nut M5
-
75250000402 Torx Truss M6 x 18Torx Truss M6 x 18
-
76250200039 Flat WasherFlat Washer
-
77518326986 AttachAttach
-
78233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
79233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
80250000535 Torx Truss M8 x 55Torx Truss M8 x 55
