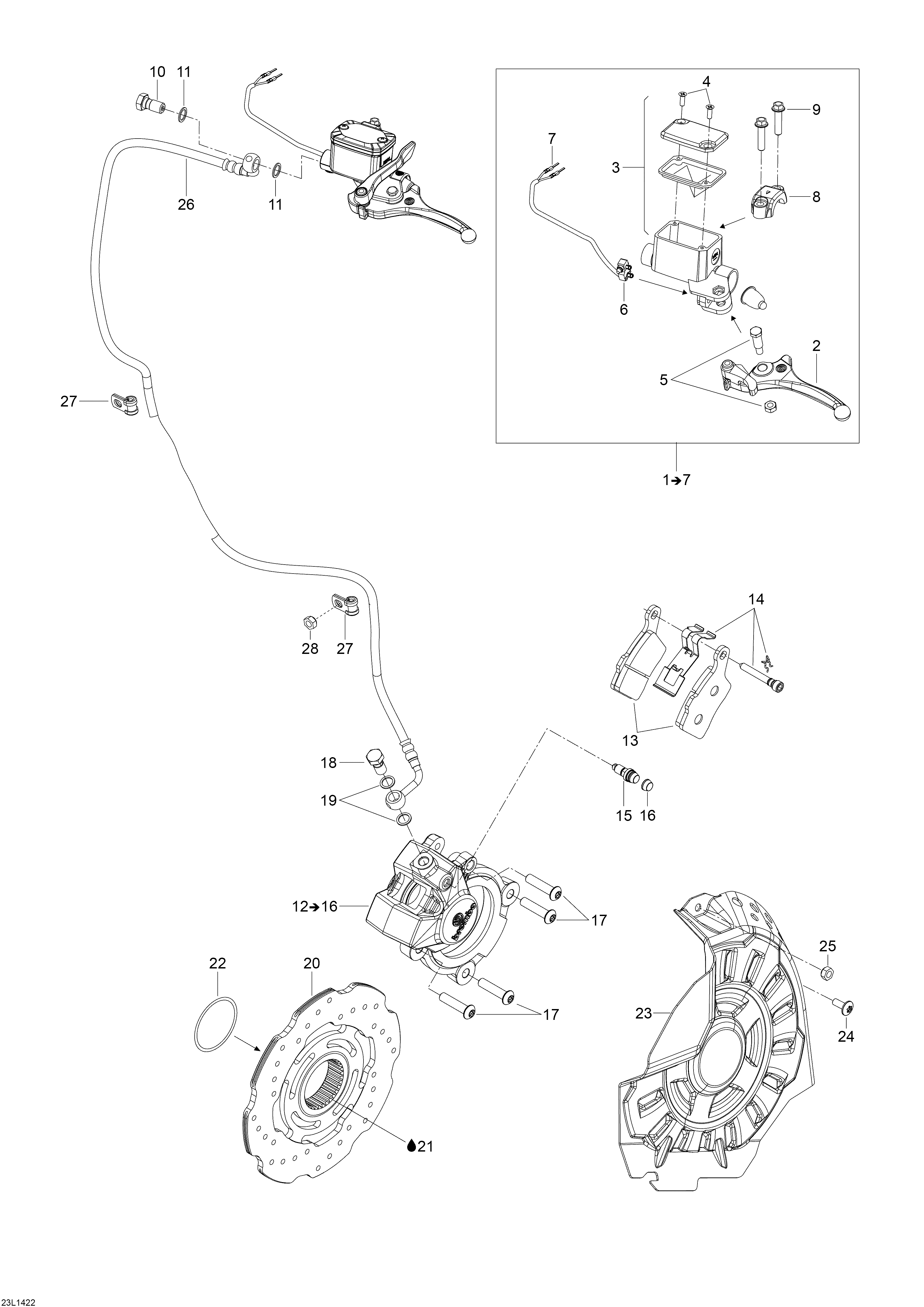

06- Hydraulic Brakes для BRP Lynx Rave RS 600 - 2014
-
№АртикулНазвание
-
1507032511 Master Cylinder Ass’y. Includes 1 To 7 (RS Kit)Master Cylinder Ass’y. Includes 1 To 7 (RS Kit)
-
2507032428 Lever. (RS Kit)Lever. (RS Kit)
-
3415029900 Cap. (RS Kit)Cap. (RS Kit)
-
3507032478 Reservoir Ass?y. Includes 3 To 4Reservoir Ass?y. Includes 3 To 4
-
4415129356 Screw M4 x 20Screw M4 x 20
-
5415030000 PinPin
-
6507032526 Microswitch. (RS Kit)Microswitch. (RS Kit)
-
7515175232 Male TerminalMale Terminal
-
8507032477 Clamp Kit. (RS Kit)Clamp Kit. (RS Kit)
-
9250000447 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
10507032551 Banjo BoltBanjo Bolt
-
11705600310 Copper WasherCopper Washer
-
12507032501 Brake Caliper Ass'y. Includes 12 To 16 (RS Kit)Brake Caliper Ass'y. Includes 12 To 16 (RS Kit)
-
13507032489 Brake Pads Kit. (RS Kit)Brake Pads Kit. (RS Kit)
-
14507032474 Pin, Clip, Spring KitPin, Clip, Spring Kit
-
15507032475 BleederBleeder
-
16414989700 BootBoot
-
17250000301 Torx Screw M8 x 35, Scotch GripTorx Screw M8 x 35, Scotch Grip
-
18507032551 Banjo BoltBanjo Bolt
-
19705600310 Copper WasherCopper Washer
-
20507032513 DiskDisk
-
21619600013 Loctite 8151 (Antiseize), 400ml SprayLoctite 8151 (Antiseize), 400ml Spray
-
22293300134 O RingO Ring
-
23507032546 Disk ProtectorDisk Protector
-
24250000365 Torx Screw M6 x 16Torx Screw M6 x 16
-
25233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
26507032528 HoseHose
-
27705600459 ClampClamp
-
28232561434 Elastic Stop Nut M6Elastic Stop Nut M6
