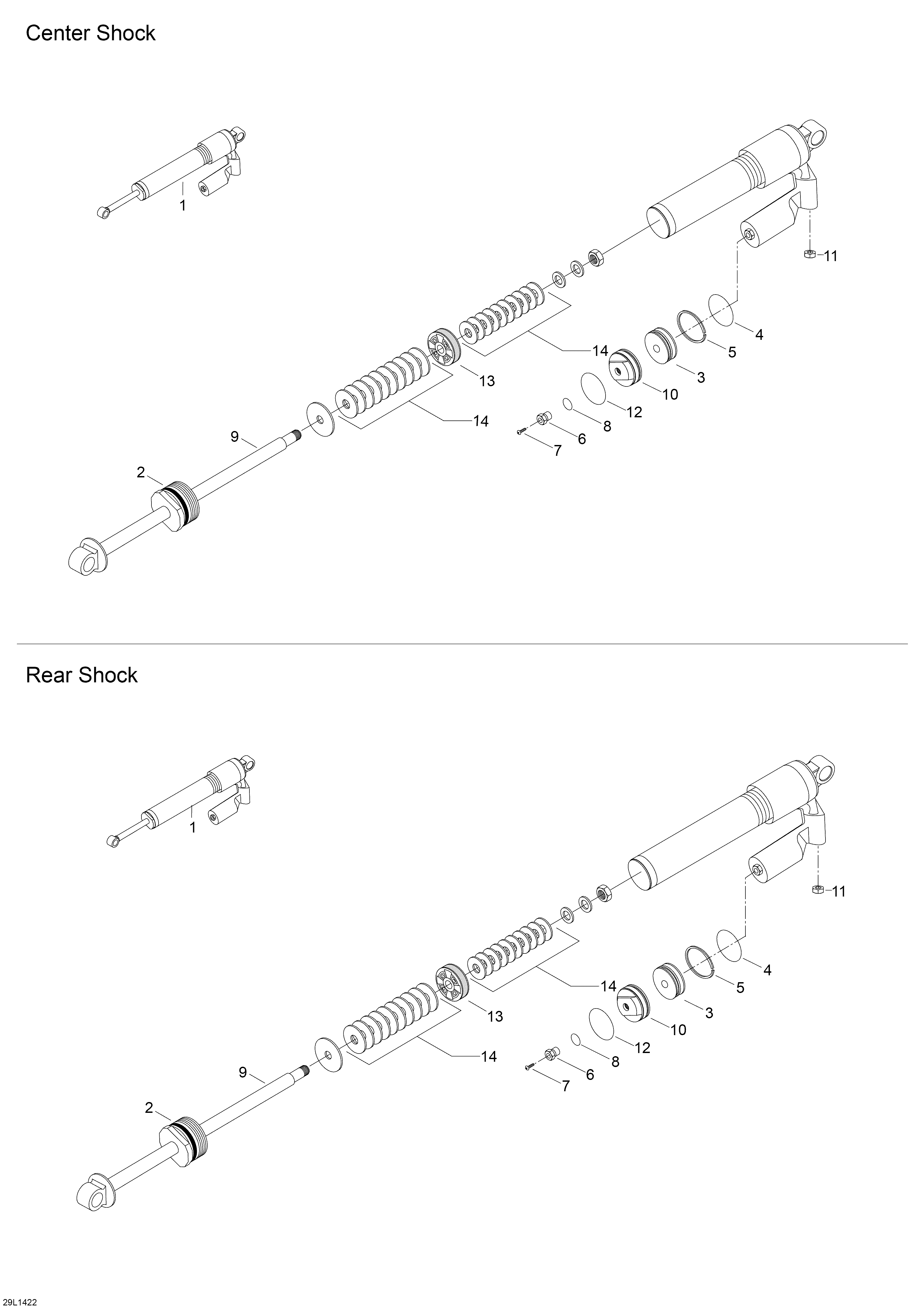

08- Rear Shocks для BRP Lynx Rave RS 600 - 2014
-
№АртикулНазвание
-
1619330003 Shock, front arm (cal.503193134)Shock, front arm (cal.503193134)
-
1619330003 Shock, front arm (cal.503193134)Shock, front arm (cal.503193134)
-
1619330003 Shock, front arm (cal.503193134)Shock, front arm (cal.503193134)
-
1619330005 Shock, rear arm (cal. 503193136)Shock, rear arm (cal. 503193136)
-
1619330005 Shock, rear arm (cal. 503193136)Shock, rear arm (cal. 503193136)
-
1619330005 Shock, rear arm (cal. 503193136)Shock, rear arm (cal. 503193136)
-
4415093807 O-ringO-ring
-
4415093807 O-ringO-ring
-
4415093807 O-ringO-ring
-
5503189006 Piston ringPiston ring
-
5503189006 Piston ringPiston ring
-
5503189006 Piston ringPiston ring
-
6505070398 Air valve ass'yAir valve ass'y
-
6505070398 Air valve ass'yAir valve ass'y
-
6505070398 Air valve ass'yAir valve ass'y
-
7505070399 ScrewScrew
-
7505070399 ScrewScrew
-
7505070399 ScrewScrew
-
8505070400 O-ringO-ring
-
8505070400 O-ringO-ring
-
8505070400 O-ringO-ring
-
10619300009 Seal carrier assySeal carrier assy
-
10619300009 Seal carrier assySeal carrier assy
-
10619300009 Seal carrier assySeal carrier assy
-
11619300015 Valve ass'yValve ass'y
-
11619300015 Valve ass'yValve ass'y
-
11619300015 Valve ass'yValve ass'y
-
12415093804 O-ringO-ring
-
12415093804 O-ringO-ring
-
12415093804 O-ringO-ring
-
13619300159 Piston 1.2 mmPiston 1.2 mm
-
13619300159 Piston 1.2 mmPiston 1.2 mm
-
13619300159 Piston 1.2 mmPiston 1.2 mm
-
13619300160 Piston 1.7 mmPiston 1.7 mm
-
13619300160 Piston 1.7 mmPiston 1.7 mm
-
13619300160 Piston 1.7 mmPiston 1.7 mm
-
13230039 Piston 2.0 mmPiston 2.0 mm
-
13230039 Piston 2.0 mmPiston 2.0 mm
-
13230039 Piston 2.0 mmPiston 2.0 mm
-
13230043 Piston 0 mm.Piston 0 mm.
-
13230043 Piston 0 mm.Piston 0 mm.
-
13230043 Piston 0 mm.Piston 0 mm.
-
14619300060 Shim 46 mm. 17 X 0,114Shim 46 mm. 17 X 0,114
-
14619300060 Shim 46 mm. 17 X 0,114Shim 46 mm. 17 X 0,114
-
14619300060 Shim 46 mm. 17 X 0,114Shim 46 mm. 17 X 0,114
-
14619300069 Shim 46 mm. 17 X 0,203Shim 46 mm. 17 X 0,203
-
14619300069 Shim 46 mm. 17 X 0,203Shim 46 mm. 17 X 0,203
-
14619300069 Shim 46 mm. 17 X 0,203Shim 46 mm. 17 X 0,203
-
14619300068 Shim 46 mm. 18 X 0,114Shim 46 mm. 18 X 0,114
-
14619300068 Shim 46 mm. 18 X 0,114Shim 46 mm. 18 X 0,114
-
14619300068 Shim 46 mm. 18 X 0,114Shim 46 mm. 18 X 0,114
-
14619300067 Shim 46 mm. 18 X 0,152Shim 46 mm. 18 X 0,152
-
14619300067 Shim 46 mm. 18 X 0,152Shim 46 mm. 18 X 0,152
-
14619300067 Shim 46 mm. 18 X 0,152Shim 46 mm. 18 X 0,152
-
14230029 Shim 46 mm. 20 X 0,114Shim 46 mm. 20 X 0,114
-
14230029 Shim 46 mm. 20 X 0,114Shim 46 mm. 20 X 0,114
-
14230029 Shim 46 mm. 20 X 0,114Shim 46 mm. 20 X 0,114
-
14230030 Shim 46 mm. 20 X 0,152Shim 46 mm. 20 X 0,152
-
14230030 Shim 46 mm. 20 X 0,152Shim 46 mm. 20 X 0,152
-
14230030 Shim 46 mm. 20 X 0,152Shim 46 mm. 20 X 0,152
-
14230031 Shim 46 mm. 20 X 0,203Shim 46 mm. 20 X 0,203
-
14230031 Shim 46 mm. 20 X 0,203Shim 46 mm. 20 X 0,203
-
14230031 Shim 46 mm. 20 X 0,203Shim 46 mm. 20 X 0,203
-
14230032 Shim 46 mm. 20 X 0,254Shim 46 mm. 20 X 0,254
-
14230032 Shim 46 mm. 20 X 0,254Shim 46 mm. 20 X 0,254
-
14230032 Shim 46 mm. 20 X 0,254Shim 46 mm. 20 X 0,254
-
14619300097 Shim 46 mm. 20 X 0,305Shim 46 mm. 20 X 0,305
-
14619300097 Shim 46 mm. 20 X 0,305Shim 46 mm. 20 X 0,305
-
14619300097 Shim 46 mm. 20 X 0,305Shim 46 mm. 20 X 0,305
-
14619300133 Shim 46 mm. 22 X 0,114Shim 46 mm. 22 X 0,114
-
14619300133 Shim 46 mm. 22 X 0,114Shim 46 mm. 22 X 0,114
-
14619300133 Shim 46 mm. 22 X 0,114Shim 46 mm. 22 X 0,114
-
14619300140 Shim 46 mm. 22 X 0,152Shim 46 mm. 22 X 0,152
-
14619300140 Shim 46 mm. 22 X 0,152Shim 46 mm. 22 X 0,152
-
14619300140 Shim 46 mm. 22 X 0,152Shim 46 mm. 22 X 0,152
-
14619300098 Shim 46 mm. 22 X 0,203Shim 46 mm. 22 X 0,203
-
14619300098 Shim 46 mm. 22 X 0,203Shim 46 mm. 22 X 0,203
-
14619300098 Shim 46 mm. 22 X 0,203Shim 46 mm. 22 X 0,203
-
14619300134 Shim 46 mm. 22 X 0,254Shim 46 mm. 22 X 0,254
-
14619300134 Shim 46 mm. 22 X 0,254Shim 46 mm. 22 X 0,254
-
14619300134 Shim 46 mm. 22 X 0,254Shim 46 mm. 22 X 0,254
-
14619300144 Shim 46 mm. 22 X 0,305Shim 46 mm. 22 X 0,305
-
14619300144 Shim 46 mm. 22 X 0,305Shim 46 mm. 22 X 0,305
-
14619300144 Shim 46 mm. 22 X 0,305Shim 46 mm. 22 X 0,305
-
14619300145 Shim 46 mm. 24 X 0,114Shim 46 mm. 24 X 0,114
-
14619300145 Shim 46 mm. 24 X 0,114Shim 46 mm. 24 X 0,114
-
14619300145 Shim 46 mm. 24 X 0,114Shim 46 mm. 24 X 0,114
-
14619300146 Shim 46 mm. 24 X 0,152Shim 46 mm. 24 X 0,152
-
14619300146 Shim 46 mm. 24 X 0,152Shim 46 mm. 24 X 0,152
-
14619300146 Shim 46 mm. 24 X 0,152Shim 46 mm. 24 X 0,152
-
14619300147 Shim 46 mm. 24 X 0,203Shim 46 mm. 24 X 0,203
-
14619300147 Shim 46 mm. 24 X 0,203Shim 46 mm. 24 X 0,203
-
14619300147 Shim 46 mm. 24 X 0,203Shim 46 mm. 24 X 0,203
-
14619300095 Shim 46 mm. 24 X 0,254Shim 46 mm. 24 X 0,254
-
14619300095 Shim 46 mm. 24 X 0,254Shim 46 mm. 24 X 0,254
-
14619300095 Shim 46 mm. 24 X 0,254Shim 46 mm. 24 X 0,254
-
14619300148 Shim 46 mm. 24 X 0,305Shim 46 mm. 24 X 0,305
-
14619300148 Shim 46 mm. 24 X 0,305Shim 46 mm. 24 X 0,305
-
14619300148 Shim 46 mm. 24 X 0,305Shim 46 mm. 24 X 0,305
-
14619300149 Shim 46 mm. 26 X 0,114Shim 46 mm. 26 X 0,114
-
14619300149 Shim 46 mm. 26 X 0,114Shim 46 mm. 26 X 0,114
-
14619300149 Shim 46 mm. 26 X 0,114Shim 46 mm. 26 X 0,114
-
14619300141 Shim 46 mm. 26 X 0,152Shim 46 mm. 26 X 0,152
-
14619300141 Shim 46 mm. 26 X 0,152Shim 46 mm. 26 X 0,152
-
14619300141 Shim 46 mm. 26 X 0,152Shim 46 mm. 26 X 0,152
-
14619300150 Shim 46 mm. 26 X 0,203Shim 46 mm. 26 X 0,203
-
14619300150 Shim 46 mm. 26 X 0,203Shim 46 mm. 26 X 0,203
-
14619300150 Shim 46 mm. 26 X 0,203Shim 46 mm. 26 X 0,203
-
14619300099 Shim 46 mm. 26 X 0,254Shim 46 mm. 26 X 0,254
-
14619300099 Shim 46 mm. 26 X 0,254Shim 46 mm. 26 X 0,254
-
14619300099 Shim 46 mm. 26 X 0,254Shim 46 mm. 26 X 0,254
-
14619300100 Shim 46 mm. 26 X 0,305Shim 46 mm. 26 X 0,305
-
14619300100 Shim 46 mm. 26 X 0,305Shim 46 mm. 26 X 0,305
-
14619300100 Shim 46 mm. 26 X 0,305Shim 46 mm. 26 X 0,305
-
14619300101 Shim 46 mm. 28 X 0,114Shim 46 mm. 28 X 0,114
-
14619300101 Shim 46 mm. 28 X 0,114Shim 46 mm. 28 X 0,114
-
14619300101 Shim 46 mm. 28 X 0,114Shim 46 mm. 28 X 0,114
-
14619300151 Shim 46 mm. 28 X 0,152Shim 46 mm. 28 X 0,152
-
14619300151 Shim 46 mm. 28 X 0,152Shim 46 mm. 28 X 0,152
-
14619300151 Shim 46 mm. 28 X 0,152Shim 46 mm. 28 X 0,152
-
14619300102 Shim 46 mm. 28 X 0,203Shim 46 mm. 28 X 0,203
-
14619300102 Shim 46 mm. 28 X 0,203Shim 46 mm. 28 X 0,203
-
14619300102 Shim 46 mm. 28 X 0,203Shim 46 mm. 28 X 0,203
-
14619300103 Shim 46 mm. 28 X 0,254Shim 46 mm. 28 X 0,254
-
14619300103 Shim 46 mm. 28 X 0,254Shim 46 mm. 28 X 0,254
-
14619300103 Shim 46 mm. 28 X 0,254Shim 46 mm. 28 X 0,254
-
14619300152 Shim 46 mm. 28 X 0,305Shim 46 mm. 28 X 0,305
-
14619300152 Shim 46 mm. 28 X 0,305Shim 46 mm. 28 X 0,305
-
14619300152 Shim 46 mm. 28 X 0,305Shim 46 mm. 28 X 0,305
-
14619300135 Shim 46 mm. 30 X 0,114Shim 46 mm. 30 X 0,114
-
14619300135 Shim 46 mm. 30 X 0,114Shim 46 mm. 30 X 0,114
-
14619300135 Shim 46 mm. 30 X 0,114Shim 46 mm. 30 X 0,114
-
14619300104 Shim 46 mm. 30 X 0,152Shim 46 mm. 30 X 0,152
-
14619300104 Shim 46 mm. 30 X 0,152Shim 46 mm. 30 X 0,152
-
14619300104 Shim 46 mm. 30 X 0,152Shim 46 mm. 30 X 0,152
-
14619300154 Shim 46 mm. 30 X 0,203Shim 46 mm. 30 X 0,203
-
14619300154 Shim 46 mm. 30 X 0,203Shim 46 mm. 30 X 0,203
-
14619300154 Shim 46 mm. 30 X 0,203Shim 46 mm. 30 X 0,203
-
14619300113 Shim 46 mm. 30 X 0,254Shim 46 mm. 30 X 0,254
-
14619300113 Shim 46 mm. 30 X 0,254Shim 46 mm. 30 X 0,254
-
14619300113 Shim 46 mm. 30 X 0,254Shim 46 mm. 30 X 0,254
-
14619300056 Shim 46 mm. 30 X 0,305Shim 46 mm. 30 X 0,305
-
14619300056 Shim 46 mm. 30 X 0,305Shim 46 mm. 30 X 0,305
-
14619300056 Shim 46 mm. 30 X 0,305Shim 46 mm. 30 X 0,305
-
14230082 Shim 46 mm. 32 X 0,114Shim 46 mm. 32 X 0,114
-
14230082 Shim 46 mm. 32 X 0,114Shim 46 mm. 32 X 0,114
-
14230082 Shim 46 mm. 32 X 0,114Shim 46 mm. 32 X 0,114
-
14619300137 Shim 46 mm. 32 X 0,152Shim 46 mm. 32 X 0,152
-
14619300137 Shim 46 mm. 32 X 0,152Shim 46 mm. 32 X 0,152
-
14619300137 Shim 46 mm. 32 X 0,152Shim 46 mm. 32 X 0,152
-
14619300138 Shim 46 mm. 32 X 0,203Shim 46 mm. 32 X 0,203
-
14619300138 Shim 46 mm. 32 X 0,203Shim 46 mm. 32 X 0,203
-
14619300138 Shim 46 mm. 32 X 0,203Shim 46 mm. 32 X 0,203
-
14619300059 Shim 46 mm. 32 X 0,254Shim 46 mm. 32 X 0,254
-
14619300059 Shim 46 mm. 32 X 0,254Shim 46 mm. 32 X 0,254
-
14619300059 Shim 46 mm. 32 X 0,254Shim 46 mm. 32 X 0,254
-
14619300022 Shim 46 mm. 32 X 0,305Shim 46 mm. 32 X 0,305
-
14619300022 Shim 46 mm. 32 X 0,305Shim 46 mm. 32 X 0,305
-
14619300022 Shim 46 mm. 32 X 0,305Shim 46 mm. 32 X 0,305
-
14230033 Shim 46 mm. 34 X 0,114Shim 46 mm. 34 X 0,114
-
14230033 Shim 46 mm. 34 X 0,114Shim 46 mm. 34 X 0,114
-
14230033 Shim 46 mm. 34 X 0,114Shim 46 mm. 34 X 0,114
-
14230034 Shim 46 mm. 34 X 0,152Shim 46 mm. 34 X 0,152
-
14230034 Shim 46 mm. 34 X 0,152Shim 46 mm. 34 X 0,152
-
14230034 Shim 46 mm. 34 X 0,152Shim 46 mm. 34 X 0,152
-
14230035 Shim 46 mm. 34 X 0,203Shim 46 mm. 34 X 0,203
-
14230035 Shim 46 mm. 34 X 0,203Shim 46 mm. 34 X 0,203
-
14230035 Shim 46 mm. 34 X 0,203Shim 46 mm. 34 X 0,203
-
14230036 Shim 46 mm. 34 X 0,254Shim 46 mm. 34 X 0,254
-
14230036 Shim 46 mm. 34 X 0,254Shim 46 mm. 34 X 0,254
-
14230036 Shim 46 mm. 34 X 0,254Shim 46 mm. 34 X 0,254
-
14619300070 Shim 46 mm. 34 X 0,305Shim 46 mm. 34 X 0,305
-
14619300070 Shim 46 mm. 34 X 0,305Shim 46 mm. 34 X 0,305
-
14619300070 Shim 46 mm. 34 X 0,305Shim 46 mm. 34 X 0,305
-
14230037 Shim 46 mm. 36 X 0,114Shim 46 mm. 36 X 0,114
-
14230037 Shim 46 mm. 36 X 0,114Shim 46 mm. 36 X 0,114
-
14230037 Shim 46 mm. 36 X 0,114Shim 46 mm. 36 X 0,114
-
14619300155 Shim 46 mm. 36 X 0,152Shim 46 mm. 36 X 0,152
-
14619300155 Shim 46 mm. 36 X 0,152Shim 46 mm. 36 X 0,152
-
14619300155 Shim 46 mm. 36 X 0,152Shim 46 mm. 36 X 0,152
-
14619300142 Shim 46 mm. 36 X 0,203Shim 46 mm. 36 X 0,203
-
14619300142 Shim 46 mm. 36 X 0,203Shim 46 mm. 36 X 0,203
-
14619300142 Shim 46 mm. 36 X 0,203Shim 46 mm. 36 X 0,203
-
14503189038 Shim 46 mm. 36 X 0,254Shim 46 mm. 36 X 0,254
-
14503189038 Shim 46 mm. 36 X 0,254Shim 46 mm. 36 X 0,254
-
14503189038 Shim 46 mm. 36 X 0,254Shim 46 mm. 36 X 0,254
-
14619300105 Shim 46 mm. 36 X 0,305Shim 46 mm. 36 X 0,305
-
14619300105 Shim 46 mm. 36 X 0,305Shim 46 mm. 36 X 0,305
-
14619300105 Shim 46 mm. 36 X 0,305Shim 46 mm. 36 X 0,305
-
14230040 Shim 46 mm. 38 X 0,152Shim 46 mm. 38 X 0,152
-
14230040 Shim 46 mm. 38 X 0,152Shim 46 mm. 38 X 0,152
-
14230040 Shim 46 mm. 38 X 0,152Shim 46 mm. 38 X 0,152
-
14230041 Shim 46 mm. 38 X 0,203Shim 46 mm. 38 X 0,203
-
14230041 Shim 46 mm. 38 X 0,203Shim 46 mm. 38 X 0,203
-
14230041 Shim 46 mm. 38 X 0,203Shim 46 mm. 38 X 0,203
-
14230042 Shim 46 mm. 38 X 0,254Shim 46 mm. 38 X 0,254
-
14230042 Shim 46 mm. 38 X 0,254Shim 46 mm. 38 X 0,254
-
14230042 Shim 46 mm. 38 X 0,254Shim 46 mm. 38 X 0,254
-
14619300106 Shim 46 mm. 38 X 0,305Shim 46 mm. 38 X 0,305
-
14619300106 Shim 46 mm. 38 X 0,305Shim 46 mm. 38 X 0,305
-
14619300106 Shim 46 mm. 38 X 0,305Shim 46 mm. 38 X 0,305
-
14619300157 Shim 46 mm. 40 X 0,152Shim 46 mm. 40 X 0,152
-
14619300157 Shim 46 mm. 40 X 0,152Shim 46 mm. 40 X 0,152
-
14619300157 Shim 46 mm. 40 X 0,152Shim 46 mm. 40 X 0,152
-
14619300112 Shim 46 mm. 40 X 0,203Shim 46 mm. 40 X 0,203
-
14619300112 Shim 46 mm. 40 X 0,203Shim 46 mm. 40 X 0,203
-
14619300112 Shim 46 mm. 40 X 0,203Shim 46 mm. 40 X 0,203
-
14619300136 Shim 46 mm. 40 X 0,254Shim 46 mm. 40 X 0,254
-
14619300136 Shim 46 mm. 40 X 0,254Shim 46 mm. 40 X 0,254
-
14619300136 Shim 46 mm. 40 X 0,254Shim 46 mm. 40 X 0,254
-
14619300107 Shim 46 mm. 40 X 0,305Shim 46 mm. 40 X 0,305
-
14619300107 Shim 46 mm. 40 X 0,305Shim 46 mm. 40 X 0,305
-
14619300107 Shim 46 mm. 40 X 0,305Shim 46 mm. 40 X 0,305
Все узлы модели:
- 00- Model Numbers
- 01- Cooling System
- 01- Crankcase
- 01- Crankshaft And Pistons
- 01- Cylinder, Exh. Manifold And Reed Valve
- 01- Engine And Engine Support
- 01- Exhaust System
- 02- Air Intake System
- 02- Carburetor
- 02- Fuel System
- 03- Magneto
- 04- Rewind Starter
- 05- Drive System
- 05- Driven Pulley
- 05- Pulley System
- 06- Hydraulic Brakes
- 07- Front Suspension And Ski
- 07- Ski Shocks
- 07- Steering System
- • 08- Rear Shocks
- 08- Rear Suspension
- 08- Rear Suspension
- 09- Bottom Pan
- 09- Decals
- 09- Frame
- 09- Hood
- 09- Seat
- 09- Utilities
- 10- Electrical Harness
- 10- Electrical System
