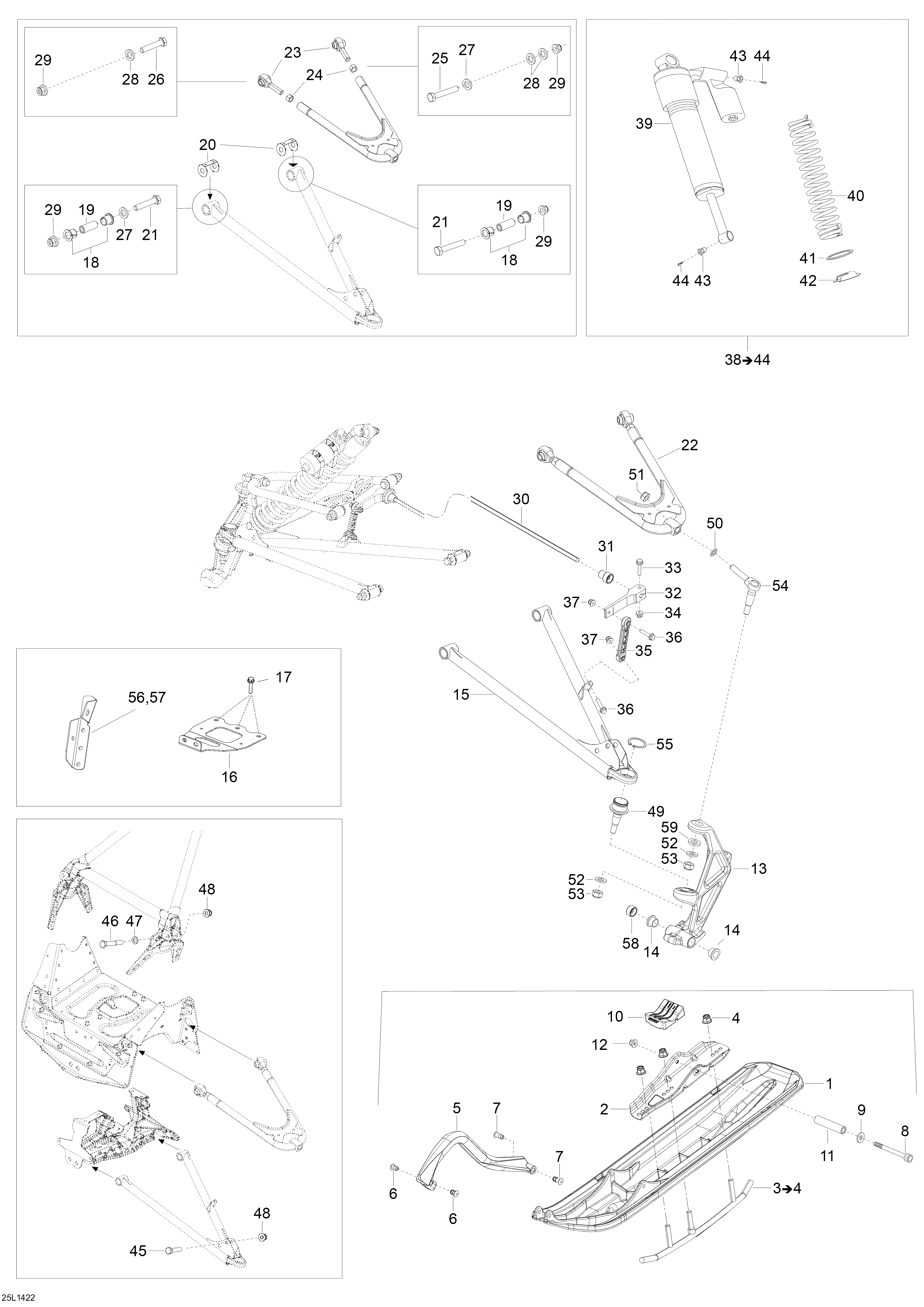

07- Front Suspension And Ski для BRP Lynx Rave RS 600 - 2014
-
№АртикулНазвание
-
1505073486 Blade Ski, redBlade Ski, red
-
2505073240 Ski BridgeSki Bridge
-
3605349378 Ski Runner Kit. Includes 3 To 4Ski Runner Kit. Includes 3 To 4
-
4233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
5505073108 Handle, whiteHandle, white
-
6505071812 RetainerRetainer
-
7505072133 RetainerRetainer
-
8231080044 Socket HD Screw M10 x 100Socket HD Screw M10 x 100
-
10505073411 Rubber DamperRubber Damper
-
11506133300 SpacerSpacer
-
12233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
13505073362 Ski Leg LHSki Leg LH
-
13505073363 Ski Leg RHSki Leg RH
-
14505072690 CushionCushion
-
15505072654 Lower Arm RHLower Arm RH
-
15505072655 Lower Arm LHLower Arm LH
-
16505072584 Lower Reinforcement PlateLower Reinforcement Plate
-
17207182044 Hex. Cap Screw M8 x 20Hex. Cap Screw M8 x 20
-
18503191766 CushionCushion
-
19505072401 Aluminum BushingAluminum Bushing
-
20505072634 Wear PlateWear Plate
-
21250000291 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
22505073527 Upper Arm LHUpper Arm LH
-
22505073528 Upper arm RHUpper arm RH
-
23505073532 Ball jointBall joint
-
24732610019 Nut RHNut RH
-
25250000387 Screw Hex. M10 x 65Screw Hex. M10 x 65
-
26250000387 Screw Hex. M10 x 65Screw Hex. M10 x 65
-
27503189564 WasherWasher
-
28234001410 WasherWasher
-
29250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
30505072602 StabilisatorStabilisator
-
31505072064 BushingBushing
-
32505072394 Stabilisator LeverStabilisator Lever
-
33207663046 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
34233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
35505072204 Double Ball Joint LinkDouble Ball Joint Link
-
36207663046 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
37233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
39505073270 Front Shock RHFront Shock RH
-
39505073271 Front Shock LHFront Shock LH
-
40505073537 Spring (32,4 Nm.)Spring (32,4 Nm.)
-
41706200793 CapCap
-
42505072635 Spring StopperSpring Stopper
-
43505072753 Knob AdjusterKnob Adjuster
-
44250000644 Socket Screw M3 x 10Socket Screw M3 x 10
-
45207005544 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
4640020 Hex. Cap Screw M10 x 65Hex. Cap Screw M10 x 65
-
47503189564 WasherWasher
-
48233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
49505072682 Lower Ball JointLower Ball Joint
-
50503189276 WasherWasher
-
51250100089 Nut M12Nut M12
-
52503192491 Flat WasherFlat Washer
-
53250100089 Nut M12Nut M12
-
54505073561 Upper Ball JointUpper Ball Joint
-
55293370035 CirclipCirclip
-
58505072807 SpacerSpacer
-
59505073506 SpacerSpacer
