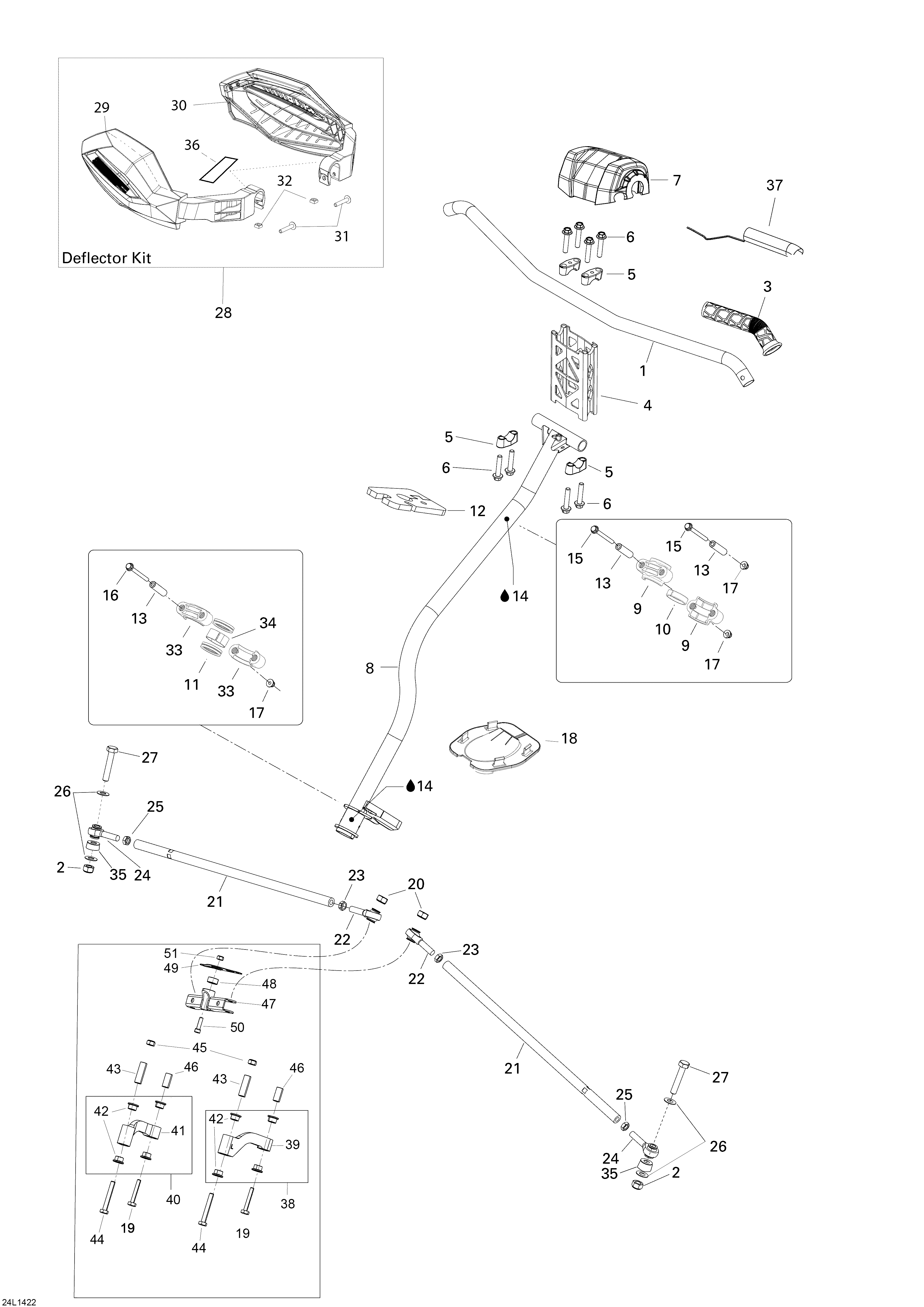

07- Steering System для BRP Lynx Rave RS 600 - 2014
-
№АртикулНазвание
-
1506152731 Handle BarHandle Bar
-
2233601466 Elastic Stop Nut M10Elastic Stop Nut M10
-
3506152483 GripGrip
-
4506151753 Extension 115 mm.Extension 115 mm.
-
4506152457 Extension 130 mm.Extension 130 mm.
-
5506152395 Steering SupportSteering Support
-
6250000352 Hex Flanged Screw M8 x 40Hex Flanged Screw M8 x 40
-
7506152553 Steering PadSteering Pad
-
8506152699 Main Tube PaintMain Tube Paint
-
9506152293 Half-Housing UpperHalf-Housing Upper
-
12506152476 CushionCushion
-
13506152297 Housing BushingHousing Bushing
-
14293550033 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
15207667086 Hex Flanged Screw M6 x 70Hex Flanged Screw M6 x 70
-
16207667086 Hex Flanged Screw M6 x 70Hex Flanged Screw M6 x 70
-
17233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
18506152163 PlatePlate
-
19207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
20232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
21506152715 Tie rod assyTie rod assy
-
22506152081 Ball JointBall Joint
-
23250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
24506152019 Ball JointBall Joint
-
25732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
26506152582 WasherWasher
-
27207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
28517305053 Deflector packDeflector pack
-
31250000501 Truss screw M6 x 35Truss screw M6 x 35
-
32250000498 Square nut M6Square nut M6
-
33506152549 Half housing lowerHalf housing lower
-
35506152713 Washer ringWasher ring
-
37506152428 Heated filmHeated film
-
38506152719 SWIVEL ARM assy LHSWIVEL ARM assy LH
-
40506152720 SWIVEL ARM assy RHSWIVEL ARM assy RH
-
42505072690 BushingBushing
-
43506152691 SWIVEL-PIVOTSWIVEL-PIVOT
-
44207007044 SCREW-HEX.CAP ISO.4014SCREW-HEX.CAP ISO.4014
-
45232500416 NUT-STOP ELASTIC THIN DIN.985NUT-STOP ELASTIC THIN DIN.985
-
46506152696 SWIVEL-PIVOTSWIVEL-PIVOT
-
47506152693 BAR-SWIVELBAR-SWIVEL
-
48506152714 BEARINGBEARING
-
49506152697 PLATEPLATE
-
50205003544 SCREW-SOCKET HD.DIN.912SCREW-SOCKET HD.DIN.912
-
51232500416 NUT-STOP ELASTIC THIN DIN.985NUT-STOP ELASTIC THIN DIN.985
