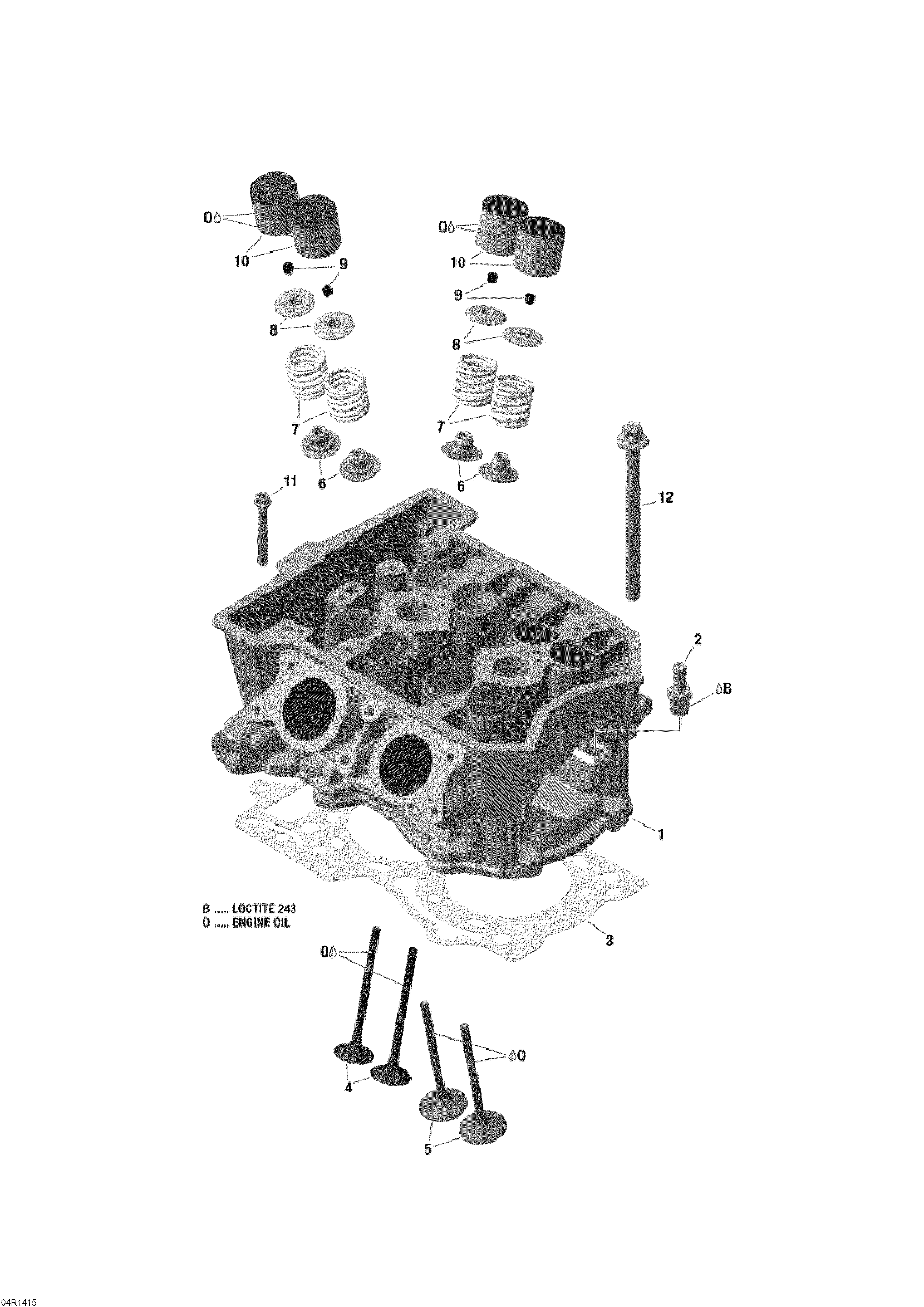

01- Cylinder Head для BRP Lynx Xtrim 600 ACE - 2014
-
№АртикулНазвание
-
1420623805 Cylinderhead Ass'yCylinderhead Ass'y
-
2420441420 Hose Nipple M12 x 1,5. Tightening Torque 15 Nm +/- 12%Hose Nipple M12 x 1,5. Tightening Torque 15 Nm +/- 12%
-
3420431611 Cylinder Head Gasket. Included In Gasket KitCylinder Head Gasket. Included In Gasket Kit
-
4420855140 Exhaust Valve 25 mmExhaust Valve 25 mm
-
5420855130 Intake Valve 29 mmIntake Valve 29 mm
-
6420431670 Valve Stem Seal. Included In Gasket KitValve Stem Seal. Included In Gasket Kit
-
7420939540 Valve SpringValve Spring
-
8420855150 Valve Spring RetainerValve Spring Retainer
-
9420254630 Valve CotterValve Cotter
-
10420855161 Valve Lifter BucketValve Lifter Bucket
-
11420440324 Hex./Torx Flange Screw M6 x 45. Tightening Torque 9 Nm +/- 12%Hex./Torx Flange Screw M6 x 45. Tightening Torque 9 Nm +/- 12%
-
12420940945 Torx Screw M9 x 113. Tightening Torque 20 Nm +/- 12%, +120? +/- 5?. +120°+/- 5° ROTATION ANGLETorx Screw M9 x 113. Tightening Torque 20 Nm +/- 12%, +120? +/- 5?. +120°+/- 5° ROTATION ANGLE
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
