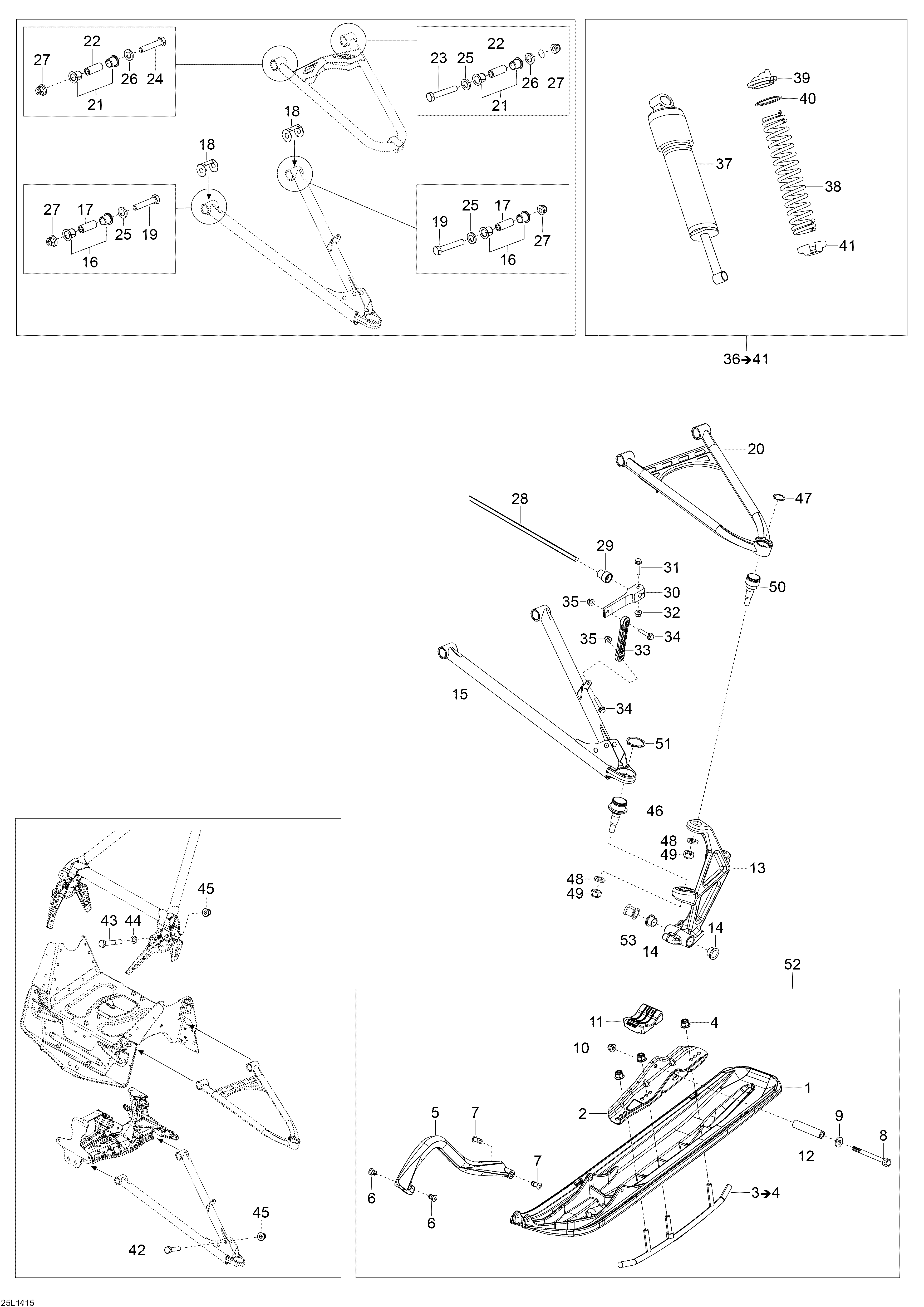

07- Front Suspension And Ski для BRP Lynx Xtrim 600 ACE - 2014
-
№АртикулНазвание
-
1505073154 Blade Ski (Black)Blade Ski (Black)
-
2505073240 Ski BridgeSki Bridge
-
3605349378 Ski Runner Kit (5 carb.). Includes 3 To 4Ski Runner Kit (5 carb.). Includes 3 To 4
-
4233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
5505073108 Handle (White)Handle (White)
-
6505071812 RetainerRetainer
-
7505072133 RetainerRetainer
-
8231080044 Hex. Cap Screw M10 x 100Hex. Cap Screw M10 x 100
-
9732900049 WasherWasher
-
10233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
11505073411 Rubber DamperRubber Damper
-
12506133300 Ski AxleSki Axle
-
13505073043 Ski Leg LHSki Leg LH
-
13505073012 Ski Leg RHSki Leg RH
-
14505072690 CushionCushion
-
15505072497 Lower Arm RHLower Arm RH
-
15505072498 Lower Arm LHLower Arm LH
-
16505073330 CushionCushion
-
17505072393 BushingBushing
-
18505072634 Wear PlateWear Plate
-
19250000291 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
20505073468 Upper Arm LHUpper Arm LH
-
20505073469 Upper Arm RHUpper Arm RH
-
21505073329 BushingBushing
-
22505072143 Aluminum BushingAluminum Bushing
-
23250000290 Screw Hex. M10 x 60Screw Hex. M10 x 60
-
24250000289 Screw Hex. M10 x 50Screw Hex. M10 x 50
-
25503189564 WasherWasher
-
26505072392 WasherWasher
-
27250100088 Hex. Elastic Nut M10Hex. Elastic Nut M10
-
28505072602 StabilisatorStabilisator
-
29505072064 BushingBushing
-
30505072394 Stabilisator LeverStabilisator Lever
-
31207663046 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
32233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
33505072204 Double Ball Joint LinkDouble Ball Joint Link
-
34207663046 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
35233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
37505073342 Front ShockFront Shock
-
38505072882 SpringSpring
-
39505070150 Adjuster CamAdjuster Cam
-
40503191872 Spring GuideSpring Guide
-
41706200881 Spring StopperSpring Stopper
-
42207005544 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
43207006544 Hex. Cap Screw M10 x 65Hex. Cap Screw M10 x 65
-
44503189564 WasherWasher
-
45233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
46505072682 Ball JointBall Joint
-
47293370070 CirclipCirclip
-
48234021410 Flat WasherFlat Washer
-
49250100089 Nut M12Nut M12
-
50505072913 Ball JointBall Joint
-
51293370035 CirclipCirclip
-
52860200884 Blade Ski Kit (Black). Includes 1 To 11Blade Ski Kit (Black). Includes 1 To 11
-
53505071999 SpacerSpacer
