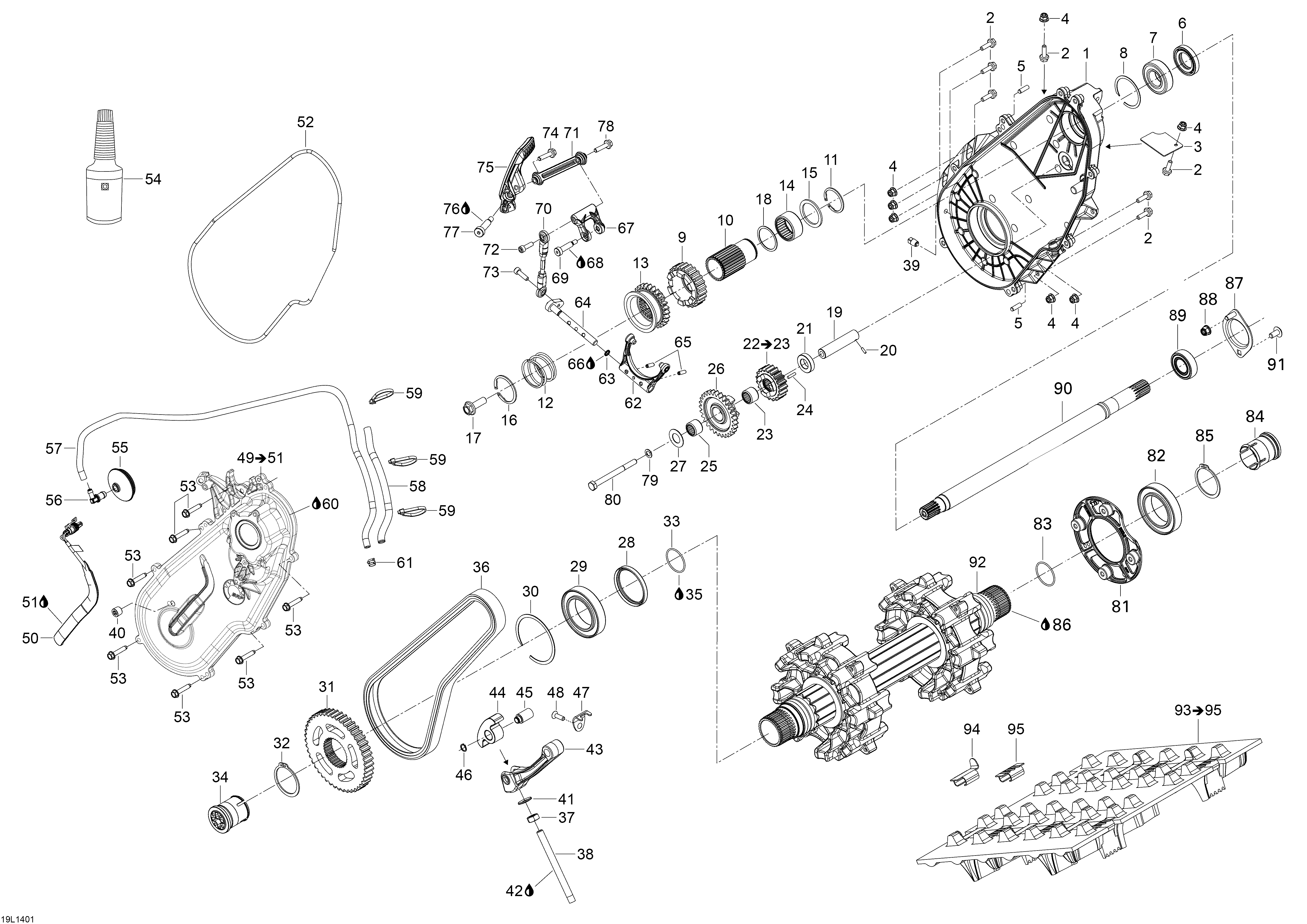

05- Drive System для BRP Lynx Xtrim 600 ACE - 2014
-
№АртикулНазвание
-
1504153184 ChaincaseChaincase
-
2207662034 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
3504152844 Middle PlateMiddle Plate
-
4233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
5250400048 Dowel PinDowel Pin
-
6293250175 Oil SealOil Seal
-
7293350055 Ball BearingBall Bearing
-
8504152576 CirclipCirclip
-
9504152927 Sprocket, 21 TeethSprocket, 21 Teeth
-
10504152979 CouplingCoupling
-
11293370054 CirclipCirclip
-
12504153179 Release SpringRelease Spring
-
13504152960 Sliding Gear, 27 TeethSliding Gear, 27 Teeth
-
14293350063 Needle BearingNeedle Bearing
-
15504152689 WasherWasher
-
16293370055 CirclipCirclip
-
17207503044 Hex. Screw M10 x 30Hex. Screw M10 x 30
-
18504152862 WasherWasher
-
19504083100 Reverse ShaftReverse Shaft
-
20250400010 Rolled Pin M3 x 10Rolled Pin M3 x 10
-
21504078700 RingRing
-
22581096900 Sprock Ass?y, 19 Teeth. Includes 22 To 23Sprock Ass?y, 19 Teeth. Includes 22 To 23
-
23293350064 Needle BearingNeedle Bearing
-
24570048600 Alignement RodAlignement Rod
-
25293350064 Needle BearingNeedle Bearing
-
26504152724 Sprocket, 29 TeethSprocket, 29 Teeth
-
27504077300 SpacerSpacer
-
28504152571 SealSeal
-
29293350059 Ball BearingBall Bearing
-
30504152582 CirclipCirclip
-
31504152971 Sprocket, 51 TeethSprocket, 51 Teeth
-
32504152572 CirclipCirclip
-
33293300122 O RingO Ring
-
34504152619 Magnetic CapMagnetic Cap
-
36504152630 Drive Chain, 106 LinksDrive Chain, 106 Links
-
37232006414 Hex. Nut M10Hex. Nut M10
-
38504152602 Adjustment ScrewAdjustment Screw
-
39504152636 Magnetic PlugMagnetic Plug
-
40250500012 Allen Drive PlugAllen Drive Plug
-
41293200128 Bonded WasherBonded Washer
-
42619590098 Chaincase OilChaincase Oil
-
43504152748 Chain TensionerChain Tensioner
-
44504152739 Slider ChainSlider Chain
-
45504152841 Tensioner AxleTensioner Axle
-
46504152282 CirclipCirclip
-
47504153122 Chain SliderChain Slider
-
48205862044 Socket Head Screw M6 x 20, Scotch GripSocket Head Screw M6 x 20, Scotch Grip
-
49504153144 Chaincase Cover Ass'y. Includes 49 To 51Chaincase Cover Ass'y. Includes 49 To 51
-
50504152896 SensorSensor
-
51293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
52293300130 O RingO Ring
-
53250000360 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
54619590098 Chaincase OilChaincase Oil
-
55504152930 CapCap
-
56293710035 Straight FittingStraight Fitting
-
57415080200 HoseHose
-
58504153074 Protector TubeProtector Tube
-
59293750002 Tie Rap 180mmTie Rap 180mm
-
60619590098 Chaincase OilChaincase Oil
-
61414554800 Spring ClampSpring Clamp
-
62504152954 Fork Ass'yFork Ass'y
-
63414484400 O RingO Ring
-
64504152956 Welded Axel ForkWelded Axel Fork
-
65250400045 Spring Pin M5 x 16Spring Pin M5 x 16
-
67504152788 LeverLever
-
69250000340 Socket Head Screw M8 x 25, Scotch GripSocket Head Screw M8 x 25, Scotch Grip
-
70504152951 Ball JointBall Joint
-
71504152710 Double Ball JointDouble Ball Joint
-
72205562044 Socket Head Screw M6 x 20, Scotch GripSocket Head Screw M6 x 20, Scotch Grip
-
73205562044 Socket Head Screw M6 x 20, Scotch GripSocket Head Screw M6 x 20, Scotch Grip
-
74207562544 Hex. Flanged Screw M6 x 25, Scotch GripHex. Flanged Screw M6 x 25, Scotch Grip
-
75504153082 GripGrip
-
77250000340 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
78207562544 Hex. Flanged Screw M6 x 25, Scotch GripHex. Flanged Screw M6 x 25, Scotch Grip
-
79504082900 WasherWasher
-
80207089044 Hex. Screw M8 x 90Hex. Screw M8 x 90
-
81504152949 Housing BearingHousing Bearing
-
82293350059 Ball BearingBall Bearing
-
83293300122 O RingO Ring
-
84504152619 Magnetic CapMagnetic Cap
-
85504152572 CirclipCirclip
-
87504153187 Bearing HousingBearing Housing
-
88233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
89293350074 Ball BearingBall Bearing
-
90504153000 CountershaftCountershaft
-
91235381646 Torx Truss Screw M8 x 16Torx Truss Screw M8 x 16
-
92504153255 Drive Axle Ass'y (8T.)Drive Axle Ass'y (8T.)
-
93504152987 Track Ass'y (406 x 3705 x 39). Includes 93 To 95Track Ass'y (406 x 3705 x 39). Includes 93 To 95
-
94415129528 Track GuideTrack Guide
-
95504152651 CleatCleat
