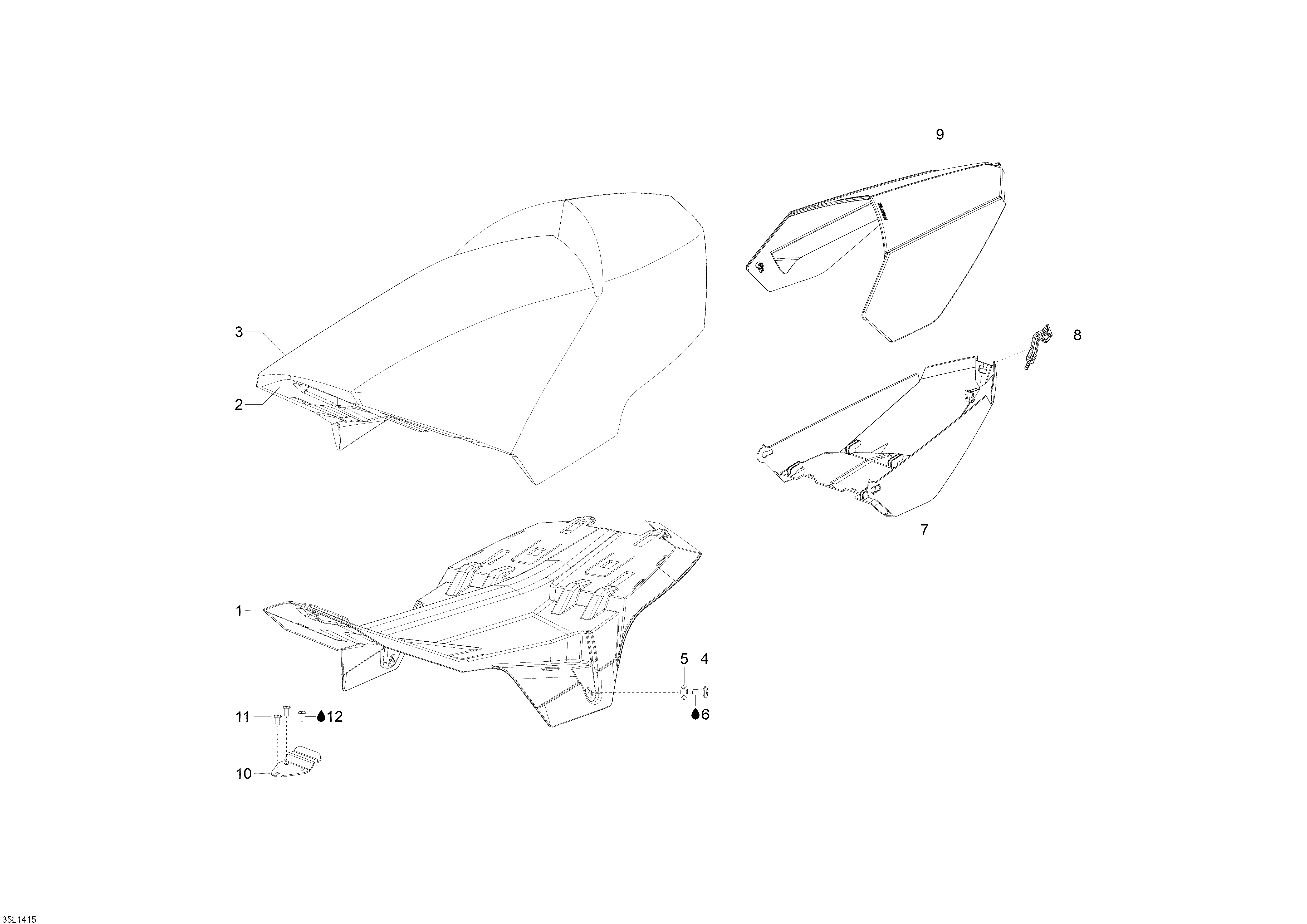

09- Seat для BRP Lynx Xtrim 600 ACE - 2014
-
№АртикулНазвание
-
1510004899 Seat BaseSeat Base
-
2510004932 Seat FoamSeat Foam
-
3510005533 Seat CoverSeat Cover
-
4250000128 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
5510005346 WasherWasher
-
6293800060 Loctite 243, 10mlLoctite 243, 10ml
-
7511000757 TrunkTrunk
-
8511000528 BracketBracket
-
9511000568 Trunk CoverTrunk Cover
-
10510005129 Seat Front Fastening PlateSeat Front Fastening Plate
-
11205461046 Socket Screw M6 x 10Socket Screw M6 x 10
-
12293800060 Loctite 243, 10mlLoctite 243, 10ml
