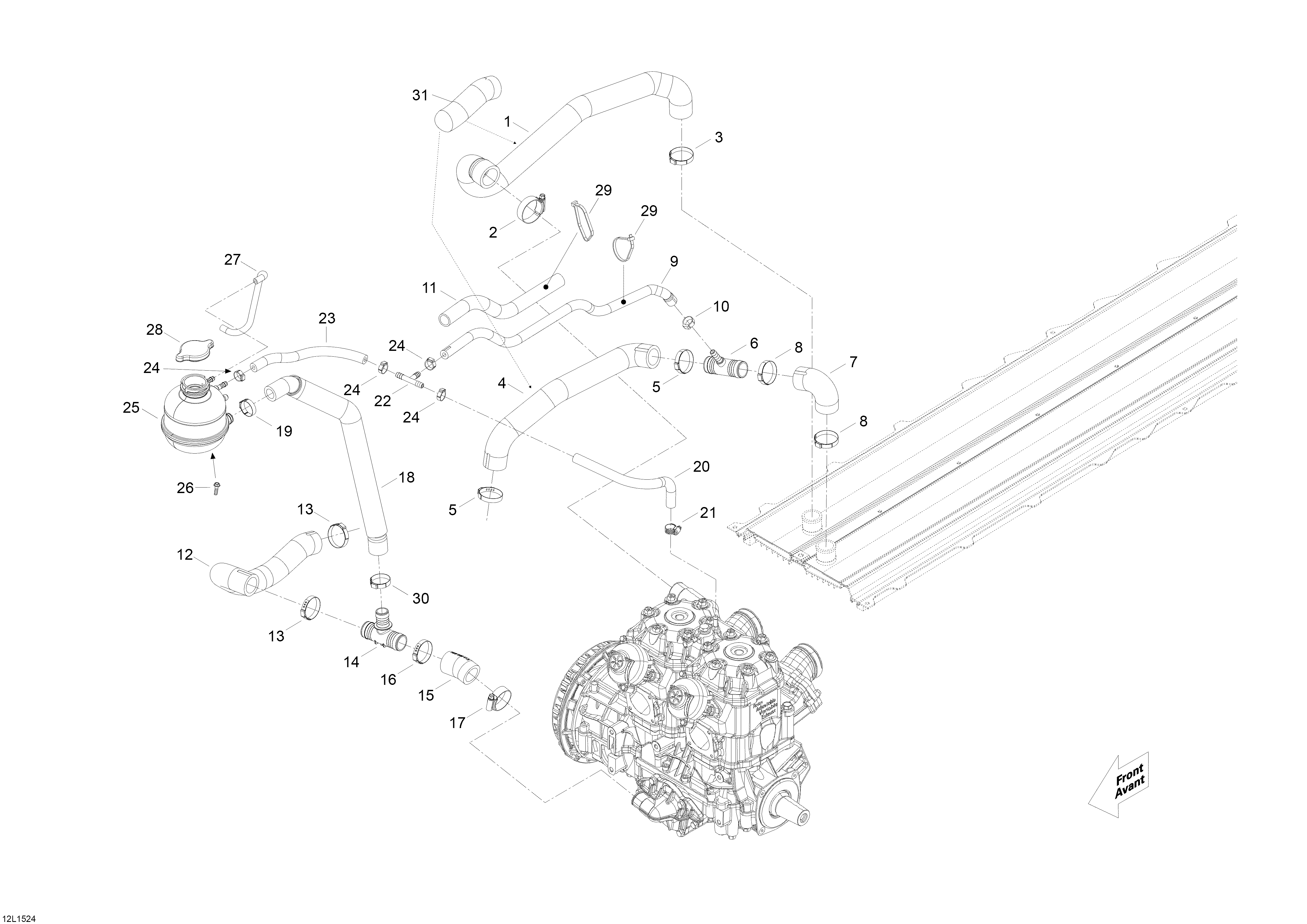

01- Cooling System для BRP Lynx Rave RS 600 - 2015
-
№АртикулНазвание
-
1509000431 Engine Outlet HoseEngine Outlet Hose
-
2509000443 Aba Gear ClampAba Gear Clamp
-
3509000443 Gear ClampGear Clamp
-
4509000670 Radiator HoseRadiator Hose
-
5509000529 Gear ClampGear Clamp
-
6509000510 T-FittingT-Fitting
-
7509000671 Radiator HoseRadiator Hose
-
8509000443 Gear ClampGear Clamp
-
9509000905 Breather HoseBreather Hose
-
10293650047 Oetiker ClampOetiker Clamp
-
11415080000 Tubing 16 mmTubing 16 mm
-
12509000673 Radiator HoseRadiator Hose
-
13509000443 Gear ClampGear Clamp
-
14509000372 T-FittingT-Fitting
-
15509000675 Radiator HoseRadiator Hose
-
16509000443 Gear ClampGear Clamp
-
17509000443 Aba Gear ClampAba Gear Clamp
-
18509000901 Filling HoseFilling Hose
-
19293650124 Gear ClampGear Clamp
-
20509000904 Breather HoseBreather Hose
-
21293650170 Hose ClampHose Clamp
-
22293710024 T-FittingT-Fitting
-
23509000902 Breather HoseBreather Hose
-
24293650046 Oetiker ClampOetiker Clamp
-
25509000802 Coolant TankCoolant Tank
-
26241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
27276000048 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
28509000180 Pressure CapPressure Cap
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
30293650099 Oetiker Gear ClampOetiker Gear Clamp
-
31605356086 Tubing 29 mmTubing 29 mm
