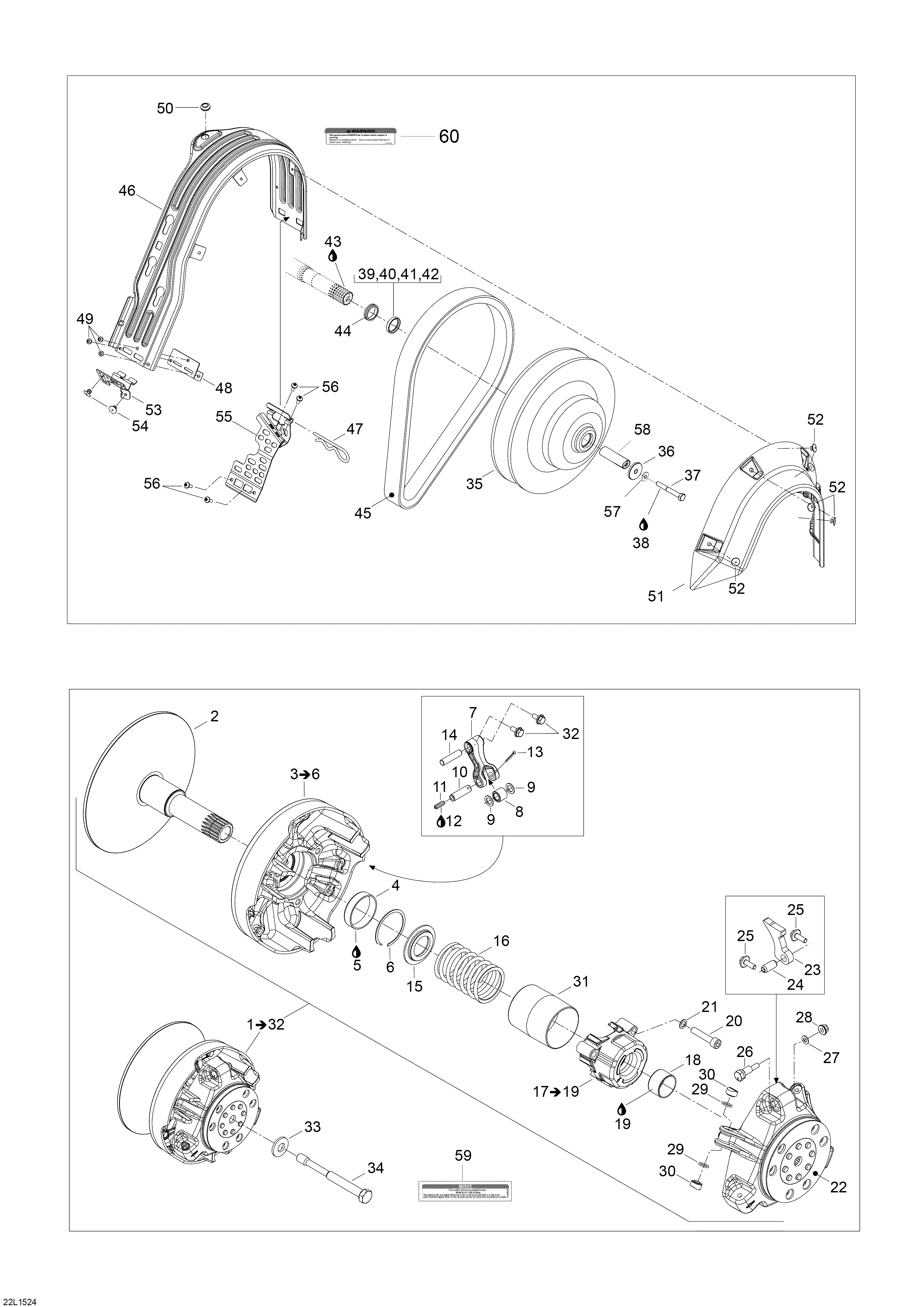

05- Pulley System для BRP Lynx Rave RS 600 - 2015
-
№АртикулНазвание
-
2417223012 Fixed Flange Ass'yFixed Flange Ass'y
-
3417222971 Sliding Flange Ass'y. Includes 3 to 6Sliding Flange Ass'y. Includes 3 to 6
-
4417222758 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'yLever Ass'y
-
8417222947 RollerRoller
-
9417004302 Stopper WasherStopper Washer
-
10417222595 Threaded PinThreaded Pin
-
11206260699 Socket Set Screw, M6x6 mm.Socket Set Screw, M6x6 mm.
-
11250000408 Socket Set Screw, M6x25 mm.Socket Set Screw, M6x25 mm.
-
12293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
13250400060 Cotter PinCotter Pin
-
14417223164 Lever AxleLever Axle
-
15417222312 Spring SeatSpring Seat
-
16414689800 Spring (Red / Red, 311-756N)Spring (Red / Red, 311-756N)
-
16417223610 Spring, Wh/GR/GR 265/405Spring, Wh/GR/GR 265/405
-
17417007500 Spring Cover Ass'y. Includes 17 to 19Spring Cover Ass'y. Includes 17 to 19
-
18417009204 BushingBushing
-
19413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
20205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
21250200009 Lock Washer 8 mmLock Washer 8 mm
-
22417223366 Governor CupGovernor Cup
-
23417223281 Ramp 443Ramp 443
-
24250400050 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
25250000418 Hex. Flanged Scew M6 X 18Hex. Flanged Scew M6 X 18
-
26417223501 Calibration ScrewCalibration Screw
-
27417005600 WasherWasher
-
28233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
29732401030 O-RingO-Ring
-
30417223021 Slider ShoeSlider Shoe
-
31417009205 GuardGuard
-
32250000416 Serrated Hex. Flanged Screw M6 X 16Serrated Hex. Flanged Screw M6 X 16
-
33250200144 Spring Washer 14 mmSpring Washer 14 mm
-
34417120000 Drive Pulley BoltDrive Pulley Bolt
-
35417127483 Driven Pulley Ass'yDriven Pulley Ass'y
-
36503183100 Strength WasherStrength Washer
-
37207584544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
38293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
39504149100 Spacer, 5,25 mm.Spacer, 5,25 mm.
-
40417300252 Spacer, 2,0 mm.Spacer, 2,0 mm.
-
41417300265 Spacer, 1,0 mm.Spacer, 1,0 mm.
-
42504112000 Shim, 0,5 mm.Shim, 0,5 mm.
-
43619600013 Loctite 8151, Antiseize LubricantLoctite 8151, Antiseize Lubricant
-
44417300399 Spacer, 11,7 mm.Spacer, 11,7 mm.
-
45417300425 Drive BeltDrive Belt
-
46860200362 Belt GuardBelt Guard
-
47114045200 Hair PinHair Pin
-
48417300380 ReinforcementReinforcement
-
49390909200 Avex RivetAvex Rivet
-
50417300381 GrommetGrommet
-
51417300431 Side ProtectorSide Protector
-
52293150103 Pop RivetPop Rivet
-
53417300360 Belt Guard BracketBelt Guard Bracket
-
54293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
55417300448 Belt Guard BracketBelt Guard Bracket
-
56250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
5720072 Washer M8 nord lockWasher M8 nord lock
-
58417127300 BushingBushing
-
59516005503 Decal bolt torqueDecal bolt torque
-
60516006900 Security labelSecurity label
