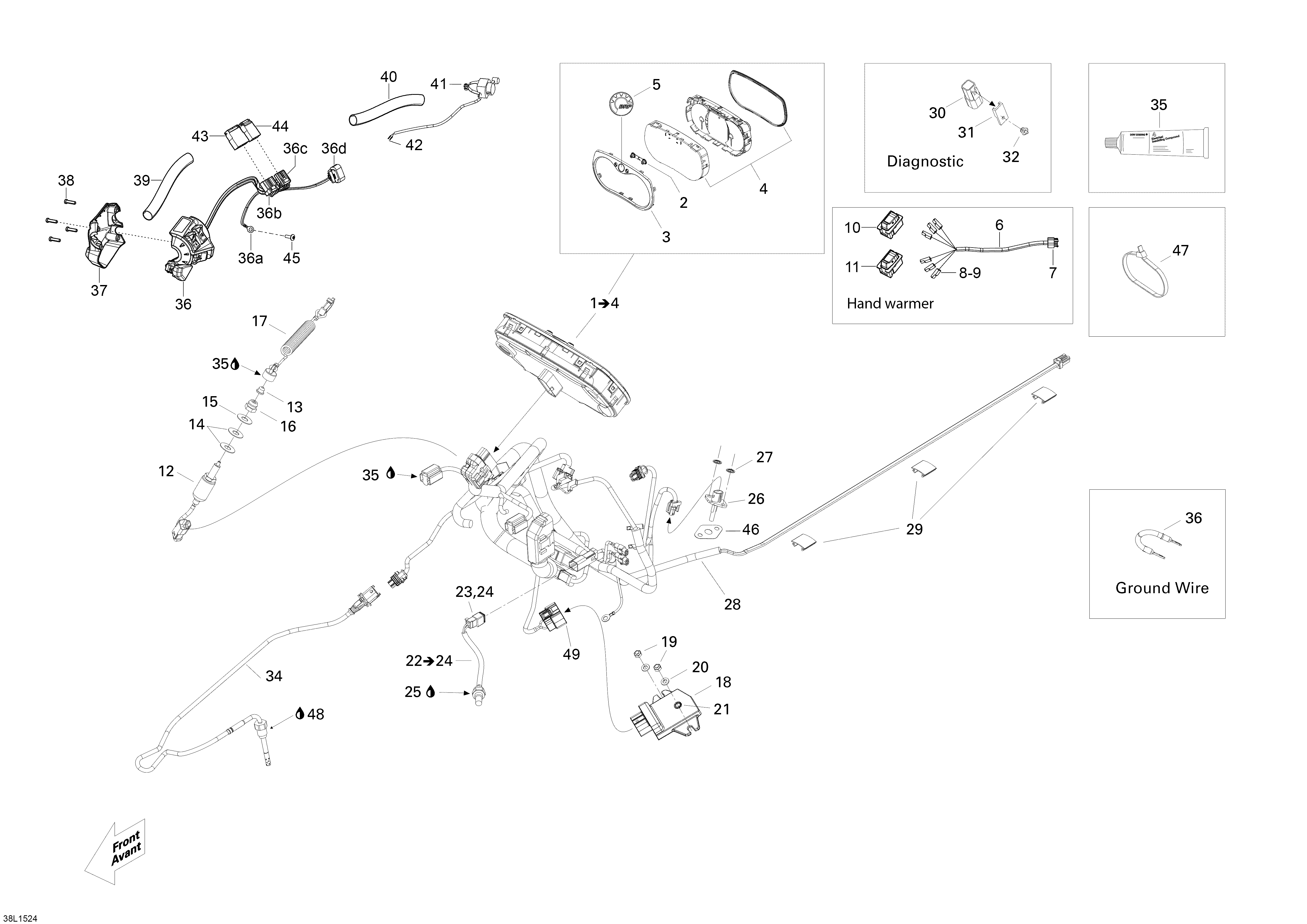

10- Electrical System для BRP Lynx Rave RS 600 - 2015
-
№АртикулНазвание
-
1515177839 Speedometer. Includes 1 to 4Speedometer. Includes 1 to 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Ring GaugeRing Gauge
-
4415129349 Lens And SealLens And Seal
-
5219902677 Logo, BRP 20 mmLogo, BRP 20 mm
-
6515177495 Warmer HarnessWarmer Harness
-
7710001928 Female Housing, 8 CircuitsFemale Housing, 8 Circuits
-
8710002398 Female Housing, 1 CircuitFemale Housing, 1 Circuit
-
9710002399 Female TerminalFemale Terminal
-
10515177497 Hand Warmer Rocker SwitchHand Warmer Rocker Switch
-
11515177498 Thumb Warmer Rocker SwitchThumb Warmer Rocker Switch
-
12515175653 Emergency switchEmergency switch
-
13570151100 Plunger CapPlunger Cap
-
14250200032 WasherWasher
-
15510004418 WasherWasher
-
16515145900 Switch NutSwitch Nut
-
17515176462 Cap Ass'yCap Ass'y
-
18515176364 Voltage RegulatorVoltage Regulator
-
19233261414 Elastic Stop Nut M6Elastic Stop Nut M6
-
20234061410 Flat Washer 6 mmFlat Washer 6 mm
-
21234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
22515177813 Temperature Sensor. Includes 22 to 24Temperature Sensor. Includes 22 to 24
-
23515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
24278000632 Female TerminalFemale Terminal
-
25293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
26515176366 Temperature Air SensorTemperature Air Sensor
-
27389804300 Push NutPush Nut
-
28515177567 Wiring HarnessWiring Harness
-
30710003006 HousingHousing
-
31270000141 ClipClip
-
32293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
33515177289 Ground WireGround Wire
-
34514054856 Temperature Sensor EGTTemperature Sensor EGT
-
35293550004 Dielectric Grease, 150 GDielectric Grease, 150 G
-
36515177678 Housing assyHousing assy
-
36b515175543 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
36b515175231 Female TerminalFemale Terminal
-
36c515175845 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
36c515175231 Female TerminalFemale Terminal
-
36d710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
37515177149 Housing PlateHousing Plate
-
38250000671 Torx ScrewTorx Screw
-
39415129879 Protector TubeProtector Tube
-
40415129879 Protector TubeProtector Tube
-
41515177454 Kill SwitchKill Switch
-
42515175232 Male TerminalMale Terminal
-
43515175662 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
43515175232 Male TerminalMale Terminal
-
44515175846 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
44515175232 Male TerminalMale Terminal
-
45250000690 Forming Screw M5 x 10Forming Screw M5 x 10
-
46508000769 RingRing
-
47414115200 Tie Rap 180mmTie Rap 180mm
-
47293750008 Tie Rap 350mmTie Rap 350mm
-
47293750001 Tie Rap 94mmTie Rap 94mm
-
47605627000 Tie RapTie Rap
-
48619600013 Loctite 8151 (Antiseize), 400ml SprayLoctite 8151 (Antiseize), 400ml Spray
-
49515176681 Lock femaleLock female
