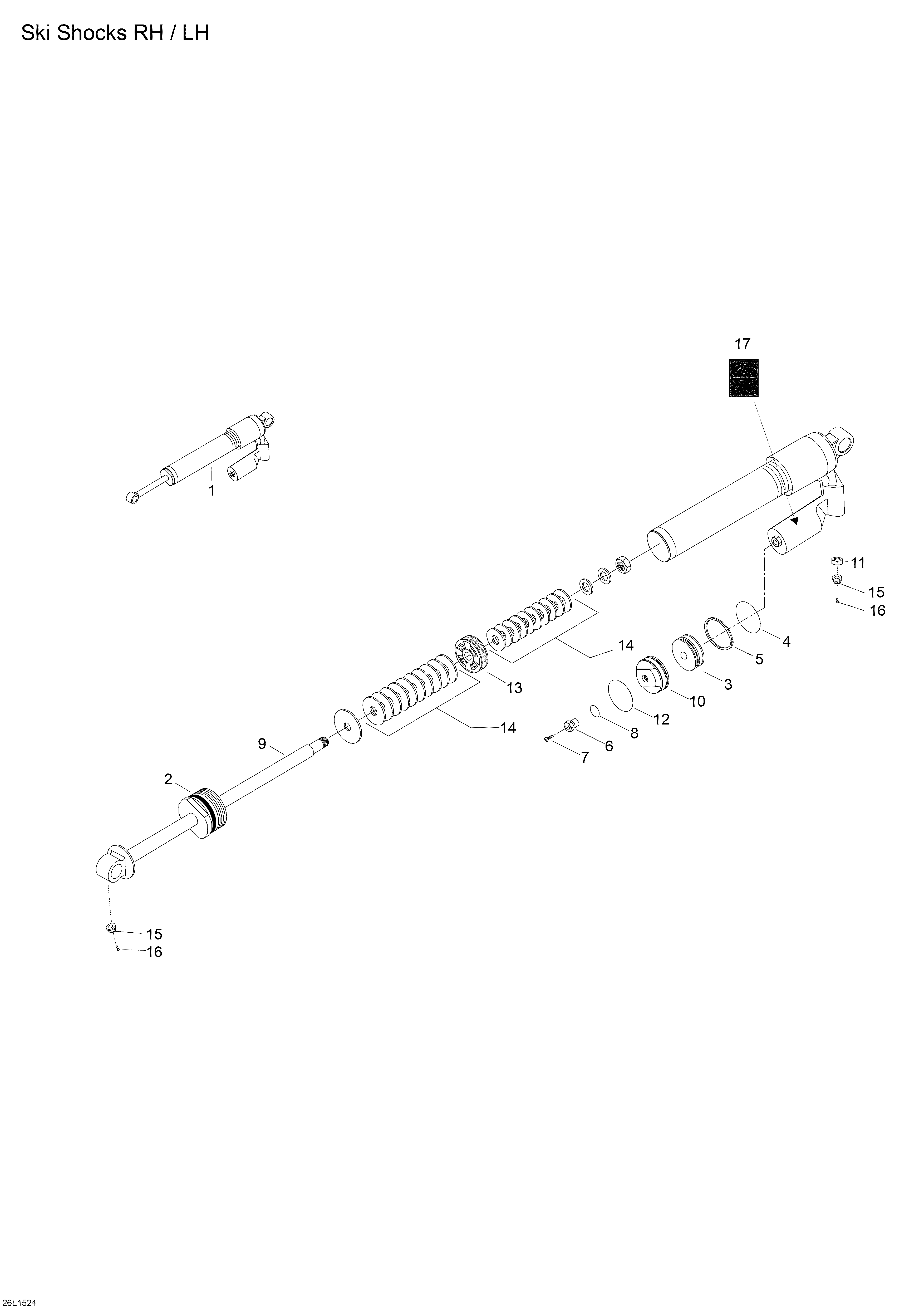

07- Ski Shocks для BRP Lynx Rave RS 600 - 2015
-
№АртикулНазвание
-
1505073695 RH Front ShockRH Front Shock
-
1505073694 LH Front ShockLH Front Shock
-
4415093807 O-ringO-ring
-
5503189006 Piston ringPiston ring
-
6505070398 Air valve ass'yAir valve ass'y
-
7505070399 ScrewScrew
-
8505070400 O-ringO-ring
-
10619300009 Seal carrier assySeal carrier assy
-
11619300015 Valve ass'yValve ass'y
-
12415093804 O-ringO-ring
-
14619300060 Shim 40/46 mm. 17 X 0,114Shim 40/46 mm. 17 X 0,114
-
14619300069 Shim 40/46 mm. 17 X 0,203Shim 40/46 mm. 17 X 0,203
-
14619300068 Shim 40/46 mm. 18 X 0,114Shim 40/46 mm. 18 X 0,114
-
14619300067 Shim 40/46 mm. 18 X 0,152Shim 40/46 mm. 18 X 0,152
-
14230029 Shim 40/46 mm. 20 X 0,114Shim 40/46 mm. 20 X 0,114
-
14230030 Shim 40/46 mm. 20 X 0,152Shim 40/46 mm. 20 X 0,152
-
14230031 Shim 40/46 mm. 20 X 0,203Shim 40/46 mm. 20 X 0,203
-
14230032 Shim 40/46 mm. 20 X 0,254Shim 40/46 mm. 20 X 0,254
-
14619300097 Shim 40/46 mm. 20 X 0,305Shim 40/46 mm. 20 X 0,305
-
14619300133 Shim 40/46 mm. 22 X 0,114Shim 40/46 mm. 22 X 0,114
-
14619300140 Shim 40/46 mm. 22 X 0,152Shim 40/46 mm. 22 X 0,152
-
14619300098 Shim 40/46 mm. 22 X 0,203Shim 40/46 mm. 22 X 0,203
-
14619300134 Shim 40/46 mm. 22 X 0,254Shim 40/46 mm. 22 X 0,254
-
14619300144 Shim 40/46 mm. 22 X 0,305Shim 40/46 mm. 22 X 0,305
-
14619300145 Shim 40/46 mm. 24 X 0,114Shim 40/46 mm. 24 X 0,114
-
14619300146 Shim 40/46 mm. 24 X 0,152Shim 40/46 mm. 24 X 0,152
-
14619300147 Shim 40/46 mm. 24 X 0,203Shim 40/46 mm. 24 X 0,203
-
14619300095 Shim 40/46 mm. 24 X 0,254Shim 40/46 mm. 24 X 0,254
-
14619300148 Shim 40/46 mm. 24 X 0,305Shim 40/46 mm. 24 X 0,305
-
14619300149 Shim 40/46 mm. 26 X 0,114Shim 40/46 mm. 26 X 0,114
-
14619300141 Shim 40/46 mm. 26 X 0,152Shim 40/46 mm. 26 X 0,152
-
14619300150 Shim 40/46 mm. 26 X 0,203Shim 40/46 mm. 26 X 0,203
-
14619300099 Shim 40/46 mm. 26 X 0,254Shim 40/46 mm. 26 X 0,254
-
14619300100 Shim 40/46 mm. 26 X 0,305Shim 40/46 mm. 26 X 0,305
-
14619300101 Shim 40/46 mm. 28 X 0,114Shim 40/46 mm. 28 X 0,114
-
14619300151 Shim 40/46 mm. 28 X 0,152Shim 40/46 mm. 28 X 0,152
-
14619300102 Shim 40/46 mm. 28 X 0,203Shim 40/46 mm. 28 X 0,203
-
14619300103 Shim 40/46 mm. 28 X 0,254Shim 40/46 mm. 28 X 0,254
-
14619300152 Shim 40/46 mm. 28 X 0,305Shim 40/46 mm. 28 X 0,305
-
14619300135 Shim 40/46 mm. 30 X 0,114Shim 40/46 mm. 30 X 0,114
-
14619300104 Shim 40/46 mm. 30 X 0,152Shim 40/46 mm. 30 X 0,152
-
14619300154 Shim 40/46 mm. 30 X 0,203Shim 40/46 mm. 30 X 0,203
-
14619300113 Shim 40/46 mm. 30 X 0,254Shim 40/46 mm. 30 X 0,254
-
14619300056 Shim 40/46 mm. 30 X 0,305Shim 40/46 mm. 30 X 0,305
-
14230082 Shim 40/46 mm. 32 X 0,114Shim 40/46 mm. 32 X 0,114
-
14619300137 Shim 40/46 mm. 32 X 0,152Shim 40/46 mm. 32 X 0,152
-
14619300138 Shim 40/46 mm. 32 X 0,203Shim 40/46 mm. 32 X 0,203
-
14619300059 Shim 40/46 mm. 32 X 0,254Shim 40/46 mm. 32 X 0,254
-
14619300022 Shim 40/46 mm. 32 X 0,305Shim 40/46 mm. 32 X 0,305
-
14230033 Shim 40/46 mm. 34 X 0,114Shim 40/46 mm. 34 X 0,114
-
14230034 Shim 40/46 mm. 34 X 0,152Shim 40/46 mm. 34 X 0,152
-
14230035 Shim 40/46 mm. 34 X 0,203Shim 40/46 mm. 34 X 0,203
-
14230036 Shim 40/46 mm. 34 X 0,254Shim 40/46 mm. 34 X 0,254
-
14619300070 Shim 40/46 mm. 34 X 0,305Shim 40/46 mm. 34 X 0,305
-
14230037 Shim 40/46 mm. 36 X 0,114Shim 40/46 mm. 36 X 0,114
-
14619300155 Shim 40/46 mm. 36 X 0,152Shim 40/46 mm. 36 X 0,152
-
14619300142 Shim 40/46 mm. 36 X 0,203Shim 40/46 mm. 36 X 0,203
-
14503189038 Shim 40/46 mm. 36 X 0,254Shim 40/46 mm. 36 X 0,254
-
14619300105 Shim 40/46 mm. 36 X 0,305Shim 40/46 mm. 36 X 0,305
-
14230040 Shim 40/46 mm. 38 X 0,152Shim 40/46 mm. 38 X 0,152
-
14230041 Shim 40/46 mm. 38 X 0,203Shim 40/46 mm. 38 X 0,203
-
14230042 Shim 40/46 mm. 38 X 0,254Shim 40/46 mm. 38 X 0,254
-
14619300106 Shim 40/46 mm. 38 X 0,305Shim 40/46 mm. 38 X 0,305
-
14619300157 Shim 40/46 mm. 40 X 0,152Shim 40/46 mm. 40 X 0,152
-
14619300112 Shim 40/46 mm. 40 X 0,203Shim 40/46 mm. 40 X 0,203
-
14619300136 Shim 40/46 mm. 40 X 0,254Shim 40/46 mm. 40 X 0,254
-
14619300107 Shim 40/46 mm. 40 X 0,305Shim 40/46 mm. 40 X 0,305
-
15505072753 Adjuster knobAdjuster knob
-
16205031060 Screw socket M3 x 10Screw socket M3 x 10
-
17516005534 Decal KYBDecal KYB
