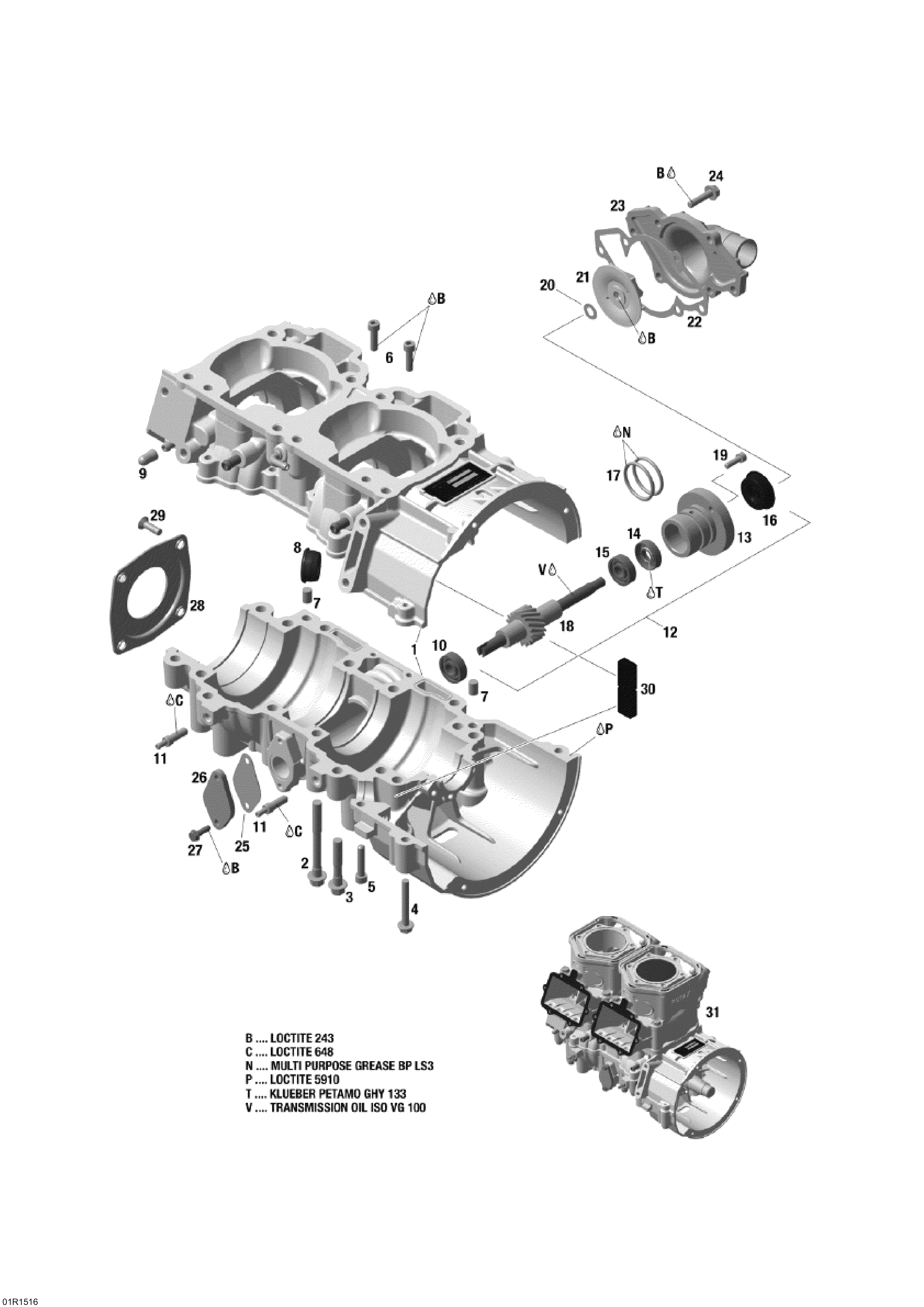

01- Crankcase And Water Pump для BRP Lynx Xtrim Commander 600 E-TEC - 2015

№

Артикул

Название
1

420890222 Crankcase Ass'y. Includes 1 To 10

Crankcase Ass'y. Includes 1 To 10

90 970 ₽
1

420890222 Crankcase Ass'y. Includes 1 To 10

Crankcase Ass'y. Includes 1 To 10

90 970 ₽
2

420640836 Hex. Collar Screw M8 x 75. Tightening Torque 28-30 Nm

Hex. Collar Screw M8 x 75. Tightening Torque 28-30 Nm

990 ₽
2

420640836 Hex. Collar Screw M8 x 75. Tightening Torque 28-30 Nm

Hex. Collar Screw M8 x 75. Tightening Torque 28-30 Nm

990 ₽
3

420640431 Hex. Collar Screw M8 x 45. Tightening Torque 28-30 Nm

Hex. Collar Screw M8 x 45. Tightening Torque 28-30 Nm

0 ₽
3

420640431 Hex. Collar Screw M8 x 45. Tightening Torque 28-30 Nm

Hex. Collar Screw M8 x 45. Tightening Torque 28-30 Nm

0 ₽
4

420640311 Hex. Collar Screw M6 x 45. Tightening Torque 8-10 Nm

Hex. Collar Screw M6 x 45. Tightening Torque 8-10 Nm

370 ₽
4

420640311 Hex. Collar Screw M6 x 45. Tightening Torque 8-10 Nm

Hex. Collar Screw M6 x 45. Tightening Torque 8-10 Nm

370 ₽
5

205063044 Socket Head Screw M6 x 30. Tightening Torque 8-10 Nm

Socket Head Screw M6 x 30. Tightening Torque 8-10 Nm

550 ₽
5

205063044 Socket Head Screw M6 x 30. Tightening Torque 8-10 Nm

Socket Head Screw M6 x 30. Tightening Torque 8-10 Nm

550 ₽
6

420840401 Socket Head Screw M6 x 22. Tightening Torque 8-10 Nm

Socket Head Screw M6 x 22. Tightening Torque 8-10 Nm

140 ₽
6

420840401 Socket Head Screw M6 x 22. Tightening Torque 8-10 Nm

Socket Head Screw M6 x 22. Tightening Torque 8-10 Nm

140 ₽
7

420632010 Pin 8 x 12

Pin 8 x 12

1 450 ₽
7

420632010 Pin 8 x 12

Pin 8 x 12

1 450 ₽
8

420660890 Cable Grommet

Cable Grommet

1 070 ₽
8

420660890 Cable Grommet

Cable Grommet

1 070 ₽
9

420960770 Cap

Cap

380 ₽
9

420960770 Cap

Cap

380 ₽
10

420232100 Ball Bearing

Ball Bearing

10 030 ₽
10

420232100 Ball Bearing

Ball Bearing

10 030 ₽
11

420956070 Check Valve

Check Valve

7 740 ₽
11

420956070 Check Valve

Check Valve

7 740 ₽
12

420837421 Water Pump/Oil Pump Ass'y. Includes 12 To 18

Water Pump/Oil Pump Ass'y. Includes 12 To 18

112 000 ₽
12

420837421 Water Pump/Oil Pump Ass'y. Includes 12 To 18

Water Pump/Oil Pump Ass'y. Includes 12 To 18

112 000 ₽
14

420230195 Oil Seal. Included In Gasket Kit

Oil Seal. Included In Gasket Kit

5 600 ₽
14

420230195 Oil Seal. Included In Gasket Kit

Oil Seal. Included In Gasket Kit

5 600 ₽
15

420232100 Ball Bearing

Ball Bearing

10 030 ₽
15

420232100 Ball Bearing

Ball Bearing

10 030 ₽
16

420650370 Oil Seal. Included In Gasket Kit

Oil Seal. Included In Gasket Kit

25 480 ₽
16

420650370 Oil Seal. Included In Gasket Kit

Oil Seal. Included In Gasket Kit

25 480 ₽
17

420950890 O-Ring. Included In Gasket Kit

O-Ring. Included In Gasket Kit

1 540 ₽
17

420950890 O-Ring. Included In Gasket Kit

O-Ring. Included In Gasket Kit

1 540 ₽
19

420840511 Allen Screw M5 x 16. Tightening Torque 5-6 Nm

Allen Screw M5 x 16. Tightening Torque 5-6 Nm

670 ₽
19

420840511 Allen Screw M5 x 16. Tightening Torque 5-6 Nm

Allen Screw M5 x 16. Tightening Torque 5-6 Nm

670 ₽
20

420227945 Washer

Washer

1 450 ₽
20

420227945 Washer

Washer

1 450 ₽
21

420222505 Water Impeller. Tightening Torque 4-5 Nm

Water Impeller. Tightening Torque 4-5 Nm

6 480 ₽
21

420222505 Water Impeller. Tightening Torque 4-5 Nm

Water Impeller. Tightening Torque 4-5 Nm

6 480 ₽
22

420931810 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

4 520 ₽
22

420931810 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

4 520 ₽
23

420922630 Water Pump Housing

Water Pump Housing

5 020 ₽
23

420922630 Water Pump Housing

Water Pump Housing

5 020 ₽
24

420240034 Hex. Screw M6 x 25. Tightening Torque 12-14 Nm

Hex. Screw M6 x 25. Tightening Torque 12-14 Nm

180 ₽
24

420240034 Hex. Screw M6 x 25. Tightening Torque 12-14 Nm

Hex. Screw M6 x 25. Tightening Torque 12-14 Nm

180 ₽
25

420931566 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

3 090 ₽
25

420931566 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

3 090 ₽
26

420810825 Cover Plate

Cover Plate

0 ₽
26

420810825 Cover Plate

Cover Plate

0 ₽
27

420941925 Tapping Screw M5 x 16. Tightening Torque 5-6 Nm

Tapping Screw M5 x 16. Tightening Torque 5-6 Nm

180 ₽
27

420941925 Tapping Screw M5 x 16. Tightening Torque 5-6 Nm

Tapping Screw M5 x 16. Tightening Torque 5-6 Nm

180 ₽
28

420812420 Oil Seal Cover

Oil Seal Cover

590 ₽
28

420812420 Oil Seal Cover

Oil Seal Cover

590 ₽
29

420941436 Socket Head Screw M6 x 20. Tightening Torque 10-12 Nm

Socket Head Screw M6 x 20. Tightening Torque 10-12 Nm

1 120 ₽
29

420941436 Socket Head Screw M6 x 20. Tightening Torque 10-12 Nm

Socket Head Screw M6 x 20. Tightening Torque 10-12 Nm

1 120 ₽
30

420960925 Rubber Stopper

Rubber Stopper

450 ₽
30

420960925 Rubber Stopper

Rubber Stopper

450 ₽
31

300059353 Short Block 593 HO E-TEC

Short Block 593 HO E-TEC

400 890 ₽
31

300059353 Short Block 593 HO E-TEC

Short Block 593 HO E-TEC

400 890 ₽
B

293800060 Loctite 243, 10ml

Loctite 243, 10ml

2 760 ₽
B

293800060 Loctite 243, 10ml

Loctite 243, 10ml

2 760 ₽
C

619600012 Loctite 609, 10ml

Loctite 609, 10ml

8 390 ₽
C

619600012 Loctite 609, 10ml

Loctite 609, 10ml

8 390 ₽
P

293800081 Loctite 5910, 300 ml

Loctite 5910, 300 ml

7 550 ₽
P

293800081 Loctite 5910, 300 ml

Loctite 5910, 300 ml

7 550 ₽
T

619600023 Grease, 400g

Grease, 400g

11 160 ₽
T

619600023 Grease, 400g

Grease, 400g

11 160 ₽
