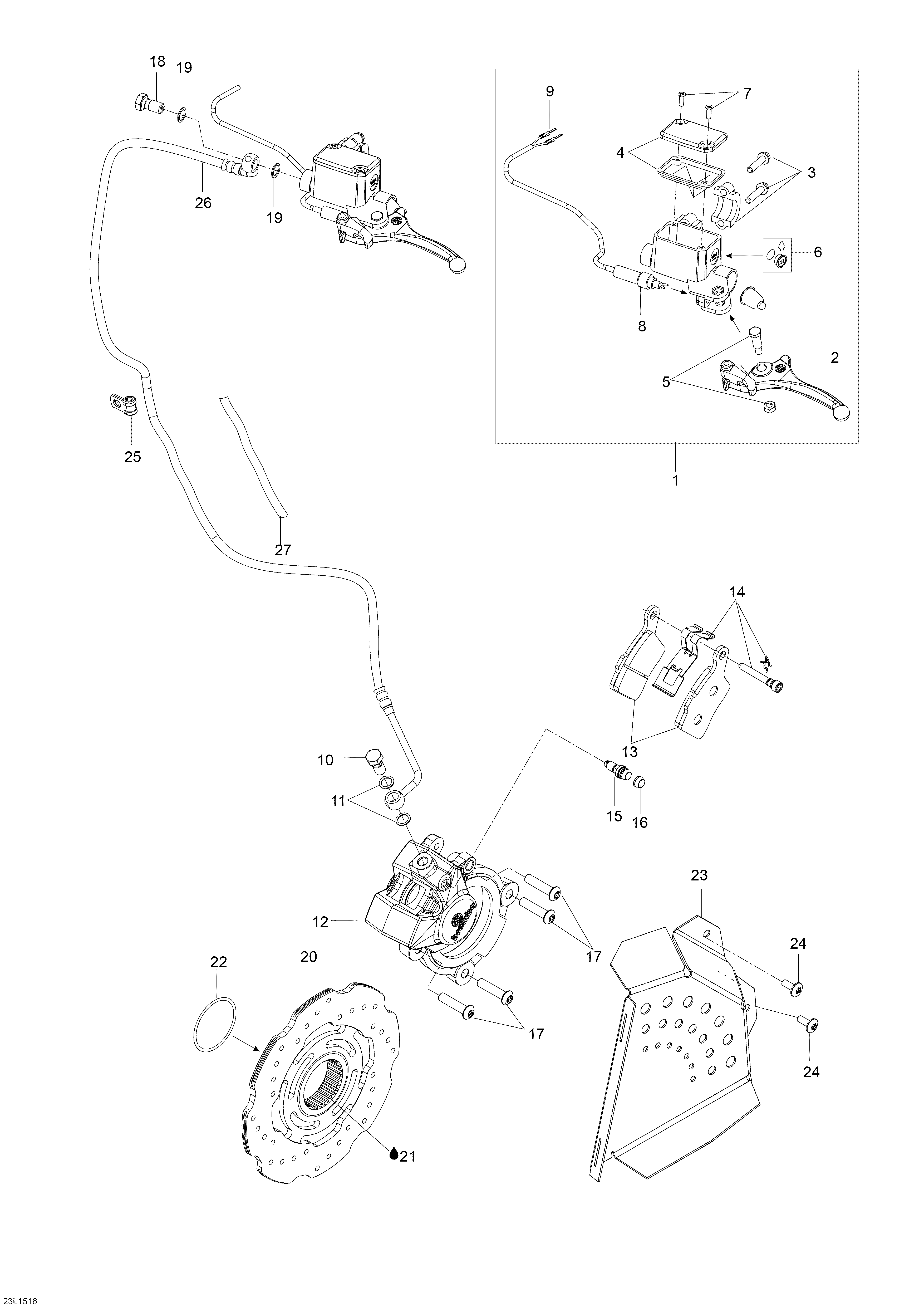

06- Hydraulic Brakes для BRP Lynx Xtrim Commander 600 E-TEC - 2015
-
№АртикулНазвание
-
1507032518 Cylinder Master Ass'yCylinder Master Ass'y
-
2507032476 LeverLever
-
3507032477 Clamp Ass'yClamp Ass'y
-
4507032478 CapCap
-
5415030000 Pin Ass'yPin Ass'y
-
7216141260 Screw M4 X 12Screw M4 X 12
-
8507032479 MicroswitchMicroswitch
-
9515175232 Male TerminalMale Terminal
-
10507032551 Banjo BoltBanjo Bolt
-
11705600310 WasherWasher
-
12507032498 Caliper Ass'yCaliper Ass'y
-
13507032473 Brake Pads KitBrake Pads Kit
-
14507032474 Kit, Pin, Clip, SpringKit, Pin, Clip, Spring
-
17250000301 Torx Screw M8 X 35, Scotch GripTorx Screw M8 X 35, Scotch Grip
-
18507032551 Banjo BoltBanjo Bolt
-
19705600310 WasherWasher
-
20507032513 DiskDisk
-
21293800070 Loctite antiseizeLoctite antiseize
-
22293300134 O-RingO-Ring
-
23507032537 Disk Protector, BlackDisk Protector, Black
-
24250000717 Torx Screw M6 X 16Torx Screw M6 X 16
-
25705600459 ClampClamp
-
26507032548 HoseHose
-
27409901800 Tubing-isolatingTubing-isolating
