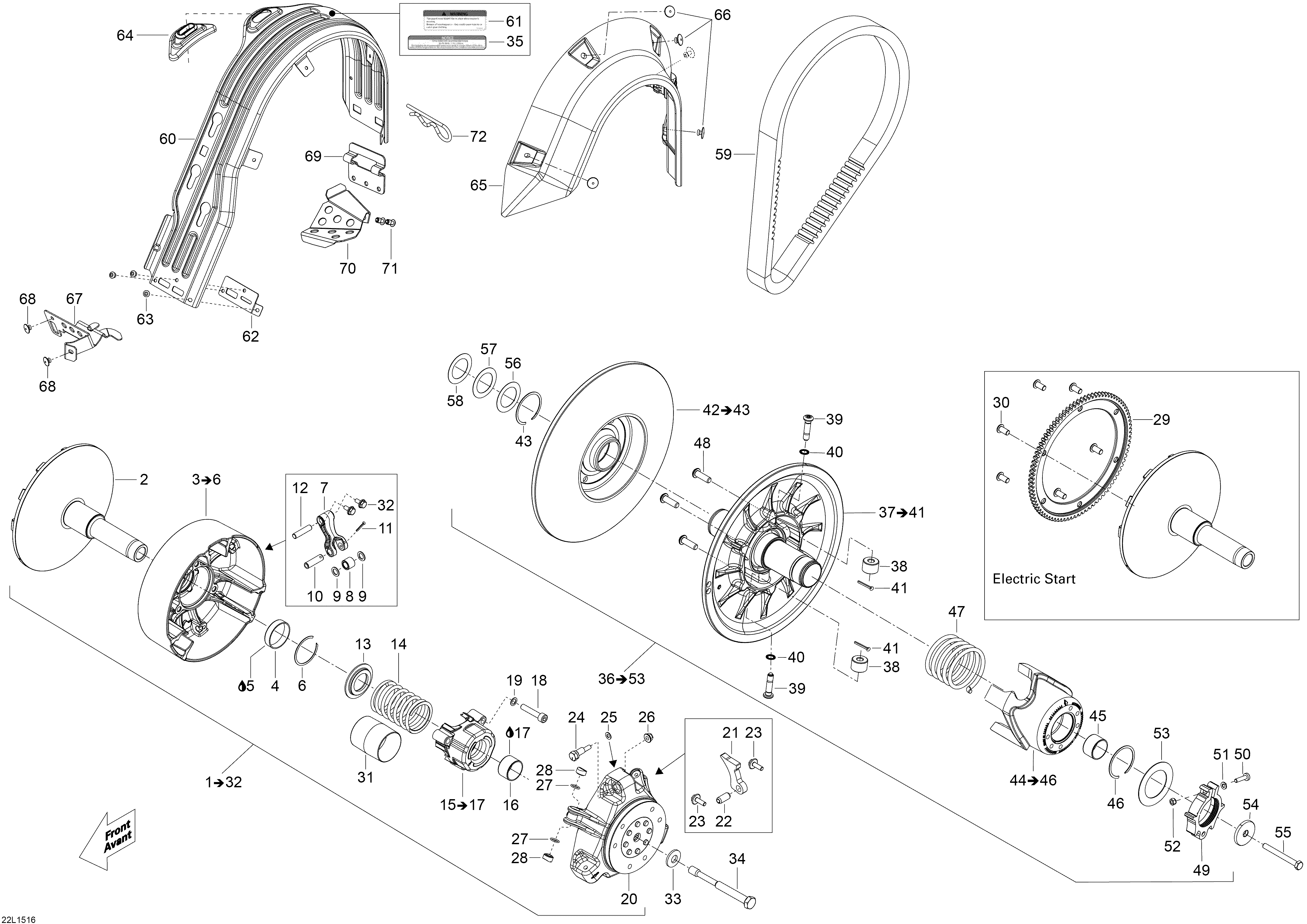

05- Pulley System для BRP Lynx Xtrim Commander 600 E-TEC - 2015
-
№АртикулНазвание
-
2417222937 Fixed Flange Ass'yFixed Flange Ass'y
-
3417222181 Sliding Flange Ass'y. Includes 3 To 6Sliding Flange Ass'y. Includes 3 To 6
-
4417222758 BushingBushing
-
5619600012 Loctite 609, 10mlLoctite 609, 10ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'yLever Ass'y
-
8417222947 Roller Ass'yRoller Ass'y
-
9417004302 Stopper WasherStopper Washer
-
10417222594 PinPin
-
11250400060 Cotter PinCotter Pin
-
12417223164 Lever AxleLever Axle
-
13417222312 Spring SeatSpring Seat
-
14414993000 Spring, Yellow-RedSpring, Yellow-Red
-
15417007500 Spring Cover Ass'y. Includes 15 To 17Spring Cover Ass'y. Includes 15 To 17
-
16417009204 BushingBushing
-
17619600012 Loctite 609, 10mlLoctite 609, 10ml
-
18205084044 Socket Head Screw M8 x 40Socket Head Screw M8 x 40
-
19250200009 Lock Washer 8mmLock Washer 8mm
-
20417223669 Governor Cup Ass'yGovernor Cup Ass'y
-
21417222444 Ramp 600Ramp 600
-
22250400050 Spring PinSpring Pin
-
23250000418 Hex. Flanged Scew M6 x 18Hex. Flanged Scew M6 x 18
-
24417223501 Calibration ScrewCalibration Screw
-
25417005600 WasherWasher
-
26233261414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
27732401030 O-RingO-Ring
-
28417223271 Slider ShoeSlider Shoe
-
29417223738 Ring GearRing Gear
-
30250000533 Torx Screw M8 x 16Torx Screw M8 x 16
-
31417009205 GuardGuard
-
32250000412 Serrated Hex. Flange Screw M6 x 12Serrated Hex. Flange Screw M6 x 12
-
33250200144 Spring WasherSpring Washer
-
34417120000 Drive Pulley BoltDrive Pulley Bolt
-
35516005503 Decal Notice, Drive Pulley BoltDecal Notice, Drive Pulley Bolt
-
37417127466 Fixed Flange Ass'y. Includes 37 To 41Fixed Flange Ass'y. Includes 37 To 41
-
38417127189 RollerRoller
-
39417127294 StudStud
-
40250200009 Lock Washer 8mmLock Washer 8mm
-
41250400063 Spring Pin M3 x 30Spring Pin M3 x 30
-
42417127366 Sliding Flange Ass'y. Includes 42 To 43Sliding Flange Ass'y. Includes 42 To 43
-
43293370049 CirclipCirclip
-
44417127411 Cam Ass'y (40?). Includes 44 To 46Cam Ass'y (40?). Includes 44 To 46
-
45417127318 BushingBushing
-
46293370049 CirclipCirclip
-
47417127243 Spring, WhiteSpring, White
-
48250000707 Torx Screw M8 x 25, Scotch GripTorx Screw M8 x 25, Scotch Grip
-
49415129604 Pulley Adjuster Ass'yPulley Adjuster Ass'y
-
50205052544 Socket Screw M5 x 25Socket Screw M5 x 25
-
51234051410 Flat Washer M5Flat Washer M5
-
52232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
53417127155 WasherWasher
-
54517302322 Strength WasherStrength Washer
-
55207287544 Hex. Cap Screw M8 x 75Hex. Cap Screw M8 x 75
-
56417300252 Spacer (1.91/2.21mm). (Adjustment Part, Use If Needed)Spacer (1.91/2.21mm). (Adjustment Part, Use If Needed)
-
57417300265 Spacer (0.91/1.12mm). (Adjustment Part, Use If Needed)Spacer (0.91/1.12mm). (Adjustment Part, Use If Needed)
-
58504112000 Shim. (Adjustment Part, Use If Needed)Shim. (Adjustment Part, Use If Needed)
-
59417300383 Drive BeltDrive Belt
-
60417300357 Belt GuardBelt Guard
-
61516006900 Security Label, Belt GuardSecurity Label, Belt Guard
-
62417300380 ReinforcementReinforcement
-
63390909200 RivetRivet
-
64417300381 GuideGuide
-
65417300356 Side ProtectorSide Protector
-
66293150103 Pop Rivet 3/16Pop Rivet 3/16
-
67417300363 Belt Guard BracketBelt Guard Bracket
-
68293150104 Pop Rivet 3/16Pop Rivet 3/16
-
69417300364 BracketBracket
-
70518325626 Brake Hose CoverBrake Hose Cover
-
71293150163 RivetRivet
-
72114045200 Hair PinHair Pin
