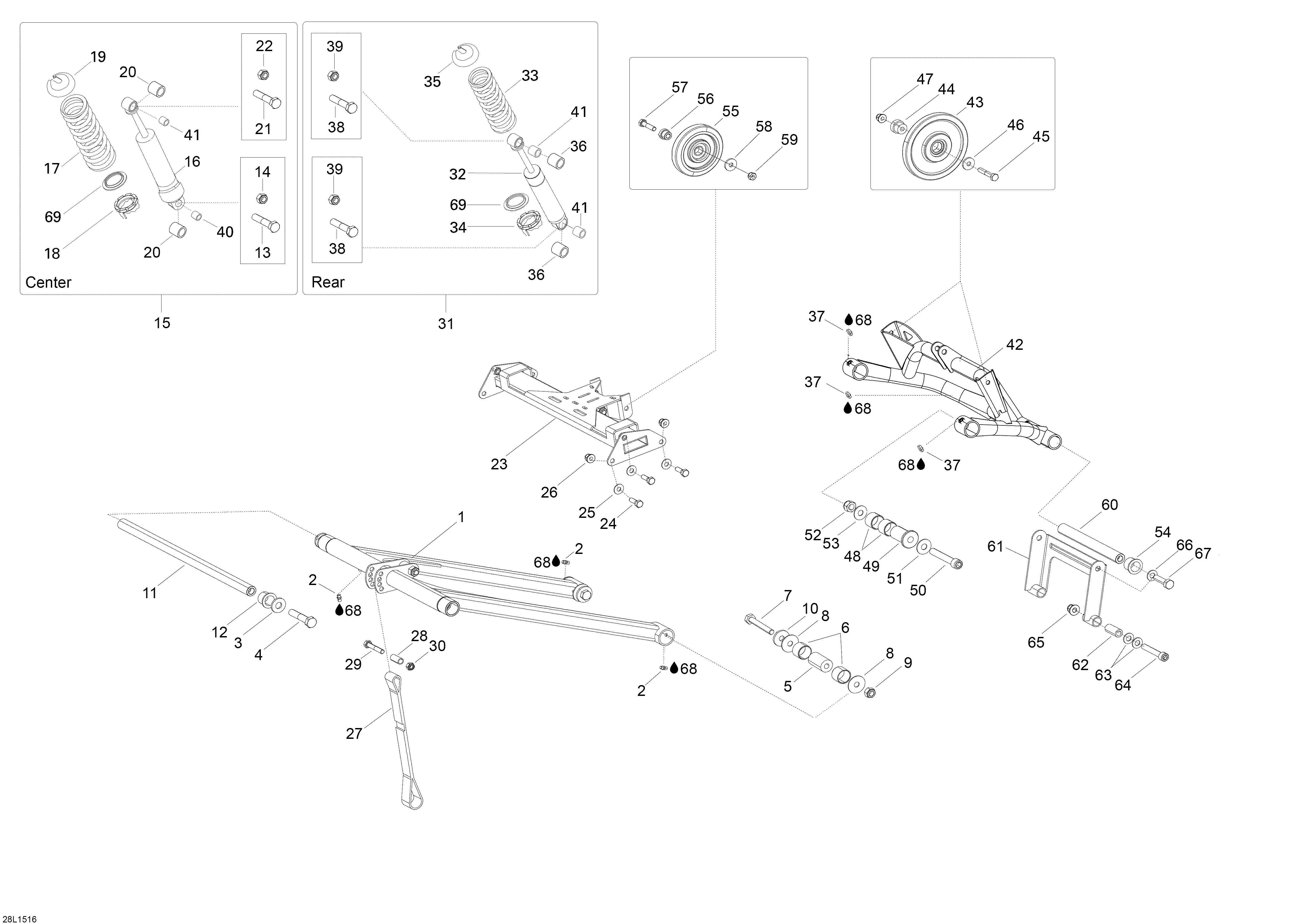

08- Rear Suspension для BRP Lynx Xtrim Commander 600 E-TEC - 2015
-
№АртикулНазвание
-
1503193092 Front ArmFront Arm
-
2408200700 Grease FittingGrease Fitting
-
3250200005 Washer Spring Conical M12Washer Spring Conical M12
-
440243 Screw Hex M12 X 60Screw Hex M12 X 60
-
5605354157 ShaftShaft
-
6503193700 BushingBushing
-
740021 Screw Hex M10 x 70Screw Hex M10 x 70
-
8605355801 WasherWasher
-
9232500416 Nut Stop Elastic M10Nut Stop Elastic M10
-
10503183300 WasherWasher
-
115347719 Upper ShaftUpper Shaft
-
1231024 CushionCushion
-
13250000549 Screw Hex M10 X 45Screw Hex M10 X 45
-
14232500416 Nut Stop Elastic M10Nut Stop Elastic M10
-
16503193517 ShockShock
-
17503191848 SpringSpring
-
18230078 CamCam
-
19230076 Spring SeatSpring Seat
-
2031094 Glide BearingGlide Bearing
-
2140016 Screw Hex M10 X 45Screw Hex M10 X 45
-
22232500416 Nut Stop Elastic M10Nut Stop Elastic M10
-
23503193769 Middle Beam ECSMiddle Beam ECS
-
24207182544 Screw Hex M8 X 25Screw Hex M8 X 25
-
25503192494 WasherWasher
-
26233281414 Nut Flange Elastic M8Nut Flange Elastic M8
-
27503193780 Limiter strapLimiter strap
-
28605455335 SleeveSleeve
-
29207084544 Screw Hex M8 X 45Screw Hex M8 X 45
-
30232581414 Nut Stop Elastic M8Nut Stop Elastic M8
-
32503193859 ShockShock
-
33605625009 SpringSpring
-
34230078 CamCam
-
35230076 Spring SeatSpring Seat
-
3631094 Glide BearingGlide Bearing
-
37408200700 Grease FittingGrease Fitting
-
3840134 Screw Socket M10 X 45Screw Socket M10 X 45
-
39232500416 Nut Stop Elastic M10Nut Stop Elastic M10
-
405446652 BushingBushing
-
415446652 BushingBushing
-
42503193868 Rear Arm WeldRear Arm Weld
-
43503193852 Idler Wheel 140mmIdler Wheel 140mm
-
44605454461 SleeveSleeve
-
45207084544 Screw hexScrew hex
-
4620077 WasherWasher
-
47233281414 Nut Flange Elastic M8Nut Flange Elastic M8
-
48503193700 BushingBushing
-
49605354157 ShaftShaft
-
50205006544 Screw Socket M10 X 65Screw Socket M10 X 65
-
51503189564 WasherWasher
-
52232500416 Nut Stop Elastic M10Nut Stop Elastic M10
-
53605355801 WasherWasher
-
5431024 CushionCushion
-
55572043500 Wheel IdlerWheel Idler
-
56503193330 SleeveSleeve
-
57207083544 Screw Hex M8 X 35Screw Hex M8 X 35
-
5820077 WasherWasher
-
59232581414 Nut Stop Elastic M8Nut Stop Elastic M8
-
60503192397 ShaftShaft
-
61503192346 Rear SwingRear Swing
-
62503192341 Rear Swing ShaftRear Swing Shaft
-
63234001410 Washer Flat M10Washer Flat M10
-
64205006044 Screw Socket M10 X 60Screw Socket M10 X 60
-
65233201414 Nut Flange ElasticNut Flange Elastic
-
66234001410 Washer Flat M10Washer Flat M10
-
67207204044 Screw Hex M10 X 45Screw Hex M10 X 45
-
68619590193 GreaseGrease
-
69230049 Spring guideSpring guide
