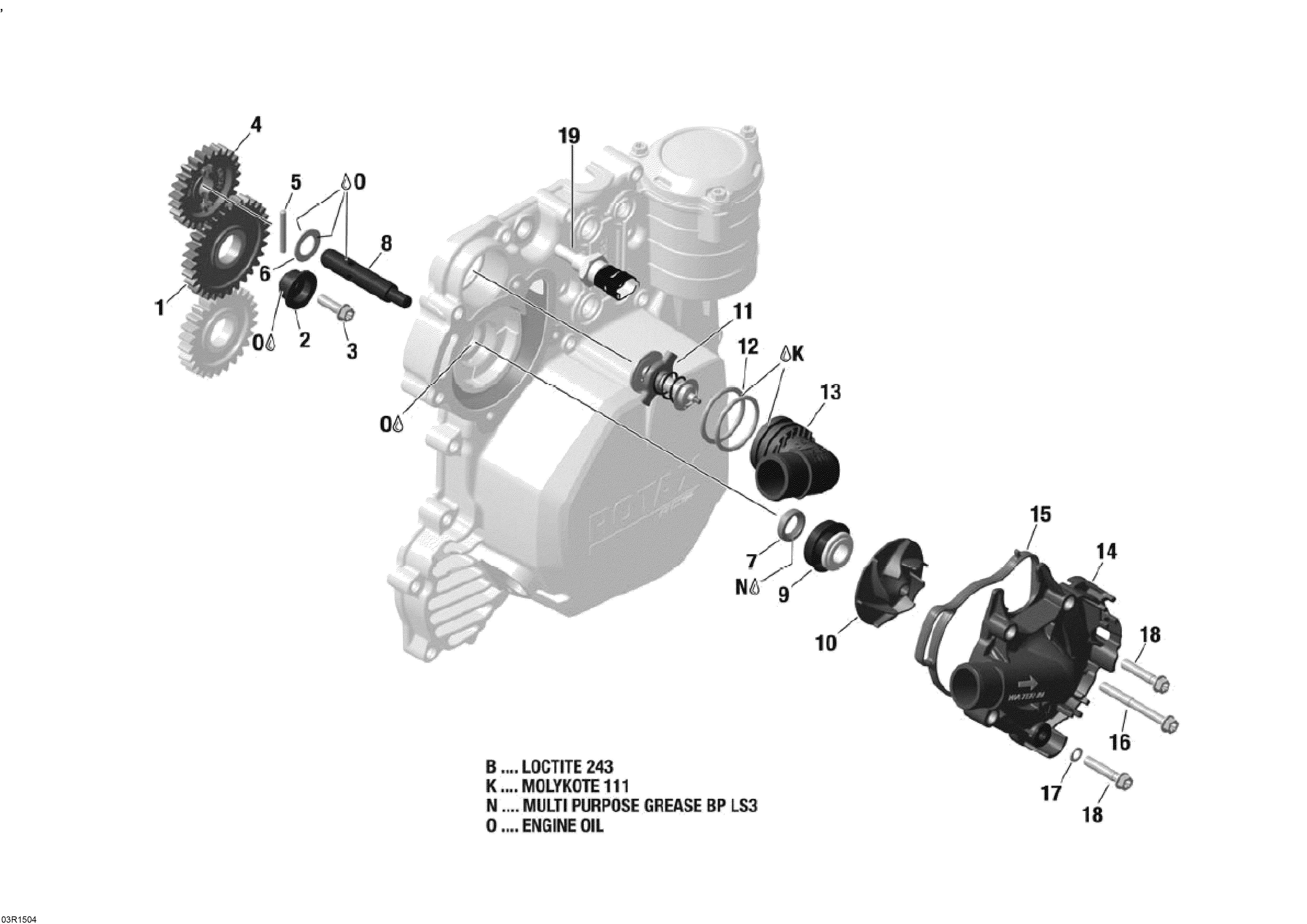

01- Engine Cooling для BRP Lynx 69 YETI 900 ACE - 2015

№

Артикул

Название
1

420835059 Intermediate Gear 31 T

Intermediate Gear 31 T

2 120 ₽
2

420947394 Graduated Spacer

Graduated Spacer

8 720 ₽
3

420440207 Hex./Torx Flange Screw M6 x 20. Tightening Torque 9 Nm +/- 12%

Hex./Torx Flange Screw M6 x 20. Tightening Torque 9 Nm +/- 12%

1 120 ₽
4

420835230 Waterpump Gear 25 T

Waterpump Gear 25 T

1 030 ₽
5

420232431 Needle Pin

Needle Pin

1 690 ₽
6

420827261 Thrust Washer

Thrust Washer

2 650 ₽
7

420931802 Oil Seal. Included In Gasket Kit

Oil Seal. Included In Gasket Kit

1 680 ₽
8

420820150 Waterpump Shaft

Waterpump Shaft

9 070 ₽
9

420850946 Rotary Seal. Included In Gasket Kit

Rotary Seal. Included In Gasket Kit

7 960 ₽
10

420222880 Impeller. Tightening Torque 9 Nm +/- 12%

Impeller. Tightening Torque 9 Nm +/- 12%

2 650 ₽
11

420822650 Thermostat 75 Degrees

Thermostat 75 Degrees

2 680 ₽
12

420950893 O Ring. Included In Gasket Kit

O Ring. Included In Gasket Kit

1 890 ₽
13

420922150 Thermostat Cover

Thermostat Cover

3 000 ₽
14

420922293 Water Pump Housing Ass'y. Includes 14 To 15

Water Pump Housing Ass'y. Includes 14 To 15

37 700 ₽
15

420431682 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

3 830 ₽
16

420440702 Torx Flange Screw M6 x 55. Tightening Torque 9 Nm +/- 12%

Torx Flange Screw M6 x 55. Tightening Torque 9 Nm +/- 12%

1 120 ₽
17

420230415 Sealing Ring. Included In Gasket Kit

Sealing Ring. Included In Gasket Kit

670 ₽
18

420440647 Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%

Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%

740 ₽
19

278002895 Temperature Sensor. Tightening Torque 16 Nm +/- 12%

Temperature Sensor. Tightening Torque 16 Nm +/- 12%

23 630 ₽
B

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
