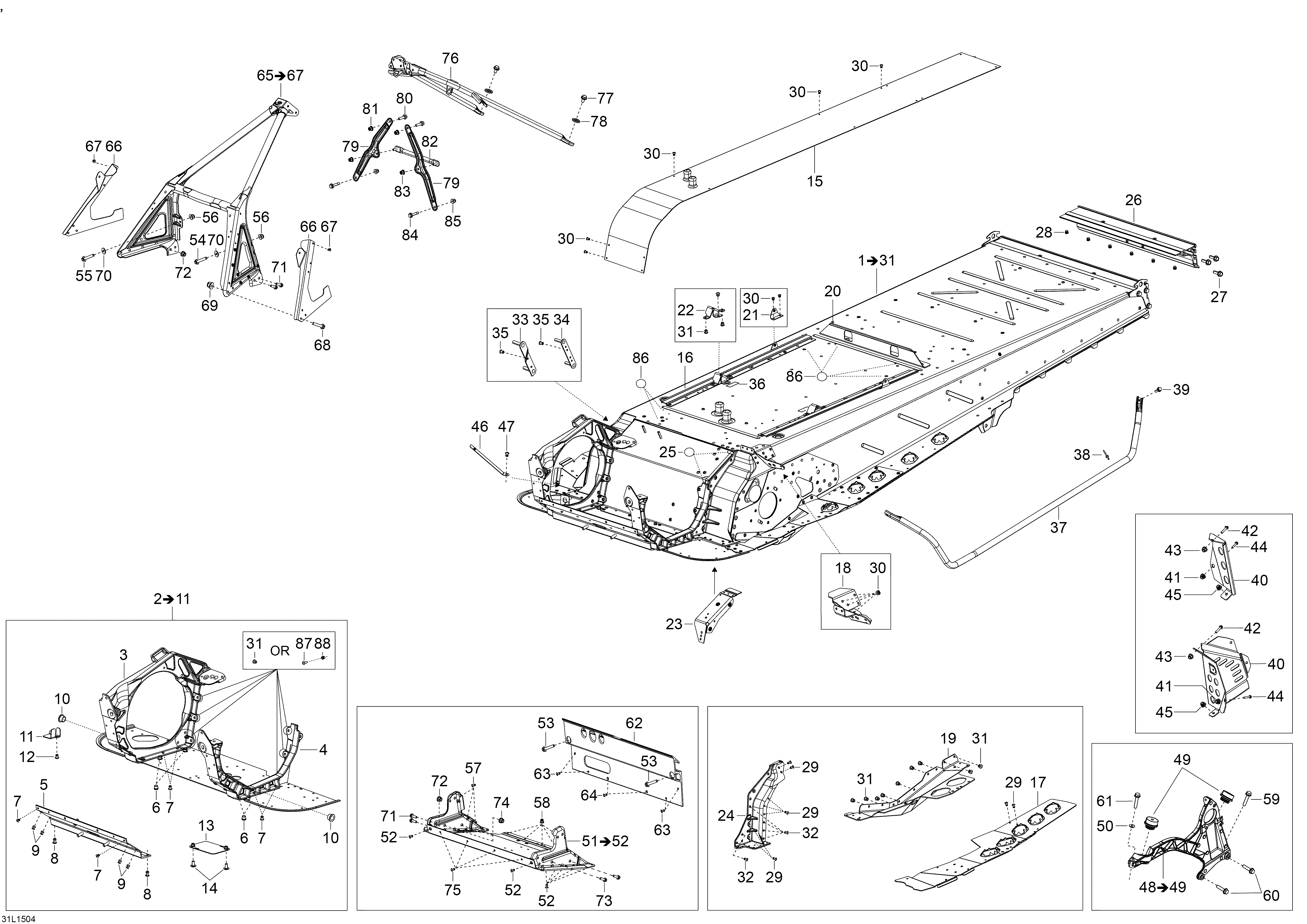

09- Frame для BRP Lynx 69 YETI 900 ACE - 2015
-
№АртикулНазвание
-
1518328211 Black Frame. Includes 1 To 31Black Frame. Includes 1 To 31
-
2518328188 Module E. Includes 2 To 11Module E. Includes 2 To 11
-
3518326328 RH MemberRH Member
-
4518326330 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6605636002 Clinch Nut M8Clinch Nut M8
-
7390909100 RivetRivet
-
8293150120 RivetRivet
-
9293150119 RivetRivet
-
10505072690 BushingBushing
-
11518327983 Muffler SupportMuffler Support
-
12293150163 RivetRivet
-
13518328317 Oil PlateOil Plate
-
14250000325 Torx Truss Screw M6 x 12Torx Truss Screw M6 x 12
-
15509000867 Tunnel RadiatorTunnel Radiator
-
16518326107 Fastening RailFastening Rail
-
17518328358 LH FootrestLH Footrest
-
17518328359 RH FootrestRH Footrest
-
18518327884 Fastening BracketFastening Bracket
-
20518327003 Battery SupportBattery Support
-
21518327457 Seat Box BracketSeat Box Bracket
-
22518326109 LH Support Tube BracketLH Support Tube Bracket
-
22518326110 RH Support Tube BracketRH Support Tube Bracket
-
23518328096 Clinch Nut PlateClinch Nut Plate
-
24518325643 LH Frame CornerLH Frame Corner
-
24518325644 RH Frame CornerRH Frame Corner
-
25518325560 Adhesive PatchAdhesive Patch
-
26518325645 Rear ProfileRear Profile
-
27207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
28293150174 RivetRivet
-
29390909100 RivetRivet
-
30390909200 RivetRivet
-
31293150119 RivetRivet
-
32293150183 RivetRivet
-
33518326123 Front Gearbox Counter PlateFront Gearbox Counter Plate
-
34518326124 Rear Gearbox Counter PlateRear Gearbox Counter Plate
-
35390402200 Pop Rivet 3/16Pop Rivet 3/16
-
36518326357 Rubber CoverRubber Cover
-
37518327595 LH Footboard Support TubeLH Footboard Support Tube
-
37518327596 RH Footboard Support TubeRH Footboard Support Tube
-
38390909100 RivetRivet
-
39207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
40518328568 Black LH Toe HookBlack LH Toe Hook
-
40518328571 Black RH Toe HookBlack RH Toe Hook
-
41605636003 Clinch Nut M6Clinch Nut M6
-
42207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
43233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
44250000223 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
45233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
46514054828 Spring BracketSpring Bracket
-
47390909200 RivetRivet
-
48518327535 LH Brace Ass'y. Includes 48 To 49LH Brace Ass'y. Includes 48 To 49
-
49512060295 Rubber MountRubber Mount
-
50234281474 Washer-Spring ConicalWasher-Spring Conical
-
51518326213 Cross member. Includes 51 To 52Cross member. Includes 51 To 52
-
52390909200 RivetRivet
-
53210262080 Forming Screw M6 x 20Forming Screw M6 x 20
-
54207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
55207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
56233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
57390909100 RivetRivet
-
58390909200 RivetRivet
-
59207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
60207583586 Hex. Flange Screw M8 x 35Hex. Flange Screw M8 x 35
-
61207584044 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
62518326140 Engine SupportEngine Support
-
63390909100 RivetRivet
-
64293150119 RivetRivet
-
65518327004 Front Member Ass'y. Includes 65 To 67Front Member Ass'y. Includes 65 To 67
-
66502007077 LH Bumper FastenerLH Bumper Fastener
-
66502007078 RH Bumper FastenerRH Bumper Fastener
-
67390909200 RivetRivet
-
68207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
69233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
70224061201 Flat WasherFlat Washer
-
71207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
72233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
73207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
74233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
75390909200 RivetRivet
-
76518326103 Upper Support TubeUpper Support Tube
-
77207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
79518326848 Upper ColumnUpper Column
-
80207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
81233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
82518326355 Upper ColumnUpper Column
-
83233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
84207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
85233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
86518325560 Adhesive PatchAdhesive Patch
-
87207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
88233261414 Elastic Flange Nut M6Elastic Flange Nut M6
