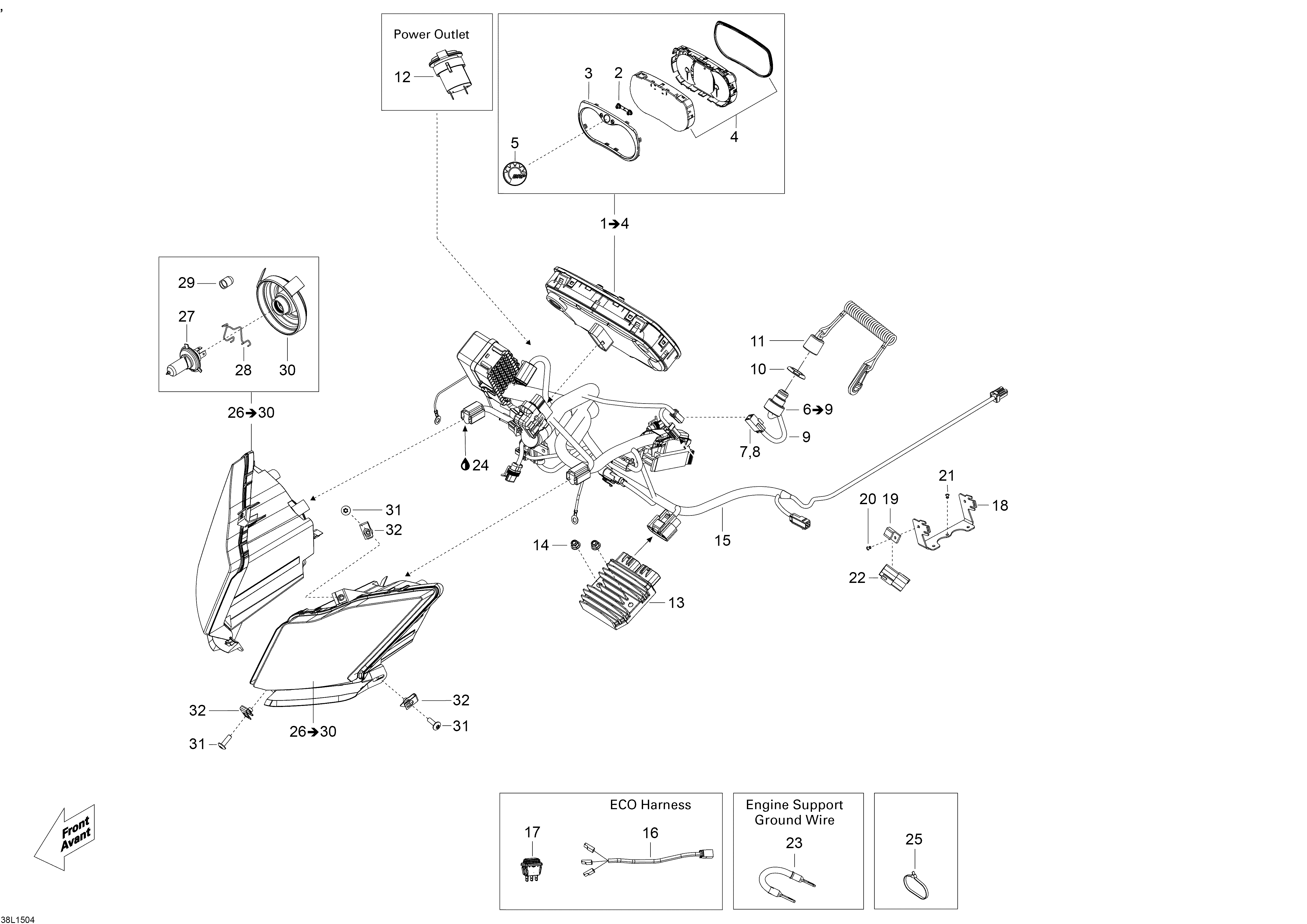

10- Electrical System для BRP Lynx 69 YETI 900 ACE - 2015
-
№АртикулНазвание
-
1515177845 Speedometer Ass'y. Includes 1 To 4Speedometer Ass'y. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 Lens And SealLens And Seal
-
5219902677 BRP LogoBRP Logo
-
6515177249 Dess Switch. Includes 6 To 9Dess Switch. Includes 6 To 9
-
7515175232 Male TerminalMale Terminal
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9409902000 Tubing 12mmTubing 12mm
-
10278002963 Safety Switch NutSafety Switch Nut
-
11515177057 DESS CapDESS Cap
-
11860200907 DESS Cap (Learning Key)DESS Cap (Learning Key)
-
12710001248 DC Power OutletDC Power Outlet
-
13515177325 RegulatorRegulator
-
14233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
15515177482 Main HarnessMain Harness
-
16515177568 ECO HarnessECO Harness
-
17515177569 ECO Rocker SwitchECO Rocker Switch
-
18515177073 Fusebox SupportFusebox Support
-
19270000141 ClipClip
-
20293150037 RivetRivet
-
21390402200 Pop Rivet 3/16Pop Rivet 3/16
-
22515176234 Female Terminal HousingFemale Terminal Housing
-
23515176883 Ground WireGround Wire
-
24293550004 Dielectric GreaseDielectric Grease
-
25414115200 Tie Rap 180mmTie Rap 180mm
-
25293750001 Tie-Rap 94mmTie-Rap 94mm
-
25293750002 Tie-Rap 130mmTie-Rap 130mm
-
26517304194 RH Headlamp. Includes 26 To 30RH Headlamp. Includes 26 To 30
-
26517304195 LH Headlamp. Includes 26 To 30LH Headlamp. Includes 26 To 30
-
27515176274 Halogen Bulb, 60/55W, 12VHalogen Bulb, 60/55W, 12V
-
29515176498 CapCap
-
30515176499 CoverCover
-
31250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
32250100113 Panel Nut M6Panel Nut M6
