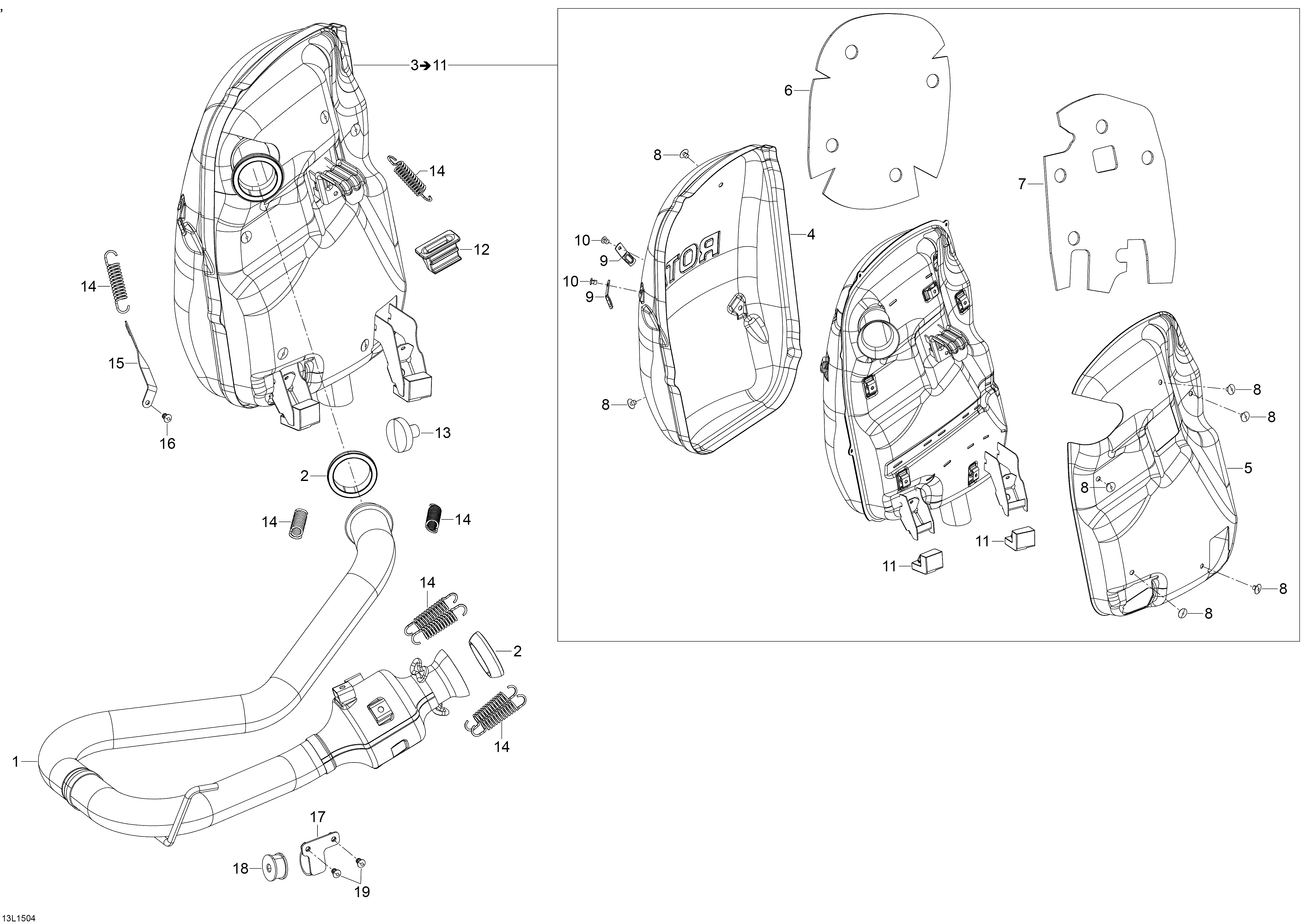

01- Exhaust System для BRP Lynx 69 YETI 900 ACE - 2015
-
№АртикулНазвание
-
1514055017 TubeTube
-
2707601033 GasketGasket
-
3514055129 Muffler Ass'y. Includes 3 To 11Muffler Ass'y. Includes 3 To 11
-
4514054644 RH Heat ShieldRH Heat Shield
-
5514055128 LH Heat ShieldLH Heat Shield
-
6514054769 RH Insulating WoolRH Insulating Wool
-
7514054881 LH Insulating WoolLH Insulating Wool
-
8390910000 Pop RivetPop Rivet
-
9514054522 Spring BracketSpring Bracket
-
10390909200 RivetRivet
-
11514054529 Lower StopperLower Stopper
-
12514054346 StopperStopper
-
13514053654 Rubber BumperRubber Bumper
-
14415107100 SpringSpring
-
15514055317 Spring BracketSpring Bracket
-
16390909100 RivetRivet
-
17514054939 SupportSupport
-
18707600702 RubberRubber
-
19207563544 Hex. Flange Screw M6 x 35Hex. Flange Screw M6 x 35
