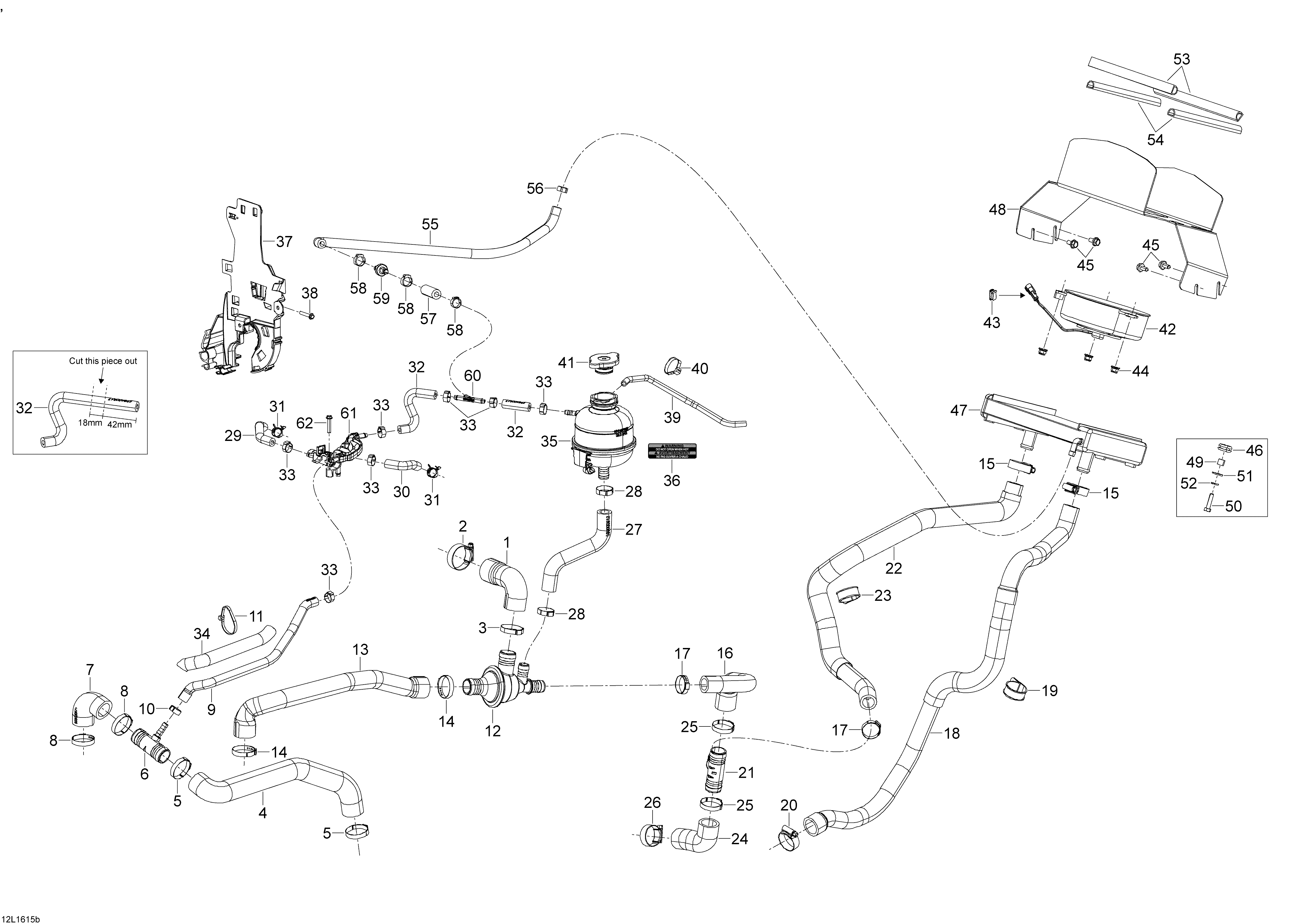

01- Cooling System (Air Radiator) для BRP Lynx BoonDocker (2-Stroke) - 2016
-
№АртикулНазвание
-
1509000678 Engine Outlet HoseEngine Outlet Hose
-
2509000443 Gear ClampGear Clamp
-
3509000529 Crimp ClampCrimp Clamp
-
4509000670 HoseHose
-
5509000529 Crimp ClampCrimp Clamp
-
6509000510 T-FittingT-Fitting
-
7509000671 HoseHose
-
8509000529 Crimp ClampCrimp Clamp
-
9509000906 Breather HoseBreather Hose
-
10293650047 Crimp ClampCrimp Clamp
-
11414115200 Tie Rap 188mmTie Rap 188mm
-
12509000499 Thermostat HousingThermostat Housing
-
13509000679 HoseHose
-
14509000529 Crimp ClampCrimp Clamp
-
15509000443 Gear ClampGear Clamp
-
16509000923 Bypass HoseBypass Hose
-
17293650099 Crimp ClampCrimp Clamp
-
18509000926 HoseHose
-
1927011 ClampClamp
-
20509000443 Gear ClampGear Clamp
-
21509000372 T-FittingT-Fitting
-
22509000927 HoseHose
-
2327011 ClampClamp
-
24509000924 Engine Inlet Hose. Model-600 E-TECEngine Inlet Hose. Model-600 E-TEC
-
24509000925 Engine Inlet Hose. Model-800 E-TECEngine Inlet Hose. Model-800 E-TEC
-
25509000181 Crimp ClampCrimp Clamp
-
26509000443 Gear ClampGear Clamp
-
27509000812 Filling HoseFilling Hose
-
28509000442 Crimp ClampCrimp Clamp
-
29509000818 HoseHose
-
30509000819 HoseHose
-
31293650170 Gear ClampGear Clamp
-
32509000817 HoseHose
-
33293650046 Crimp ClampCrimp Clamp
-
34415080000 Protector TubeProtector Tube
-
35509000802 Coolant TankCoolant Tank
-
36516005904 DecalDecal
-
37509000973 Tank SupportTank Support
-
38241152540 Hex. Flange Screw K50 x 25Hex. Flange Screw K50 x 25
-
39276000048 HoseHose
-
40414115200 Tie Rap 188mmTie Rap 188mm
-
41509000180 Pressure CapPressure Cap
-
42509000837 Cooling FanCooling Fan
-
43710000992 ClipClip
-
44233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
45207661244 Hex. Flange Screw M6 x 12Hex. Flange Screw M6 x 12
-
46709000582 GrommetGrommet
-
47509000756 RadiatorRadiator
-
48509000922 Radiator SupportRadiator Support
-
49605453745 BushingBushing
-
50207162044 Hex. Cap Screw M6 x 20Hex. Cap Screw M6 x 20
-
51234062410 Flat WasherFlat Washer
-
52234161431 Lock WasherLock Washer
-
53509000823 D-Seal 12 x 15D-Seal 12 x 15
-
54509000824 D-Seal 12 x 15D-Seal 12 x 15
-
55509000407 HoseHose
-
56293650140 Crimp ClampCrimp Clamp
-
57509000407 HoseHose
-
58293650140 Crimp ClampCrimp Clamp
-
59509000153 Check ValveCheck Valve
-
60293710140 Y-ConnectorY-Connector
-
61509000803 CollectorCollector
-
62241152540 Hex. Flange Screw K50 x 25Hex. Flange Screw K50 x 25
