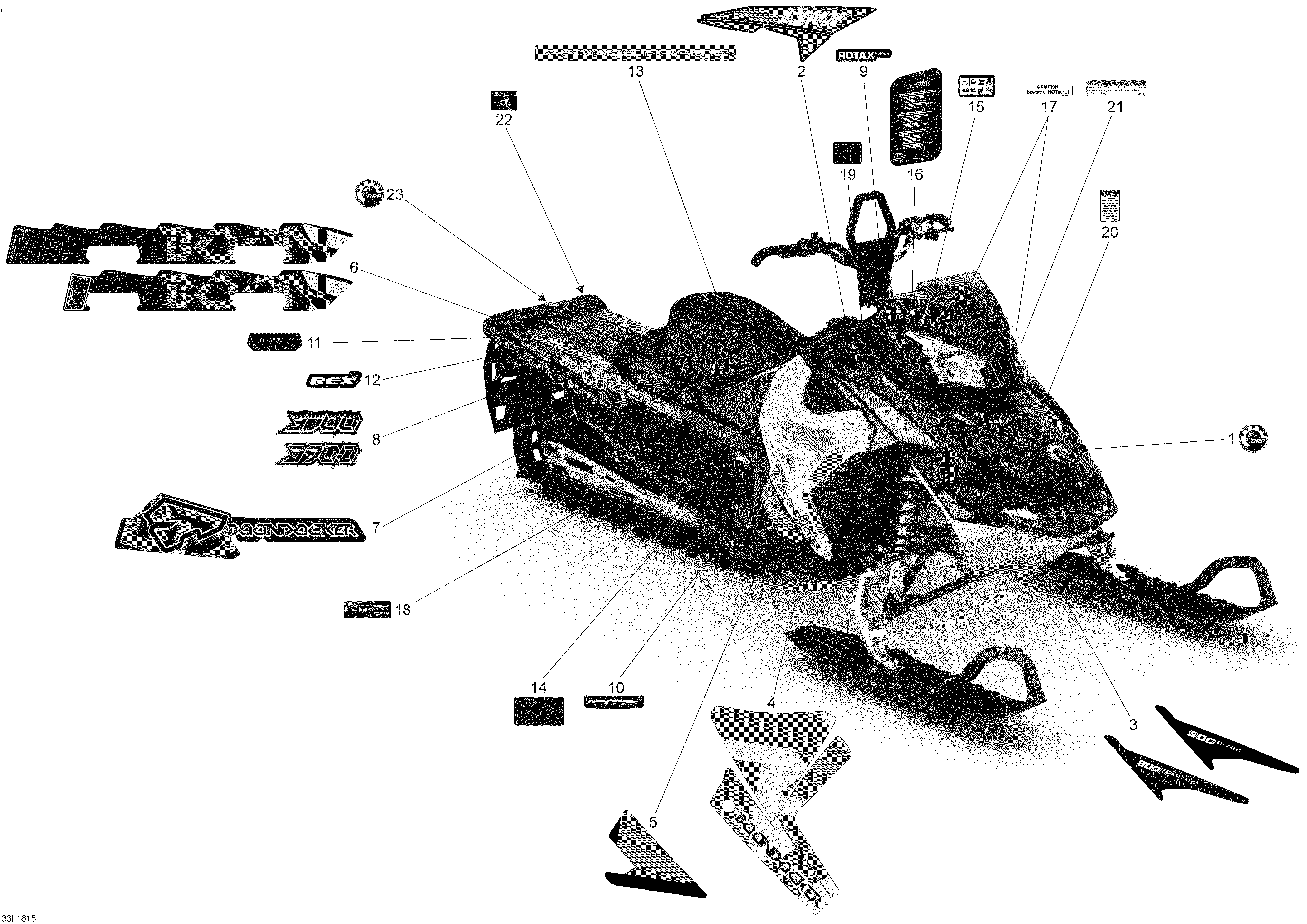

09- Decals для BRP Lynx BoonDocker (2-Stroke) - 2016
-
№АртикулНазвание
-
1516006888 BRP LogoBRP Logo
-
2516007042 LH Side Panel DecalLH Side Panel Decal
-
2516007043 RH Side Panel DecalRH Side Panel Decal
-
3516007044 LH Hood Decal. Model-600 E-TECLH Hood Decal. Model-600 E-TEC
-
3516007046 LH Hood Decal. Model-800 E-TECLH Hood Decal. Model-800 E-TEC
-
3516007045 RH Hood Decal. Model-600 E-TECRH Hood Decal. Model-600 E-TEC
-
3516007047 RH Hood Decal. Model-800 E-TECRH Hood Decal. Model-800 E-TEC
-
4516007051 LH Side Panel DecalLH Side Panel Decal
-
4516007052 RH Side Panel DecalRH Side Panel Decal
-
5516007057 LH Side Panel DecalLH Side Panel Decal
-
5516007058 RH Side Panel DecalRH Side Panel Decal
-
6516007065 LH Tunnel Decal. Model-3700LH Tunnel Decal. Model-3700
-
6516007067 LH Tunnel Decal. Model-3900LH Tunnel Decal. Model-3900
-
6516007066 RH Tunnel Decal. Model-3700RH Tunnel Decal. Model-3700
-
6516007068 RH Tunnel Decal. Model-3900RH Tunnel Decal. Model-3900
-
7516007061 LH Tunnel DecalLH Tunnel Decal
-
7516007062 RH Tunnel DecalRH Tunnel Decal
-
8516007063 Tunnel Decal. Model-3700Tunnel Decal. Model-3700
-
8516007064 Tunnel Decal. Model-3900Tunnel Decal. Model-3900
-
9516006331 Rotax Power DecalRotax Power Decal
-
10516006805 PPS DecalPPS Decal
-
11516006485 LinkQ DecalLinkQ Decal
-
12516006392 REX2 Platform DecalREX2 Platform Decal
-
13516007060 A-Force Frame DecalA-Force Frame Decal
-
145447012 Oil Checking DecalOil Checking Decal
-
15516003919 Warning DecalWarning Decal
-
16516004607 Instruction/Warning Decal (FI/SWE/EN)Instruction/Warning Decal (FI/SWE/EN)
-
17516006903 Hot Parts DecalHot Parts Decal
-
18516007589 Track Tension DecalTrack Tension Decal
-
19516006361 Console Buttonhole Cover DecalConsole Buttonhole Cover Decal
-
20516005583 Inject. DecalInject. Decal
-
21516006900 Driven Pulley Shield Warning DecalDriven Pulley Shield Warning Decal
-
22516007584 Rotating Track Warning DecalRotating Track Warning Decal
-
23516006887 BRP LogoBRP Logo
