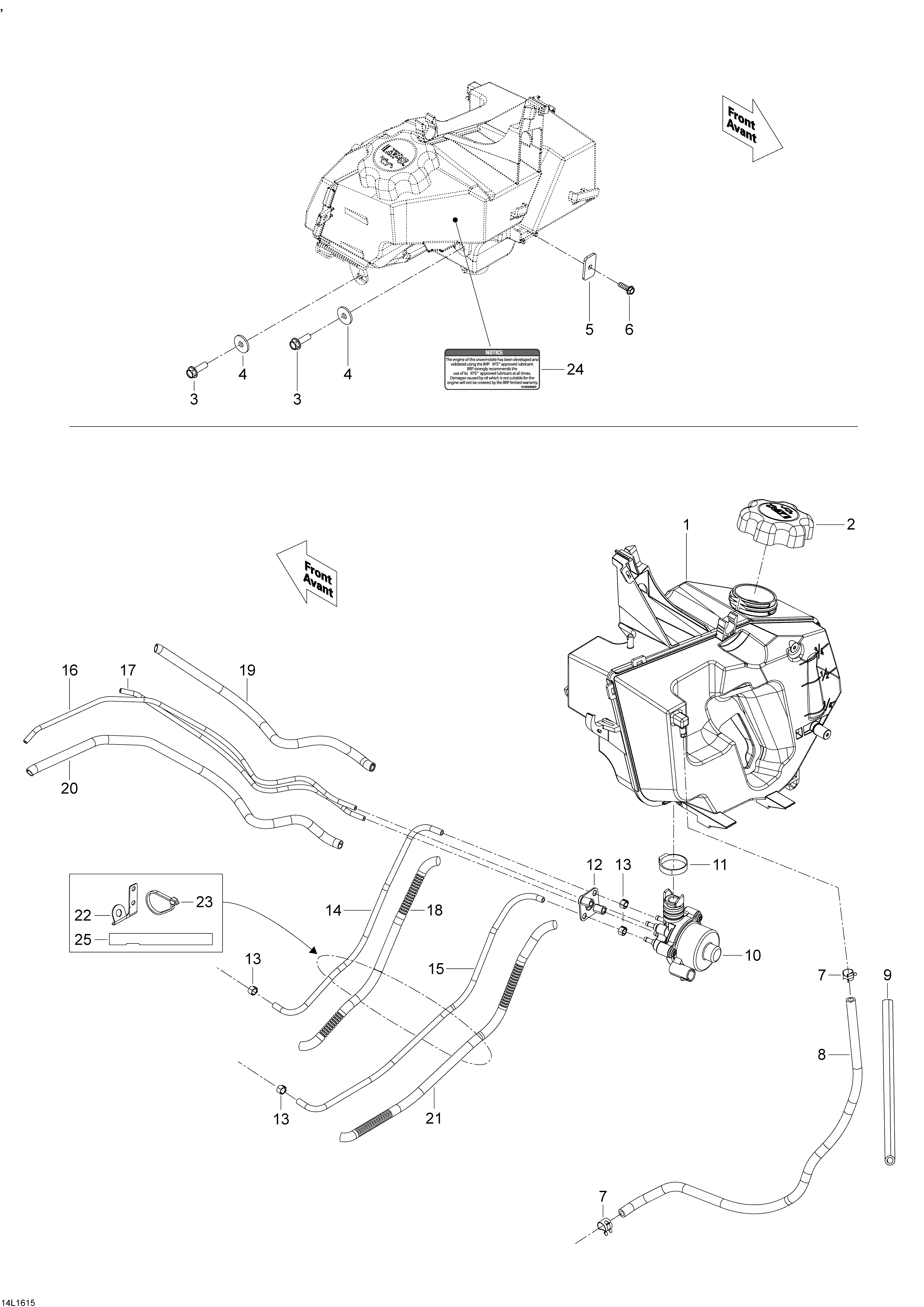

02- Oil System для BRP Lynx BoonDocker (2-Stroke) - 2016
-
№АртикулНазвание
-
1519000311 Oil TankOil Tank
-
2519000273 CapCap
-
3250000768 Hex. Flange Forming Screw M6 x 20Hex. Flange Forming Screw M6 x 20
-
4224061201 Flat WasherFlat Washer
-
5519000179 BracketBracket
-
6241151640 Hex. Flange Screw K50 x 16Hex. Flange Screw K50 x 16
-
7414554800 Spring ClampSpring Clamp
-
8415080200 HoseHose
-
9415079900 Protector TubeProtector Tube
-
10519000305 Oil PumpOil Pump
-
11293650099 Crimp ClampCrimp Clamp
-
12519000271 BracketBracket
-
13293650100 ClampClamp
-
14519000182 HoseHose
-
15519000182 HoseHose
-
16519000184 HoseHose
-
17519000184 HoseHose
-
18515175442 Protector TubeProtector Tube
-
19515175442 Protector TubeProtector Tube
-
20515175442 Protector TubeProtector Tube
-
21515175442 Protector TubeProtector Tube
-
22519000245 BracketBracket
-
23293750002 Tie-Rap 142mmTie-Rap 142mm
-
24516006904 Warning DecalWarning Decal
-
25516004648 Protect DecalProtect Decal
