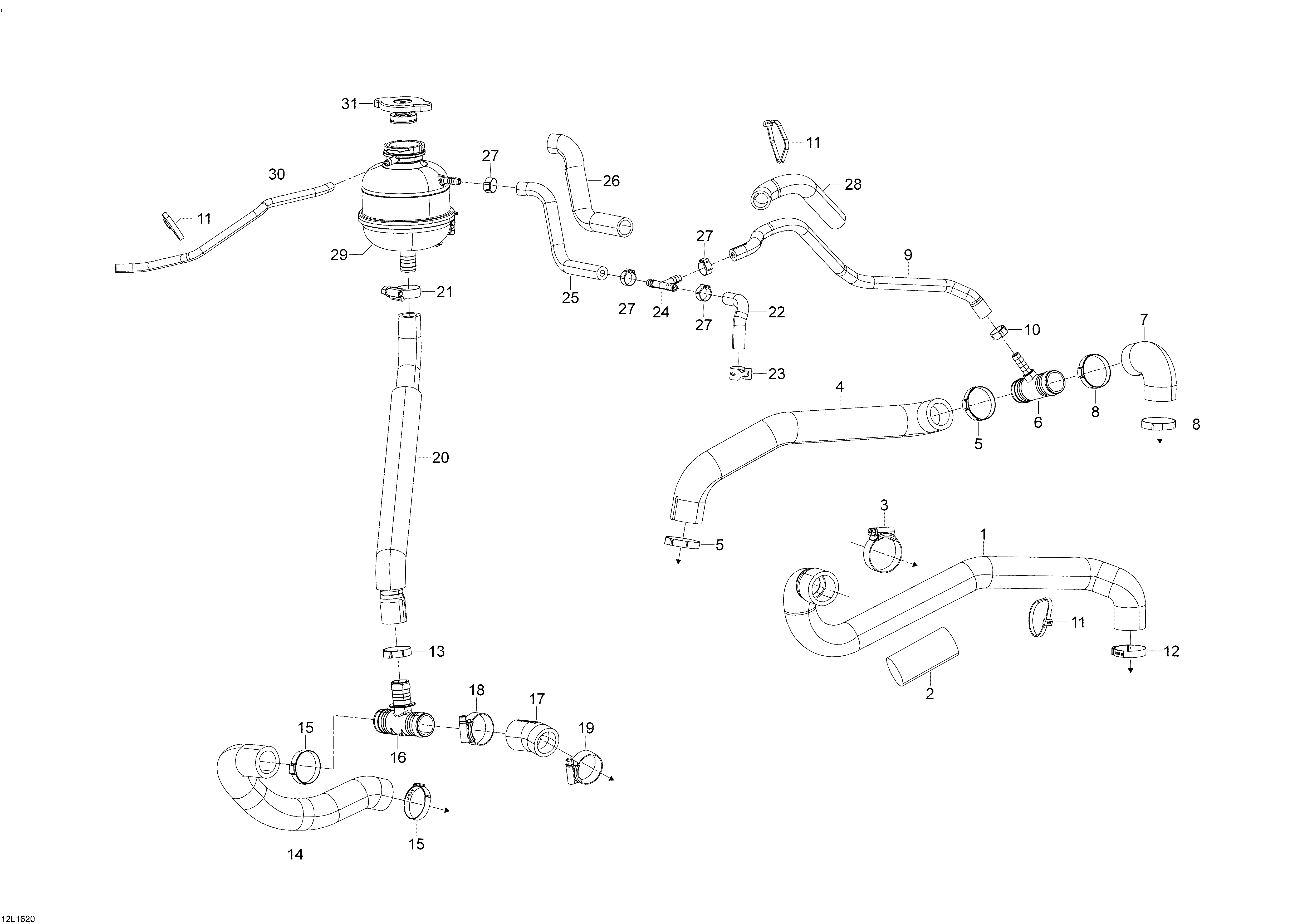

01- Cooling System для BRP Lynx Rave RS (2-Stroke) - 2016
-
№АртикулНазвание
-
1509000431 Engine Outlet HoseEngine Outlet Hose
-
2605356086 TubingTubing
-
3509000443 Gear ClampGear Clamp
-
4509000670 Radiator HoseRadiator Hose
-
5509000529 Crimp ClampCrimp Clamp
-
6509000510 T-FittingT-Fitting
-
7509000671 Radiator HoseRadiator Hose
-
8509000529 Crimp ClampCrimp Clamp
-
9509000905 Breather HoseBreather Hose
-
10293650047 Crimp ClampCrimp Clamp
-
11414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
12509000443 Gear ClampGear Clamp
-
13293650099 Crimp ClampCrimp Clamp
-
14509000673 Radiator HoseRadiator Hose
-
15509000443 Gear ClampGear Clamp
-
16509000372 T-FittingT-Fitting
-
17509000675 Radiator HoseRadiator Hose
-
18509000443 Gear ClampGear Clamp
-
19509000443 Gear ClampGear Clamp
-
20509000901 Filling HoseFilling Hose
-
21293650124 Gear ClampGear Clamp
-
22509000904 Breather HoseBreather Hose
-
23293650170 Hose ClampHose Clamp
-
24293710024 T-FittingT-Fitting
-
25509000902 Breather HoseBreather Hose
-
26415080000 Protector TubeProtector Tube
-
27293650046 Crimp ClampCrimp Clamp
-
28415080000 Protector TubeProtector Tube
-
29509000802 Coolant TankCoolant Tank
-
30276000048 Polyurethane HosePolyurethane Hose
-
31509000180 Pressure CapPressure Cap
