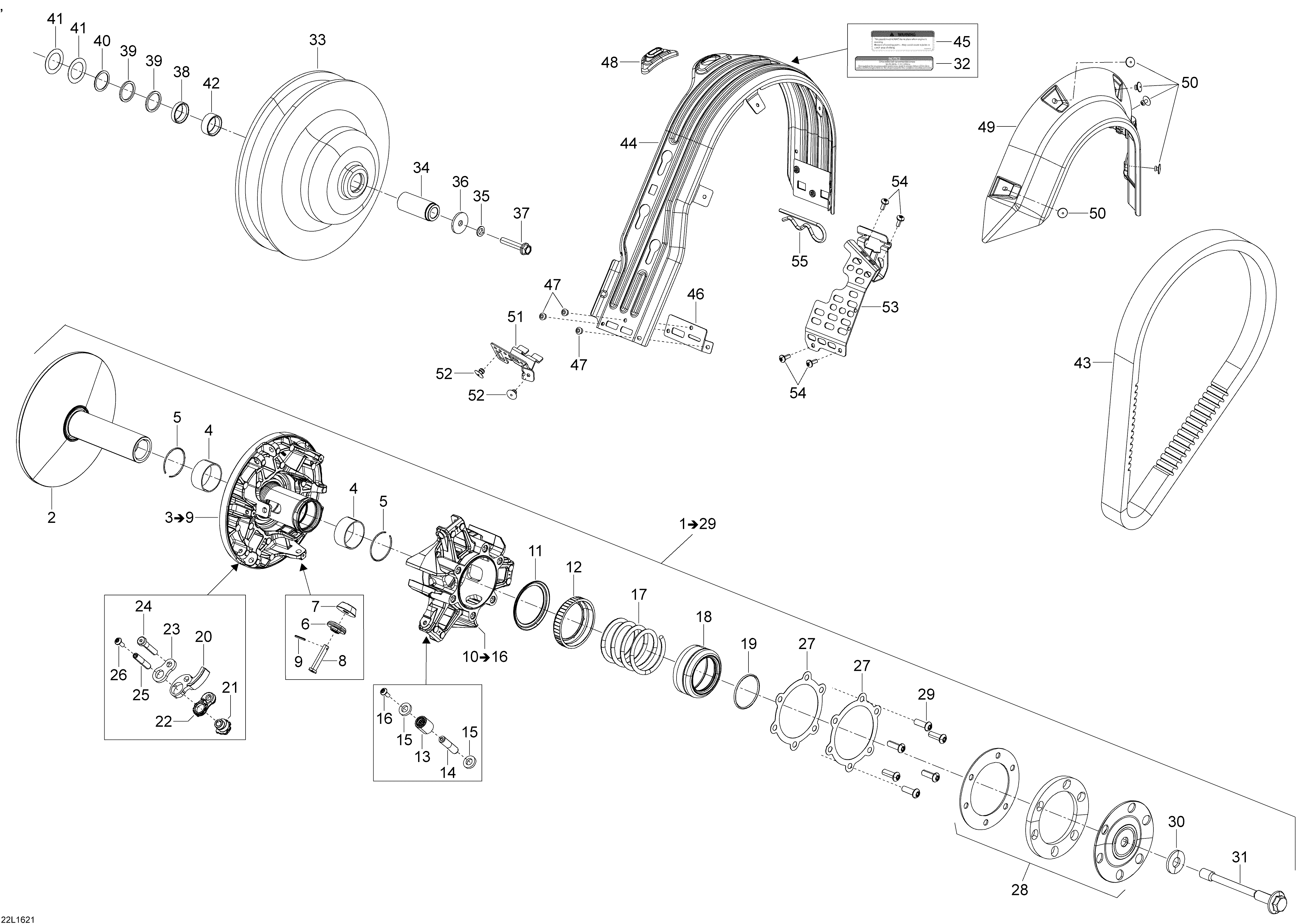

05- Pulley System для BRP Lynx Rave RS (2-Stroke) - 2016
-
№АртикулНазвание
-
1417224029 Drive Pulley Ass'y. Includes 1 To 29Drive Pulley Ass'y. Includes 1 To 29
-
2417224030 Fixed Flange Ass'yFixed Flange Ass'y
-
3417224118 Sliding Flange Ass'y. Includes 3 To 9Sliding Flange Ass'y. Includes 3 To 9
-
4293250389 BushingBushing
-
5293370117 CirclipCirclip
-
6417223991 Back-Torque RollerBack-Torque Roller
-
7417224034 Torque RollerTorque Roller
-
8417223992 AxleAxle
-
9250400074 Spring PinSpring Pin
-
10417224055 Spider Ass'y. Includes 10 To 16Spider Ass'y. Includes 10 To 16
-
12417224151 Spring StopperSpring Stopper
-
13417223808 Roller Ass'yRoller Ass'y
-
14417223989 AxleAxle
-
15417224009 WasherWasher
-
16250000763 Torx Truss Screw M5 x 14Torx Truss Screw M5 x 14
-
17417224111 Clutch Spring (200/380)Clutch Spring (200/380)
-
18417224003 Spring Seat Ass'ySpring Seat Ass'y
-
19293370116 CirclipCirclip
-
20417224112 Ramp (960)Ramp (960)
-
21417224113 Molded CamMolded Cam
-
22417224086 Right LeverRight Lever
-
23417224114 Left LeverLeft Lever
-
24417224117 Pivot 38mmPivot 38mm
-
25417223631 Ramp AxleRamp Axle
-
26250000763 Torx Truss Screw M5 x 14Torx Truss Screw M5 x 14
-
27417224060 ShimShim
-
28417223994 CushionCushion
-
29250000757 Button HD Torx Screw M8 x 25Button HD Torx Screw M8 x 25
-
30250200144 Conical Spring WasherConical Spring Washer
-
31417300493 Drive Pulley BoltDrive Pulley Bolt
-
32516005503 Drive Pulley Bolt DecalDrive Pulley Bolt Decal
-
33417127517 Driven Pulley Ass'yDriven Pulley Ass'y
-
34417127300 BushingBushing
-
3520072 WasherWasher
-
36503183100 WasherWasher
-
37207584544 Hex. Flange Screw M8 x 45Hex. Flange Screw M8 x 45
-
38504149100 Spacer (5,25 mm)Spacer (5,25 mm)
-
39417300252 Spacer (2,0 mm). (Adjustment Part, Use If Needed)Spacer (2,0 mm). (Adjustment Part, Use If Needed)
-
40417300265 Spacer (1,0 mm). (Adjustment Part, Use If Needed)Spacer (1,0 mm). (Adjustment Part, Use If Needed)
-
41504112000 Shim (0,5 mm). (Adjustment Part, Use If Needed)Shim (0,5 mm). (Adjustment Part, Use If Needed)
-
42417300399 Spacer (11,7 mm)Spacer (11,7 mm)
-
43417300288 Drive BeltDrive Belt
-
44860200362 Belt Guard Ass'yBelt Guard Ass'y
-
45516006900 Belt Guard Security LabelBelt Guard Security Label
-
46417300380 ReinforcementReinforcement
-
47390909200 Avex RivetAvex Rivet
-
48417300381 GrommetGrommet
-
49417300431 Side ProtectorSide Protector
-
50293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
51417300360 Belt Guard BracketBelt Guard Bracket
-
52293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
53417300448 Belt Guard BracketBelt Guard Bracket
-
54250000742 Torx Screw M5 x 14Torx Screw M5 x 14
-
55114045200 Hair PinHair Pin
