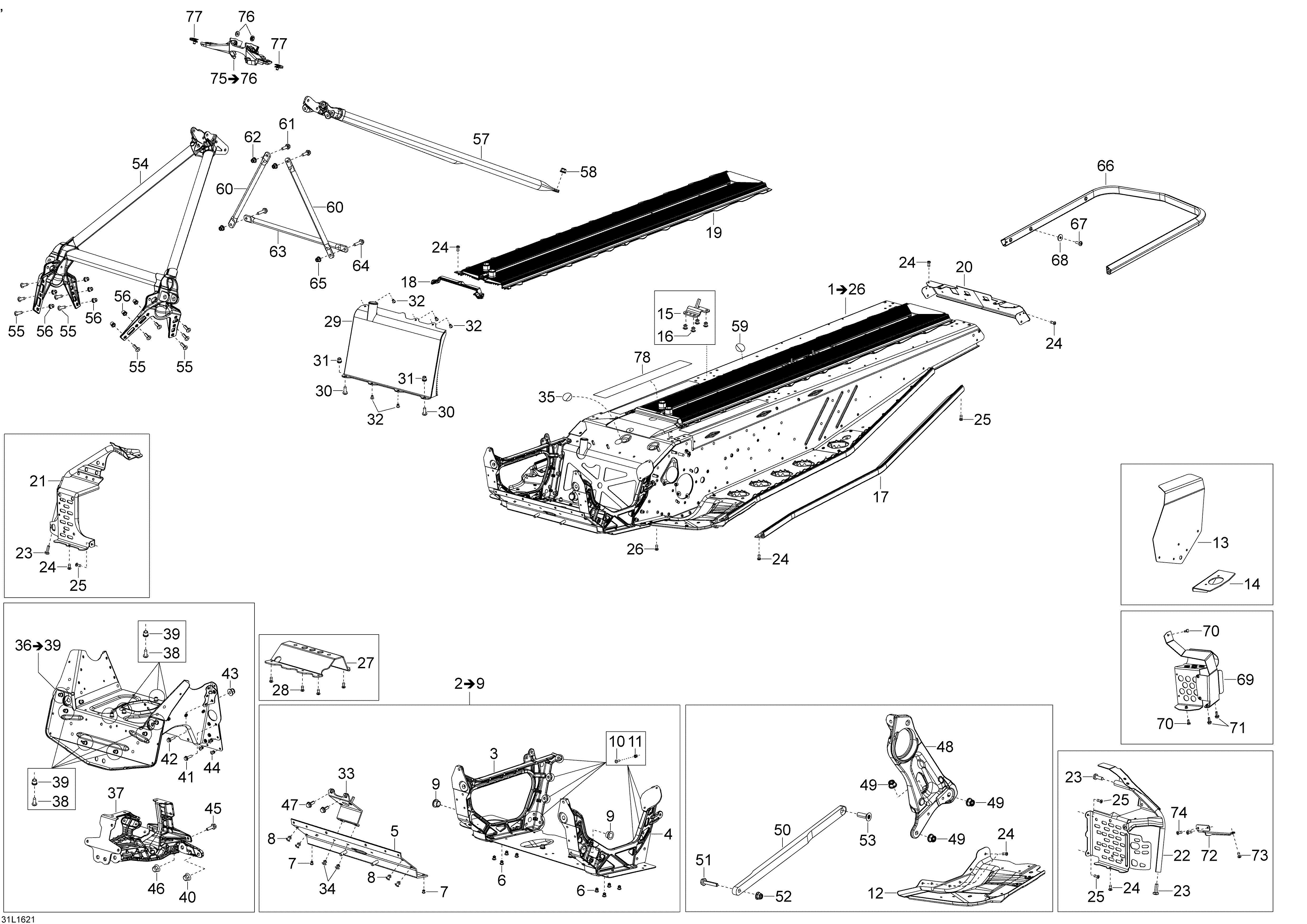

09- Frame для BRP Lynx Rave RS (2-Stroke) - 2016
-
№АртикулНазвание
-
1518328873 Red Frame. Includes 1 To 26Red Frame. Includes 1 To 26
-
2518327646 E Module. Includes 2 To 9E Module. Includes 2 To 9
-
3518326795 RH MemberRH Member
-
4518326796 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6390909100 RivetRivet
-
7293150120 RivetRivet
-
8293150119 RivetRivet
-
9505072690 CushionCushion
-
10207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
11233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
12518327242 LH Front TunnelLH Front Tunnel
-
12518327243 RH Front TunnelRH Front Tunnel
-
13518328234 LH Rear Arm SupportLH Rear Arm Support
-
13518328235 RH Rear Arm SupportRH Rear Arm Support
-
14518328236 Rear SupportRear Support
-
15518325973 RH Rear BaseRH Rear Base
-
15518325974 LH Rear BaseLH Rear Base
-
16293150119 RivetRivet
-
17518327517 LH Side ProfileLH Side Profile
-
17518327518 RH Side ProfileRH Side Profile
-
18518326656 SealSeal
-
19518326786 Rear RadiatorRear Radiator
-
20518327240 Rear CapRear Cap
-
21518328353 RH StirrupRH Stirrup
-
22518328354 LH StirrupLH Stirrup
-
23250000752 Pan HD Torx Screw M8 x 25Pan HD Torx Screw M8 x 25
-
24390909200 RivetRivet
-
25390909100 RivetRivet
-
26293150096 RivetRivet
-
27518327285 Engine SupportEngine Support
-
28390909200 RivetRivet
-
29518326485 Front RadiatorFront Radiator
-
30207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
31233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
32390909200 RivetRivet
-
33518325943 MAG SupportMAG Support
-
34293150119 RivetRivet
-
35518325560 Adhesive PatchAdhesive Patch
-
36518328551 Cross Member. Includes 36 To 39Cross Member. Includes 36 To 39
-
38207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
39233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
40233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
41210262050 Forming Screw M6 x 20Forming Screw M6 x 20
-
42207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
43233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
44293150179 RivetRivet
-
45207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
46233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
47207661644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
48518328346 Pulley SupportPulley Support
-
49233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
50518326118 LinkLink
-
51207563034 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
52233261414 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
53250000143 Torx Screw M8 x 25Torx Screw M8 x 25
-
54518327565 Front MemberFront Member
-
55207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
56233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
57518327237 Rear MemberRear Member
-
58233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
59518325560 Adhesive PatchAdhesive Patch
-
60518325114 SupportSupport
-
61207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
62233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
63518325115 Upper ColumnUpper Column
-
64207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
65233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
66518328071 Black Rear BumperBlack Rear Bumper
-
67250000779 Torx Truss Screw M6 x 18Torx Truss Screw M6 x 18
-
68224061201 Flat WasherFlat Washer
-
69518328258 Black LH FootrestBlack LH Footrest
-
69518328259 Black RH FootrestBlack RH Footrest
-
70207161244 Hex. Screw M6 x 12Hex. Screw M6 x 12
-
71207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
72518328079 Brake Cover SupportBrake Cover Support
-
73390909200 RivetRivet
-
74293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
75518327145 Support. Includes 75 To 76Support. Includes 75 To 76
-
77250000079 Panel Nut M5Panel Nut M5
-
78516006469 Fuel Tank Protection DecalFuel Tank Protection Decal
